HANG5 RACK INSTRUCTIONS

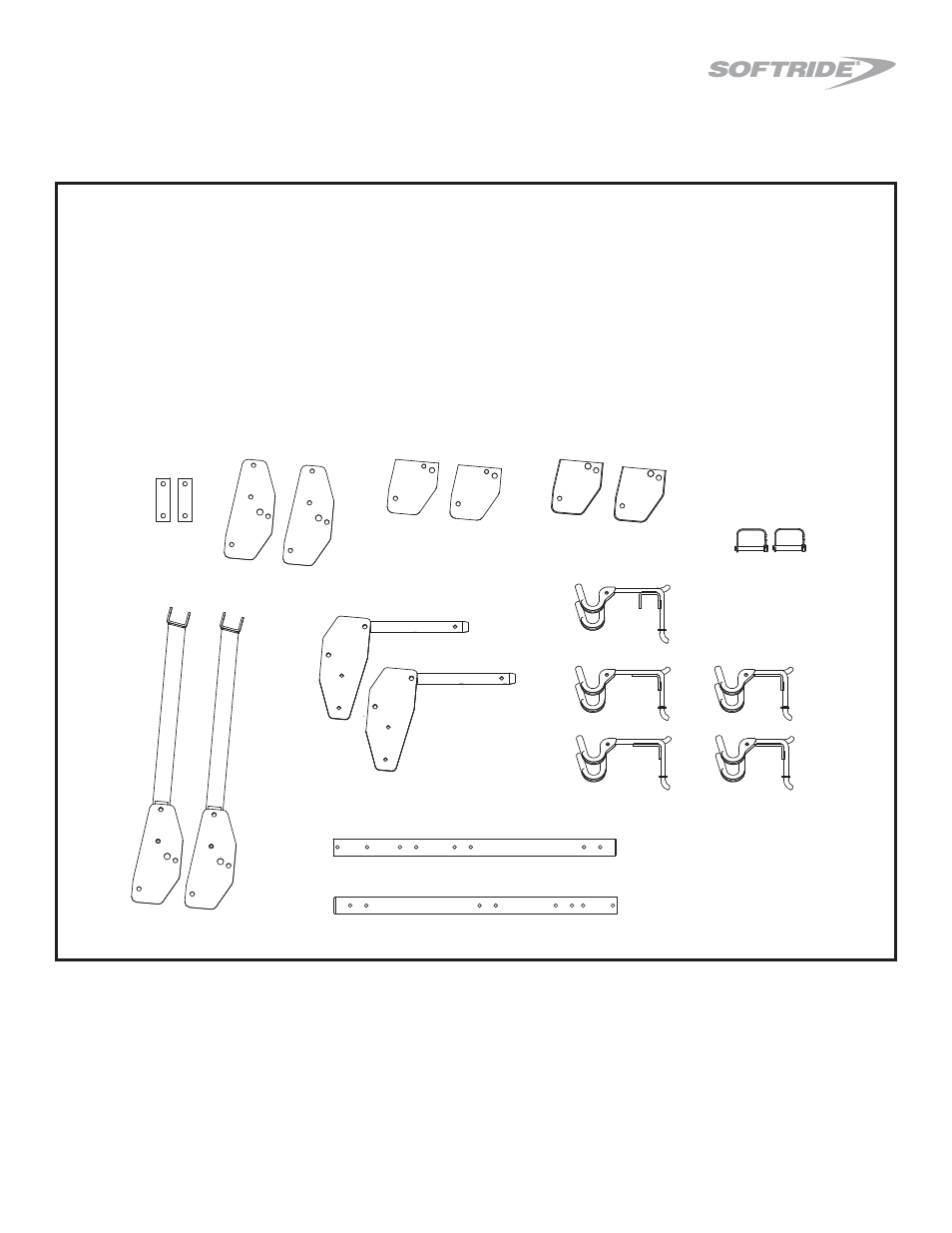

PARTS INCLUDED (continued)
BOX 2
(Hang5 Rack)
(2A)
(2B)
(2C)
(2D)
(2E)
(2F)
(2G) (2H)
(2I)
(2J)
(2K)
(2L) Inner Pivot Plates w/ 1” Top Plate Bar x2
Outer Pivot Plate w/ Vertical Hanger Support x2
Outer Pivot Plate w/out Vertical Hanger Attached x2
Plastic Anti-Friction Plate Left x2
(ships pre-assembled)
Plastic Anti-Friction Plate Right x2 (ships pre-assembled)
Hang Bar Right Side (ships with 2 hangers pre-assembled)
Hang Bar Left Side (ships with 3 hangers pre-assembled)
Hangers #2 and #4 (short reach) x2
Hangers #1 and #5 (long reach) x2
Hanger #3 (long reach) Center x1
Pivot Pin x2
2 Hole Metal Spacer x2
(2A) x 2
(2D) x 2
(2G)
(2J)
(2C) x 2
(2F)
(2I) x 2
(2L) x 2
(2B) x 2
(2E) x 2
(2H) x 2
(2K) x 2
2
