ASSEMBLY OF ACCESS RACK
HANG5 RACK INSTRUCTIONS
View a video on how to install this rack
Scan this code on a mobile device, or visit www.softride.com/H5

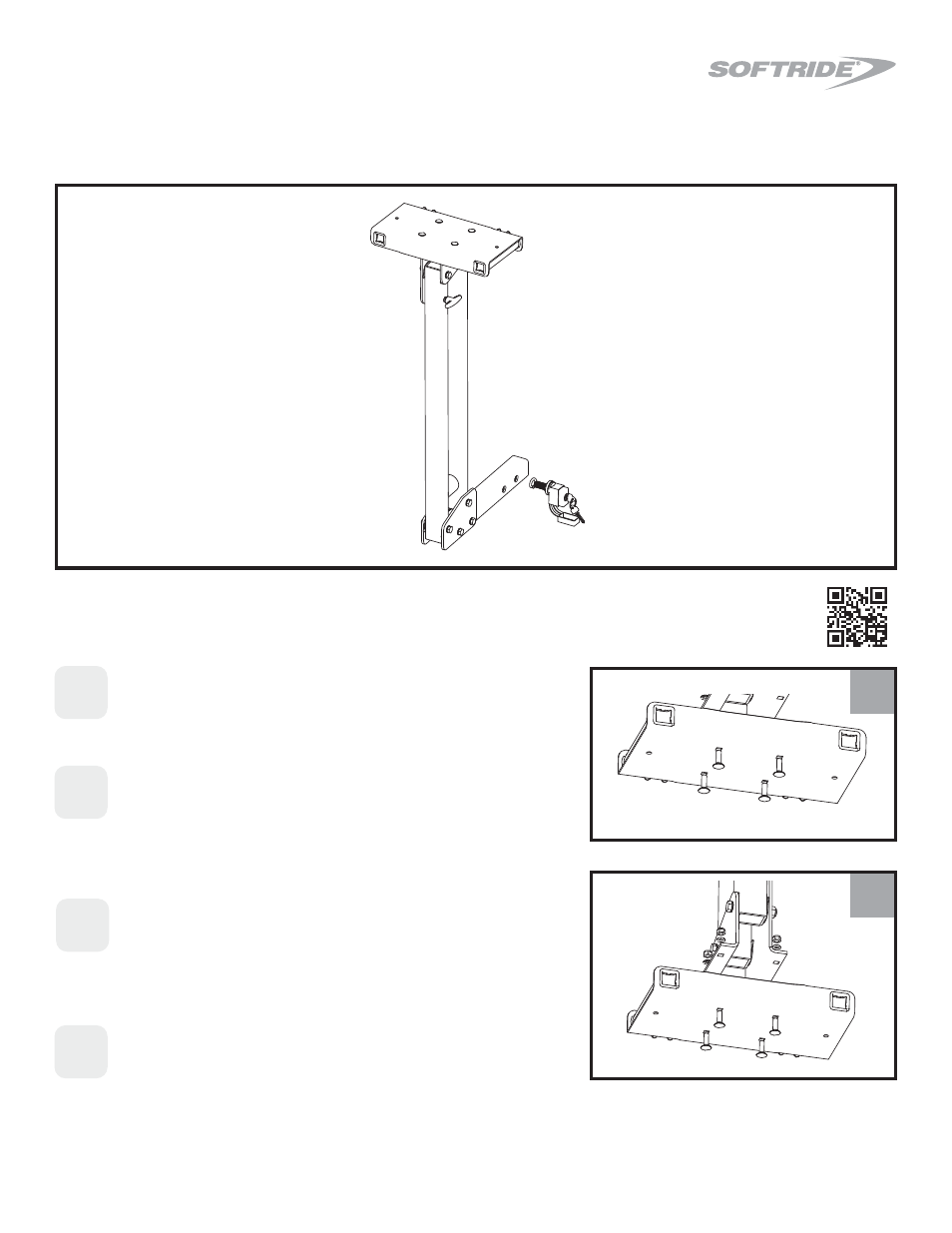

Fully Assembled Access Rack
Remove Access Rack parts from Box 1
(1A), (1B), (1C), (1D), (1E) Page 1
Begin assembly of rack by loading the
carriage bolts (1C) into the 4 holes in the
top plate (1B). Place the top plate on the floor,
top side down on a piece of cardboard.
1
2
2
3
Position the base rack assembly (1A) on the
top plate (1B), aligning the mounting holes
of the top plate with the holes in the brackets
on the base rack assembly.
3
4
Place the lock washers and lock nuts on the
carriage bolts and tighten them to
12 foot-pounds with a torque wrench.
Tip: This is where the 13mm socket and the
extension is used.
3
