Connecting Equipment
to
the TV

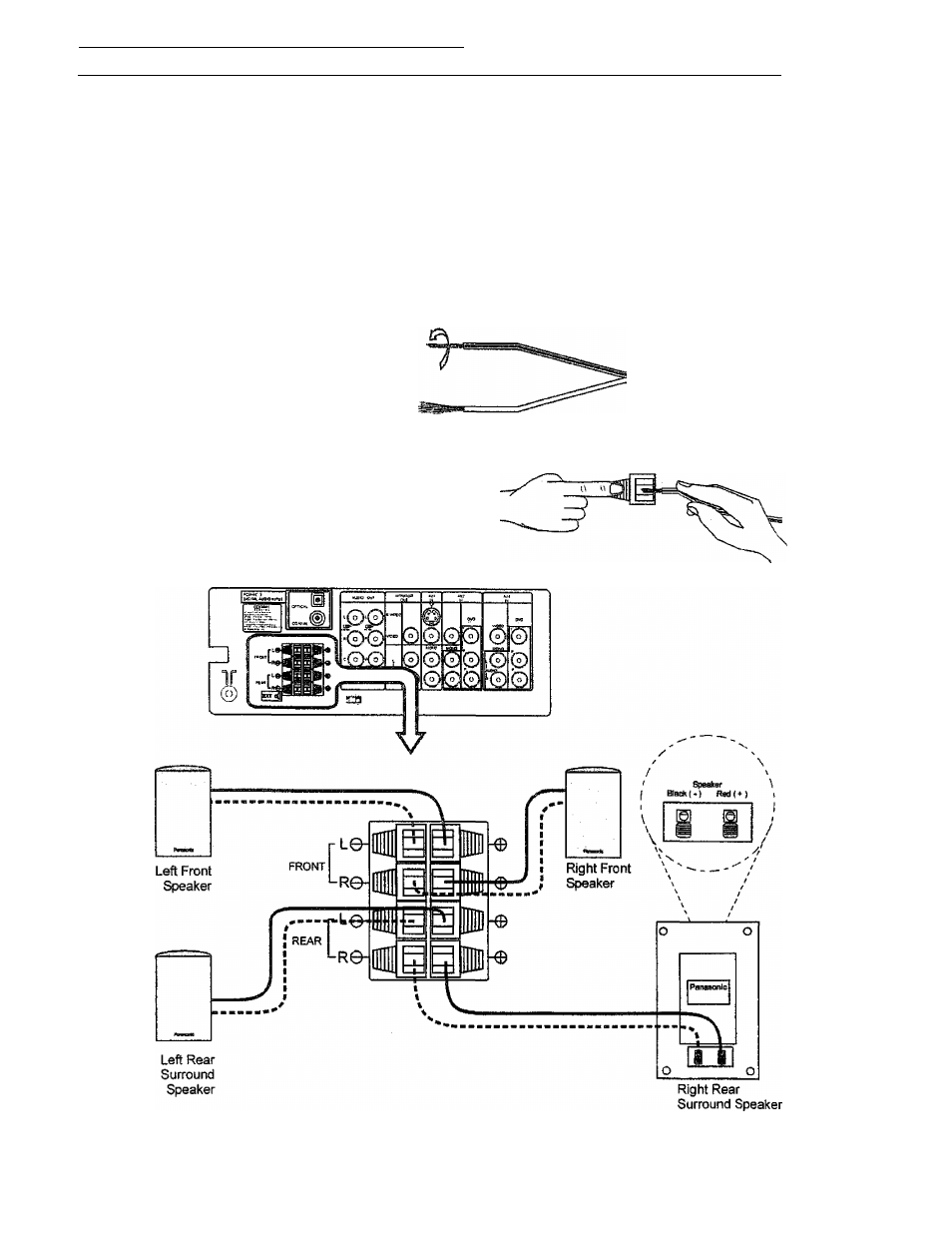

Connectang the External Speakers (TX-86PW100A & TX"76PW100A)
The external speaker connections (EXT) on the rear of the TV allow you to create your own system using
external speakers.
You may decide, for example, to connect external left and right front
speakers and left and right rear surround speakers as shown here.
The TV must be turned
OFF
before connecting external equipment.
1. Twist the bare wire ends of the speaker
wires before inserting into the speaker
terminais.
Left Front
Speaker
Right Front
m
y
s
Left Rear ¡si
Surround
Speaker
Right Rear
Surround
Speaker
2. insert into terminals.
Ensure that bare speaker wires are not touching
and are fully inserted into the terminais.
Push lever
Insert Wire
42
