Connection to a decoder – Panasonic NV-SD450B User Manual

Page 9

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Text mode
Original mode

Connections

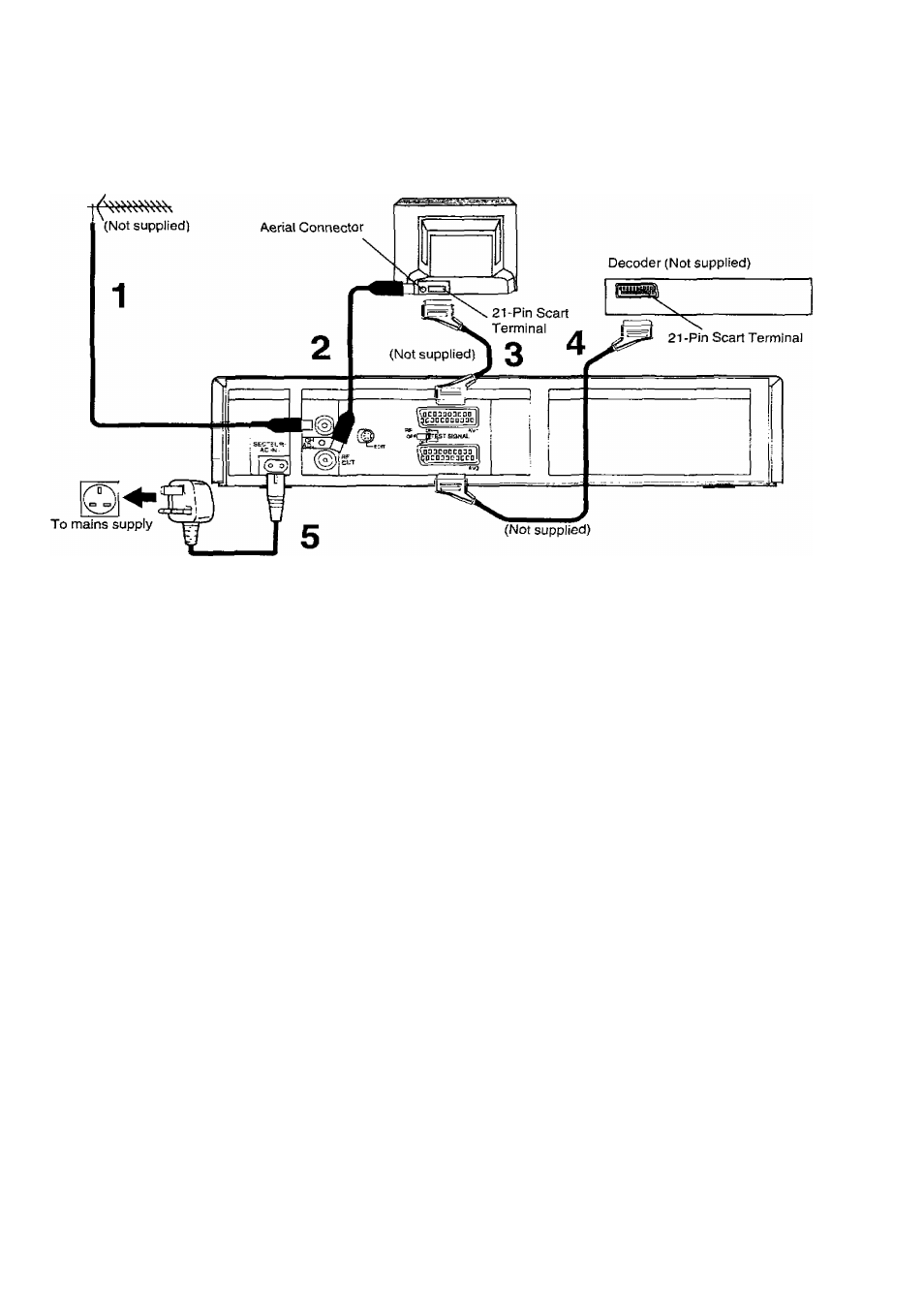

Connection to a Decoder

C3i

Aerial

TV Set (Not supplied)

Notes:
•"RGB” is an abbreviation for "RED/GREEN/BLUE"’

signals. If the TV with RGB input capability is connected
to AV1 and the unit with RGB output capability is
connected to AV2, the TV can receive RGB signal from

the unit through the VCR.

• Use full-wired 21 -pin AV cables for the connection.
•Selection of RGB or norma! video output is done by the

external equipment connected to AV2 terminal.

•RF OFFiTEST SIGNAL SWITCH

Switch to “OFP position only if interference beat occurs,

tiien viewing via 21-pin scart connection only.

)
