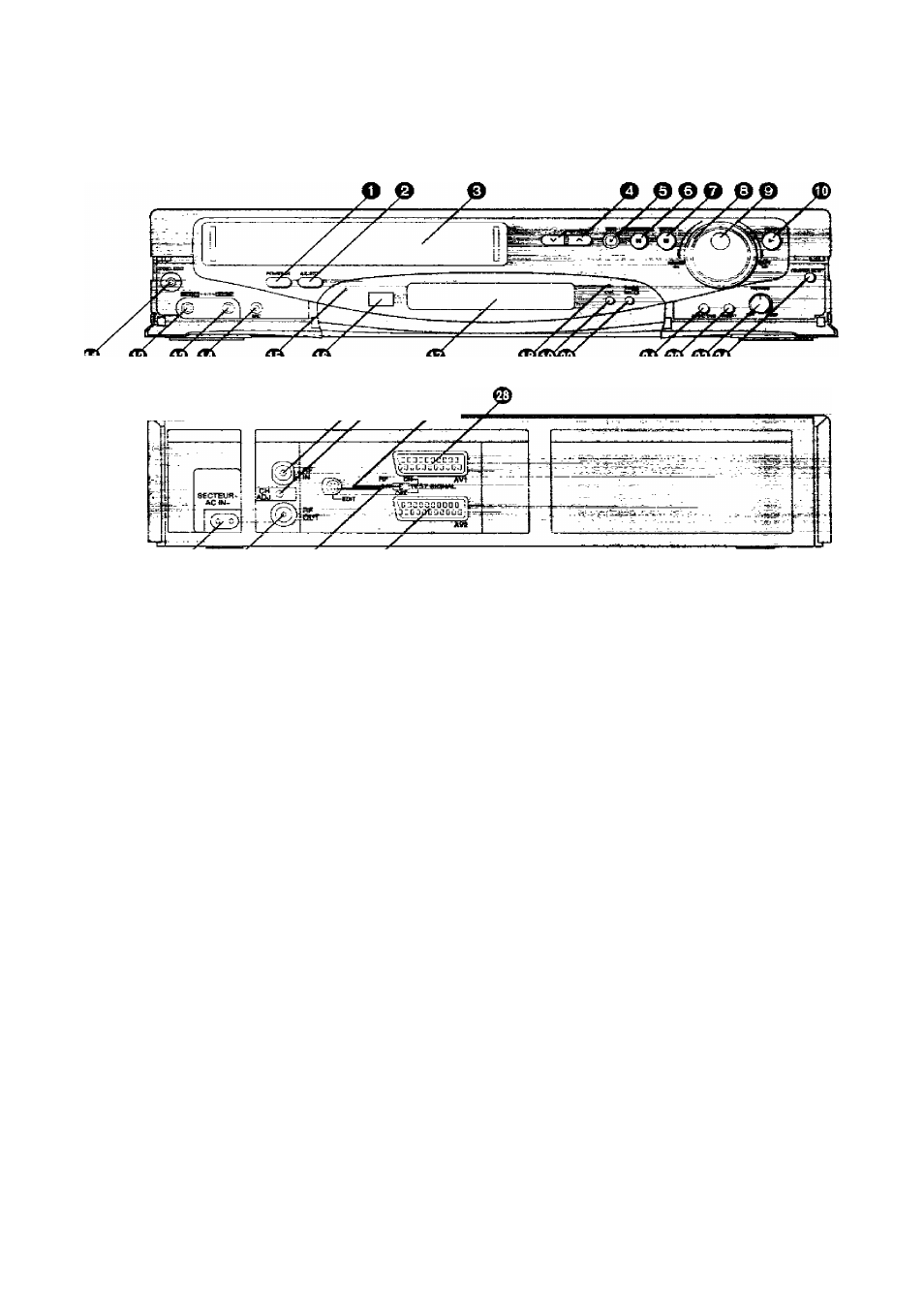

Controls and Connection Sockets
This gives a detailed explanation of the function of each button, switch and connection socket.
w w
w
WWW
<
14
)
O
POWER
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
connected to the mains.
Q EJECT
To eject a video cassette.
Q Cassette Compartment
Insert a video cassette here.
O ^
To select the required programme position (TV
station).
0
REC
To start a recording.
© PAUSE/STILL
In the stop mode: Still picture (Jog/Shuttle mode).
During playback: Still picture (Jog/Shuttie mode).
During recording: To interrupt recording.
O
STOP
To stop any playback or recording.
O
Shuttle Ring
In the stop mode: To rewind or fast forward the tape.
In the playback mode:
To search picture backward or
forward.
In the still playback mode:
To adjust playback speed
backward or forward.
In the rewind or fast forward mode:
To obtain high speed picture.
© Jog Dial
To locate any desired frame with utmost precision.
© PLAY
To start playback. is lit.
© SYNC. EDIT
To connect a movie camera or another VCR
equipped witn synchronized edWngTapaiHmy.
To connect a movie camera or another VCR
equipped with LANC socket for One-Touch-Edttfng.
0
VIDEO IK (AV3)
To connect the video cable to a movie camera or to
another VCB.
0 AUDIO IN (AV3)
To connect the audio cable to a movie camera or to
another VCR.
© MIC
To connect a microphone for recording. Once
connected, this socket has priority.
© Standby Indicator
This indicator is lit when the VCR is turned off or the
VCB is timer recording standby mode.
© Infra-red Remote Control Receiver Window
© Display
0
CVC Indicator
When the CVC function is on. this indicatof is lit.
