Electrical Shock or Personal Injury Hazard
Disconnect the electrical supply before servicing or cleaning the unit. Failure to do
so could result in electrical shock or personal injury from cleaner suddenly starting

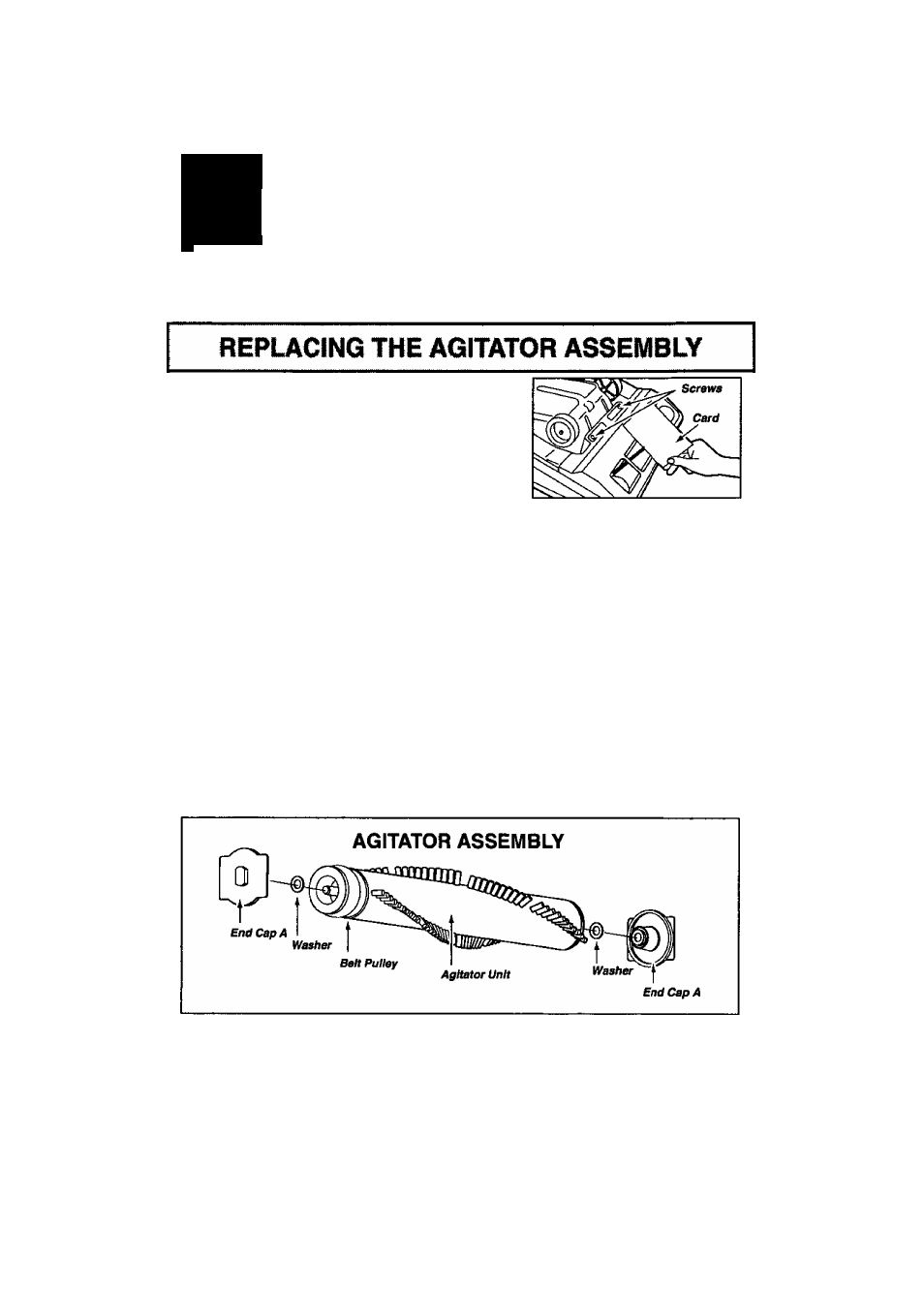

1. When to replace the agitator assembly
The agitator assembly should be replaced when the
brushes are worn Brushes should be checked by
holding a card across the bottom plate (see illustration)
If the bristles on the agitator assembly do not touch the
card you should replace the agitator assembly for best
cleaning results
2 How to replace the agitator assembly.
Place the vacuum cleaner handle in the low position (See the Handle Adjustments section )
Remove the lower plate as outlined in the Removing/lnstalling the Lower Plate section After
the lower plate is removed, carefully lift up the agitator assembly until it clears both sides of
the nozzle housing While holding the agitator assembly up, remove the belt
CAUTION The two end caps may come off along with the two washers as you lift the
agitator assembly out Do not lose the two small washers Look at the exploded view of
the agitator assembly below for correct assembly of parts
3 To replace the agitator assembly
Place the belt over the belt pulley on the agitator unit (NOTE There is a place for the belt
to fit on one end of the agitator assembly only) Replace both washers and end caps (see
Illustration below for correct assembly) After assembling the belt, washers and end caps
place the agitator assembly back into the nozzle housing by aligning each end cap
After completing the assembly, rotate the brush, turning it by hand to assure that
it rotates smoothly and the part is assembled correctly
Replace the lower plate as outlined in the Removing/lnstalling the Lower Plate section
-
15
-
