Optional Equipment Connection and Operation
(cont.)
S-Video connection is optional
and overrides the standard Video
connection when connected.

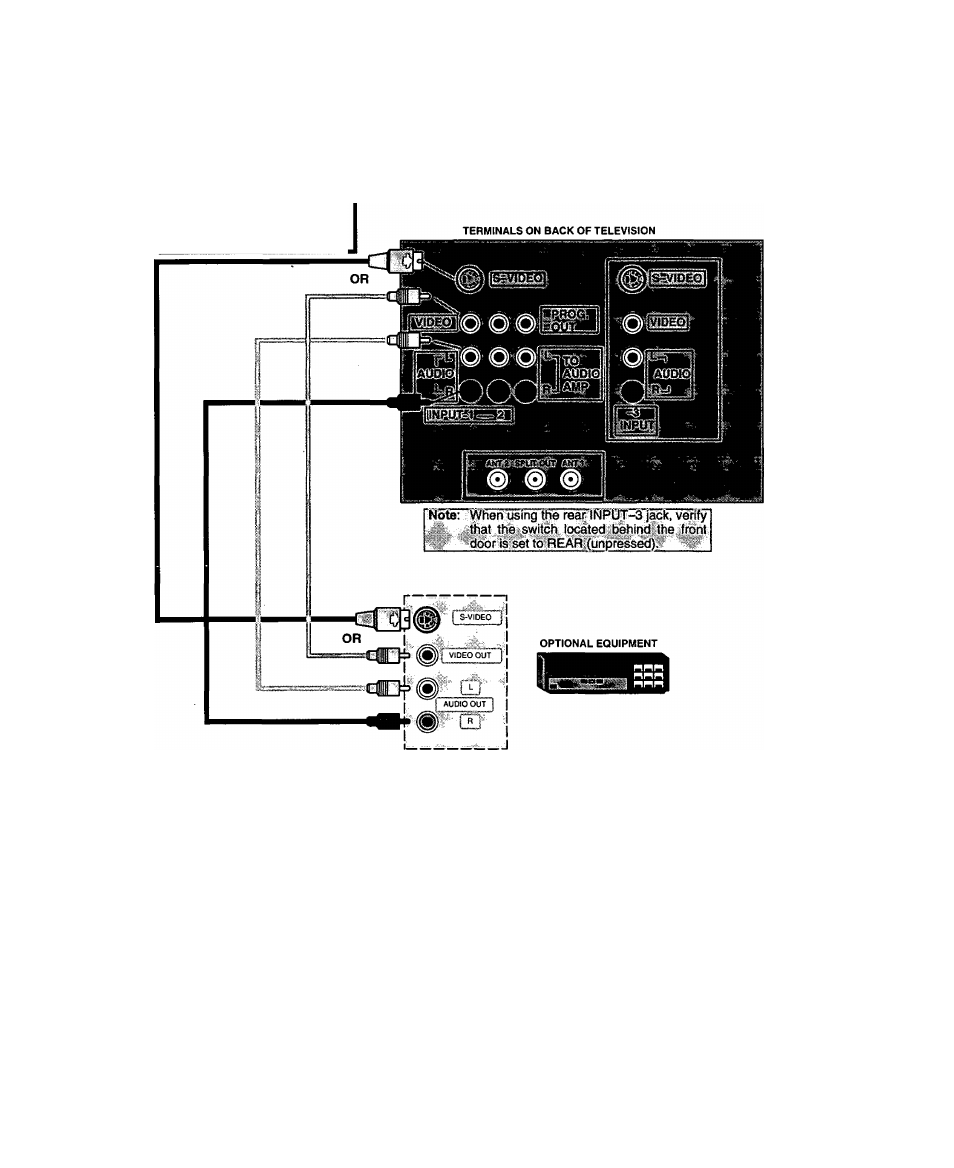

TERMINALS ON BACK
OF EQUIPMENT
Audio/Video Connection
Operation
1. Connect optional equipment as shown to INPUT 1,2, or 3 {Additional
INPUT 3 terminals are located on the front of the television behind the
door. Make sure that the INPUT 3 FRONT/REAR switch located
behind the front door is set properly.)
2. Select the desired Video mode by pressing the TVA/IDEO button (or
refer to the Input Select Menu).
NOTE: • You must select the VIDEO Mode that corresponds with the
terminal that the equipment is connected to- VIDEO 1 for
INPUT 1, VIDEO 2 for INPUT 2, or VIDEO 3 for INPUT 3.
• S-Video is only availalble with VIDEO 1 and Rear VIDEO 3.
• Connection of optional S-Video automatically disconnects the
normal INPUT 1 or 3 Video terminal.
3. Operate optional equipment (VCR-VDP) as instructed in the manual
that came with that equipment.
