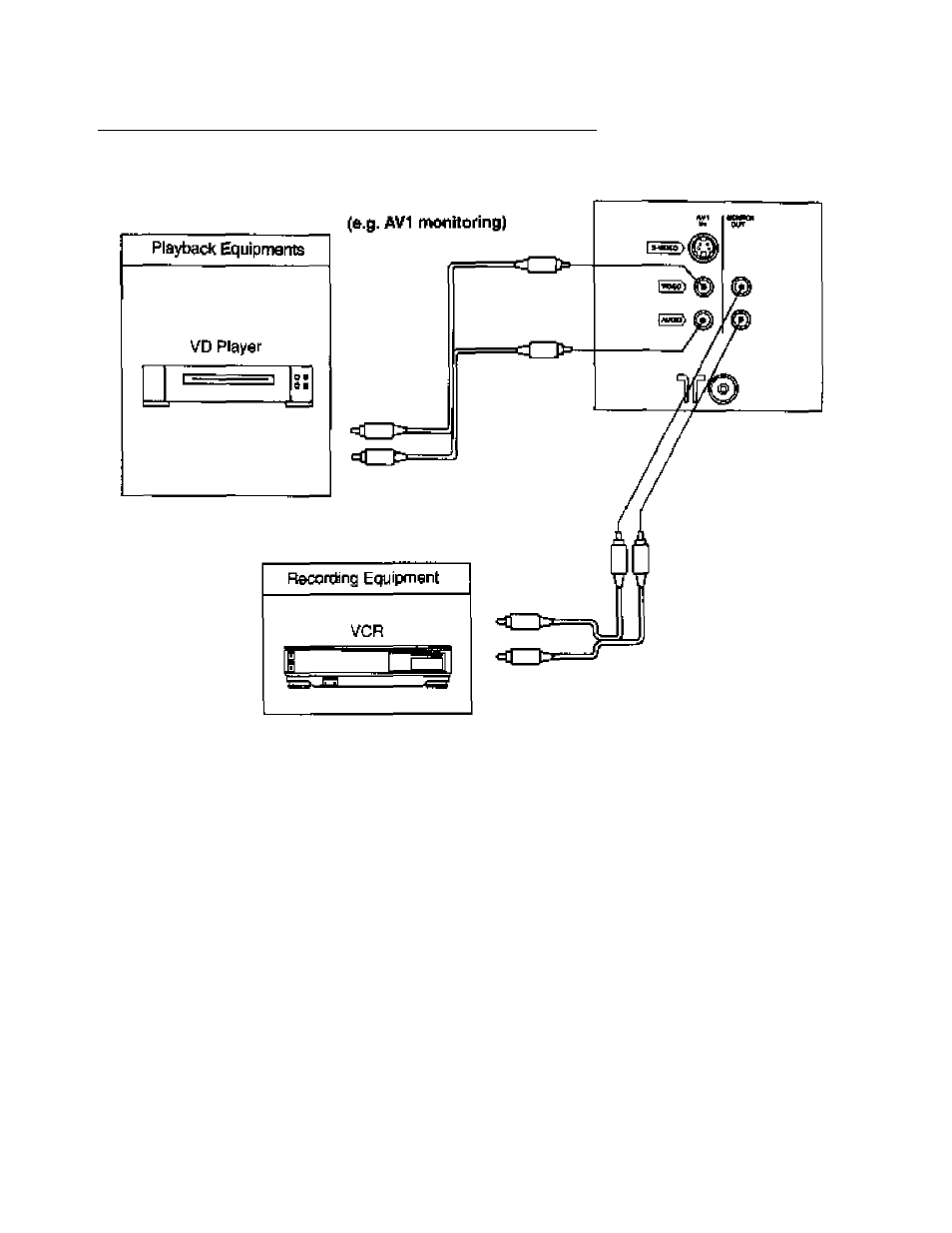

Pattern 3: Via the “Monitor Out” Terminals____________

Connect

thé

"Playbacic" Equipment end "Recording” Equipment via the TV eel as follows.

“Monitor Out" Termlnale contain «Ignats which are on the TV screen at that time, e.g. TV progtwtimes

or Bignala from AV1 or AV2 input

Operation

^ Select the AV mode.

In this caeei select the AV1 mode.
For Operation in detail refer to page

22.

and 23.

2 Push the “PLAY" Button on the Connected Equipment.

Note:

Never oonnect the same video recorder with both the VIDEO IN and VIDEO OUT Terminals on

this TV set, as this would cause maKundion and could lead to accrdems.
