Char-Broil 463231711 - Manual (Page 22)

1
2
3
4
5
A
B
16
17
22

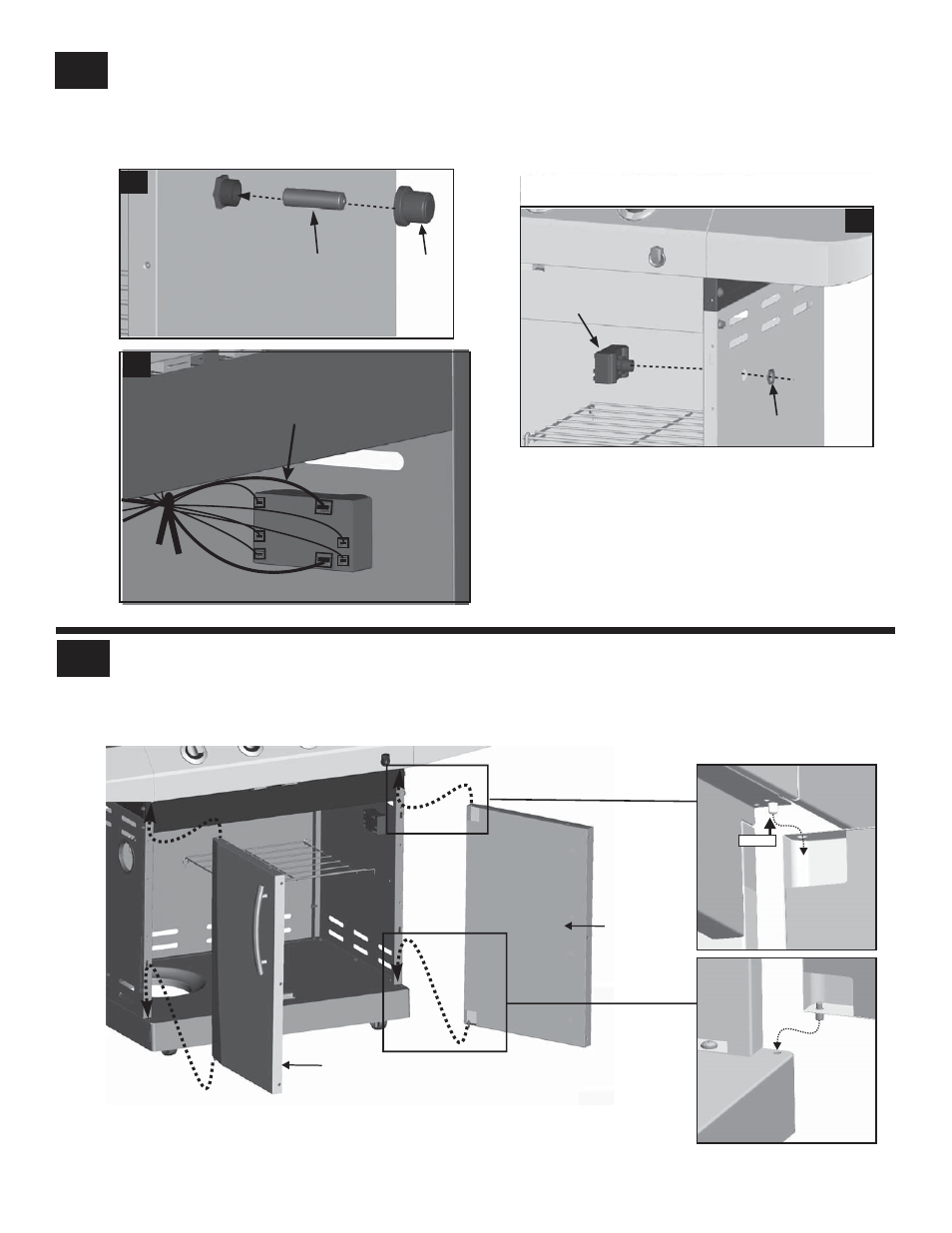

Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel
Insert AA battery into ignition module, negative ( – ) end first. Then put on the cap, shown B.
ignition module. Total (2) connections, shown C.
module. Total (5) connections. Connect the two wires (A and B) from the switch wiring harness into the back of the electronic
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the electronic ignition
with the nut, shown A.
+
-
ignition module
Electronic
Nut
Cap
NOTE: Switch terminals are larger than electrode
terminals and should only be installed in
location shown as A, B.
AA battery
Right side panel
A
B
C
Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Left door
Hinge pin
on bottom
of door
Top of
door
PRESS
Right door
Wire
