6
16

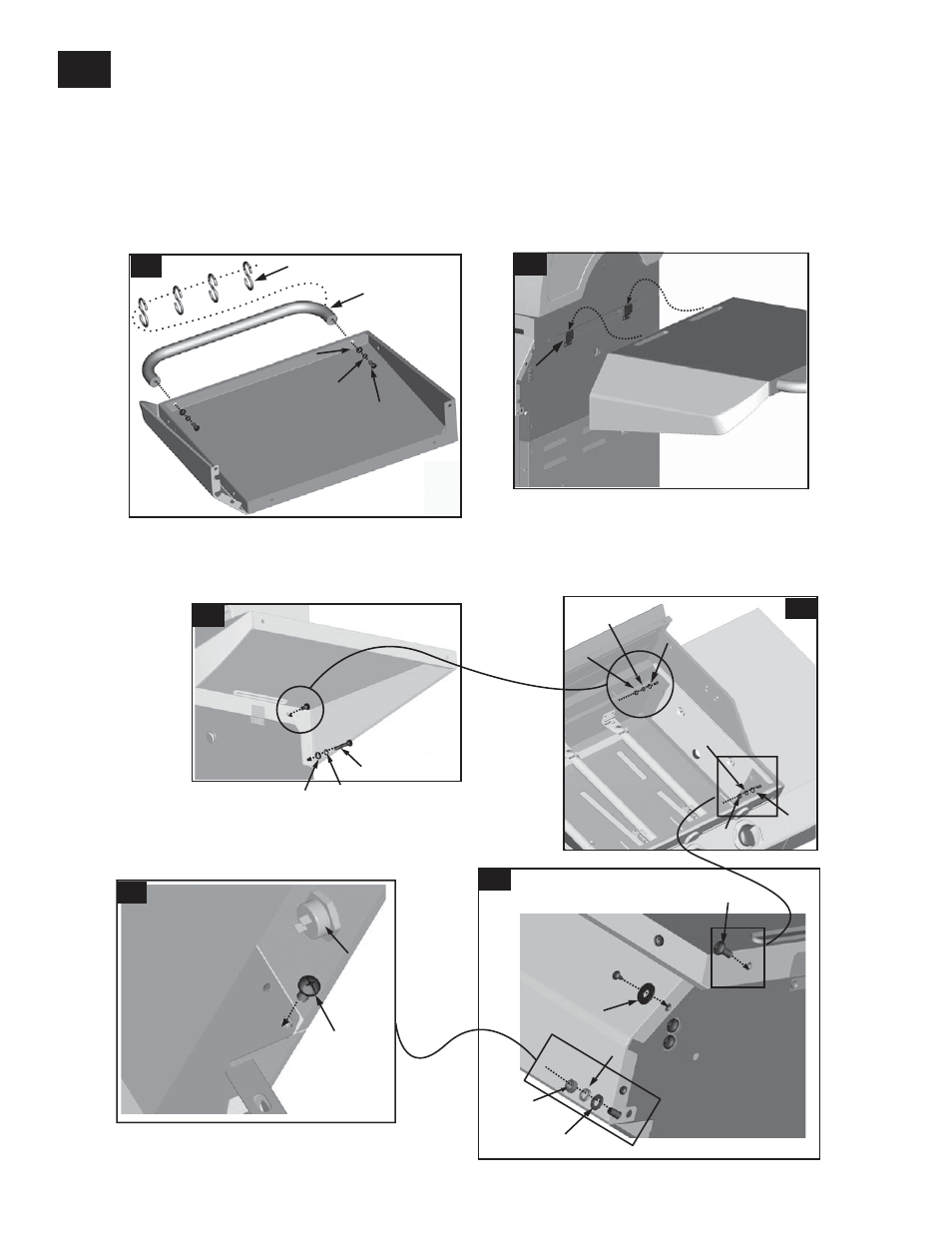

Insert flange on right side shelf into side shelf brackets on side of firebox, shown B.
Attach rear of shelf using one 1/4-20x3/4” screw, 7mm flat washer, 7mm lock washer and 1/4” nut in upper hole; using
one 1/4-20x1½” screw, 7mm lock washer and 7mm flat washer in lower hole, shown C/D.
Attach front of shelf and fascia using two 1/4-20x3/4” screws, 7mm flat washers, 7mm lock washers and 1/4” nuts, and
one #8x3/8” self-tapping screw with large flat washer, shown D/E/F.
B
D
1/4-20x1½” screw
1/4-20x3/4” screw
7mm lock
washer
7mm lock
1/4”nut
1/4”nut
washer
7mm lock
washer
7mm flat
washer
7mm flat
washer
7mm flat
washer
1/4-20x3/4” screw
*Insert this screw from
the back of main control
E
#8x3/8” tapping
screw
large flat
washer
Front of Shelf
Rear of Shelf
Back of main control panel
1/4-20x3/4”
Igniter Switch
screw
7mm lock
washer
7mm flat
washer
1/4”nut
F
C
panel
Towel bar
S hook
1/4-20x3/4” screw
Bracket
7mm lock
washer
7mm flat
washer
A
Some components not shown for
illustration purposes.
Remove the two 1/4-20x3/4” screws, 7mm lock washers and 7mm flat washers factory attached to the towel bar.
A.
Hang the four S hooks on towel bar. Attach towel bar to right side shelf using screws and washers that are removed
from towel bar, shown
