Char-Broil 463231711 User Manual
Page 15
Upper back panel
5
1/4-20x1½” 7mm lock 7mm flat
washer
15

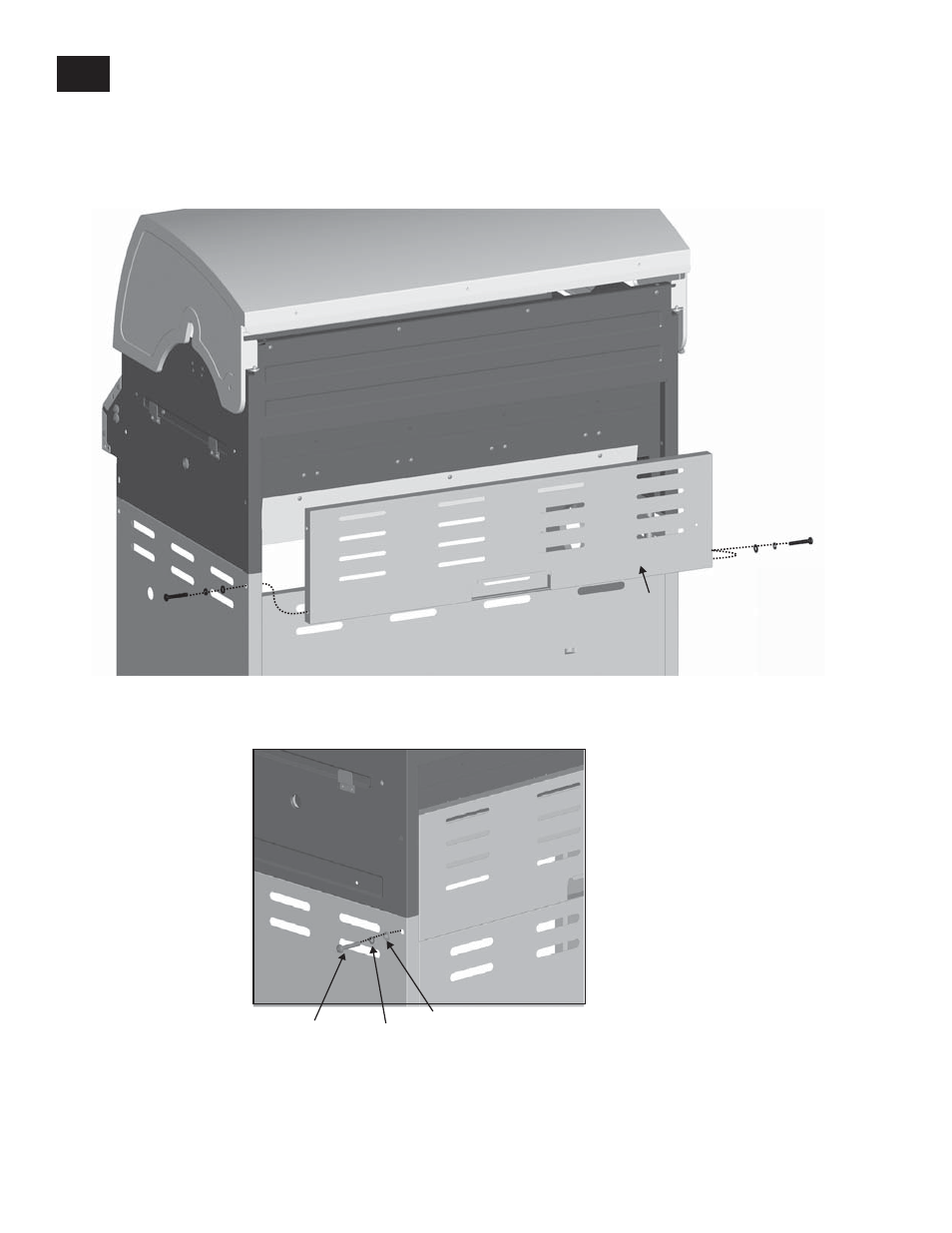

On back of grill, place upper back panel between side panels and above lower back panel.
Secure upper back panel, in lower holes, using one 1/4-20x1½” screw, 7mm lock washer and 7mm flat washer on each side.
Do not fully tighten screws until side shelf installation is complete in later steps.
