Dolby Center Channel Input Connection

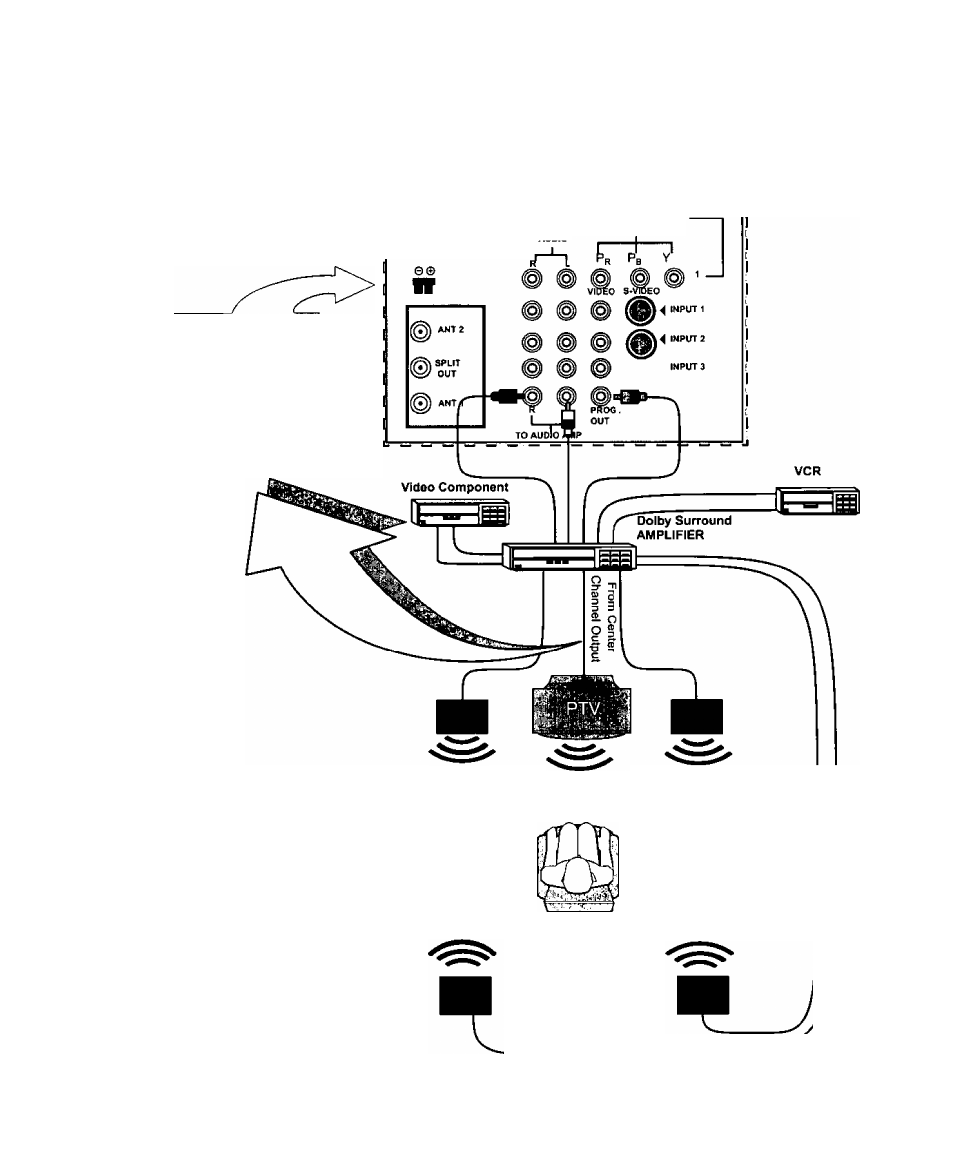

Your PTV can be configured to use the PTV speakers as center channel speakers in
Dolby* surround sound transmission. Connect a Dolby surround amplifier to CENTER
CHANNEL INPUT on the back of the PTV as shown. DOLBY CENTER MODE & FIXED
AUDIO OUT must be selected in the AUDIO Roller Guide™** menu under SPEAKERS.
TERMINALS ON BACK OF PTV
CENTER CHANNEL INPUT
{1} Push and hold down button.
(2) Insert bare wire into terminal
and release button.
CE N TE R
C H AN N EL
IN PU T
120
saw
{D IN } M AX
CO M PO N EN T V ID EO IN PU T
VID E O
Alintn
Left Front
speaker
Right Front
PTV Speakers
Speaker
Center Channel
Left Rear
Surround Speaker
Right Rear
Surround Speaker
"Dolby" and “Pro-logic" are the trademarlis of Dolby Laboratories Licensing Corporation.
*U.S. Patent Pending
©
