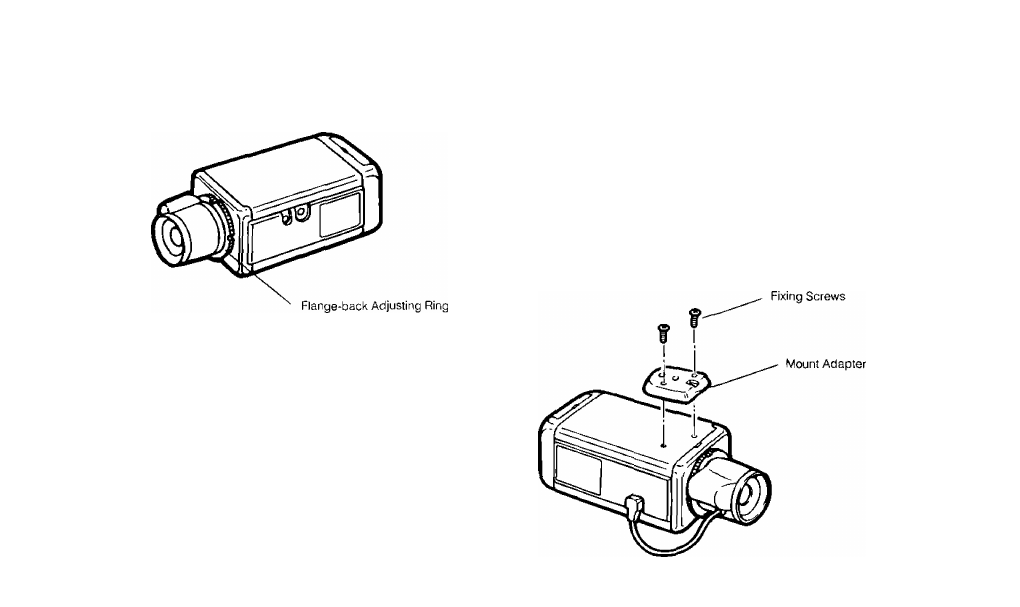

FOCUS ADJUSTMENT

1. Loosen the screws on the Focus Adjusting Ring.

Turn the Focus Adjusting Ring to the desired posi
tion.
Caution: Do not turn this ring excessively counter

clockwise as this could damage the inner

glass and CCD image sensor.

Tighten the screw on the Focus Adjusting Ring

carefully (less than 0.5kg. cm of torque.)

INSTALLATION OF CAMERA

The mounting bracket can be fixed either on the top or

bottom cover of the camera.

• Mounting from the top

Remove the mount adapter from the bottom of the
camera as shown. The hole is for the standard
photographic pan-head screw size (1/4” - 20).

Make sure that two original screws are used when
mounting the mount adapter; longer type screws

may damage the inner components.
