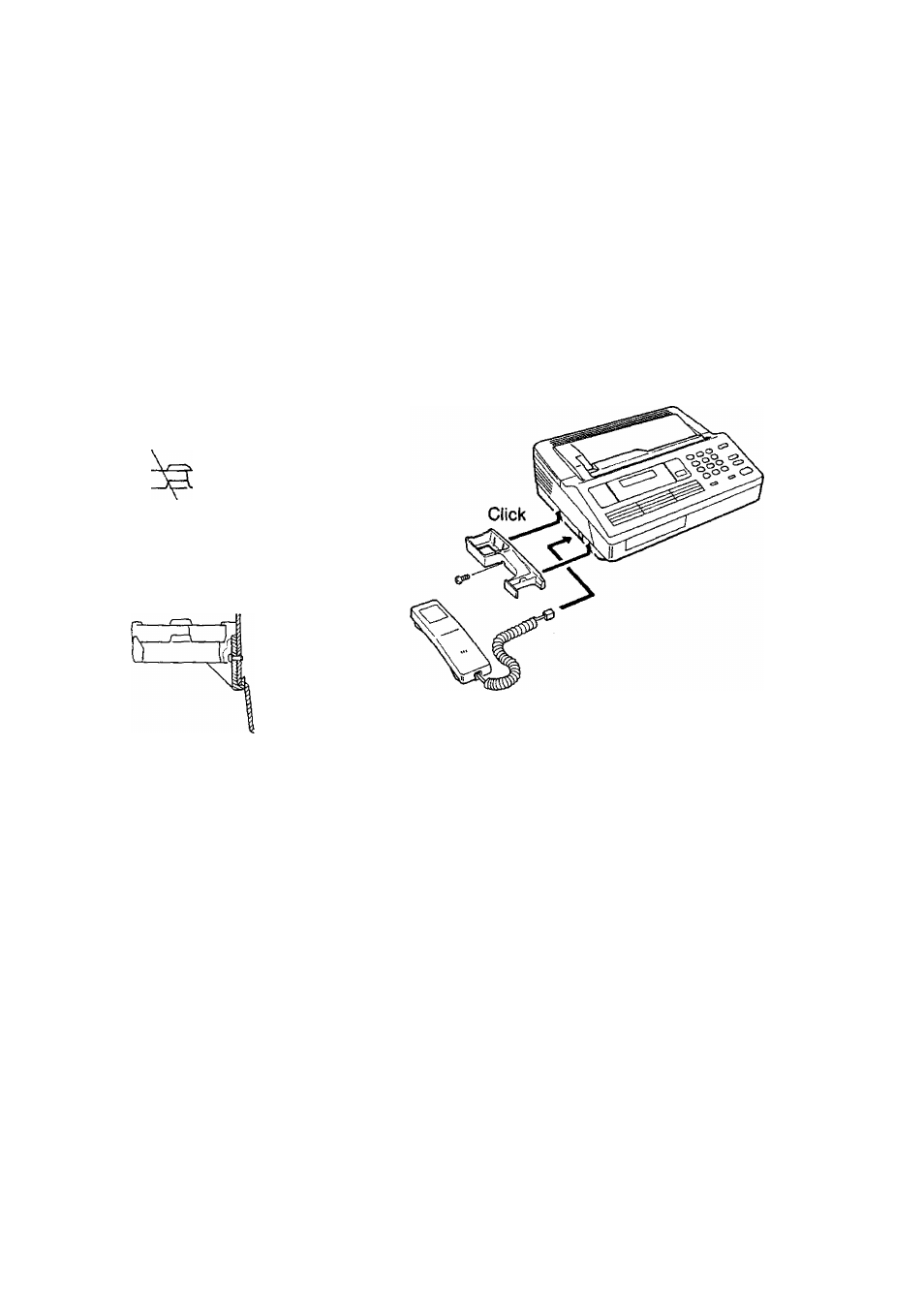

Installing the Handset and Cradle

(1) Plug the telephone handset into the jack on the left side of the machine.

(2) To attach the telephone cradle to the machine,

• Insert the two projections on the cradle into the slots provided on the left side

of the machine.

• Insert the screw into the center of the cradle and secure it to the cover with

a Phillips screwdriver.

Before installing

Side Cover

Cradle

Screw

After installing
