Leica mojoMINI 2, System Installation 17

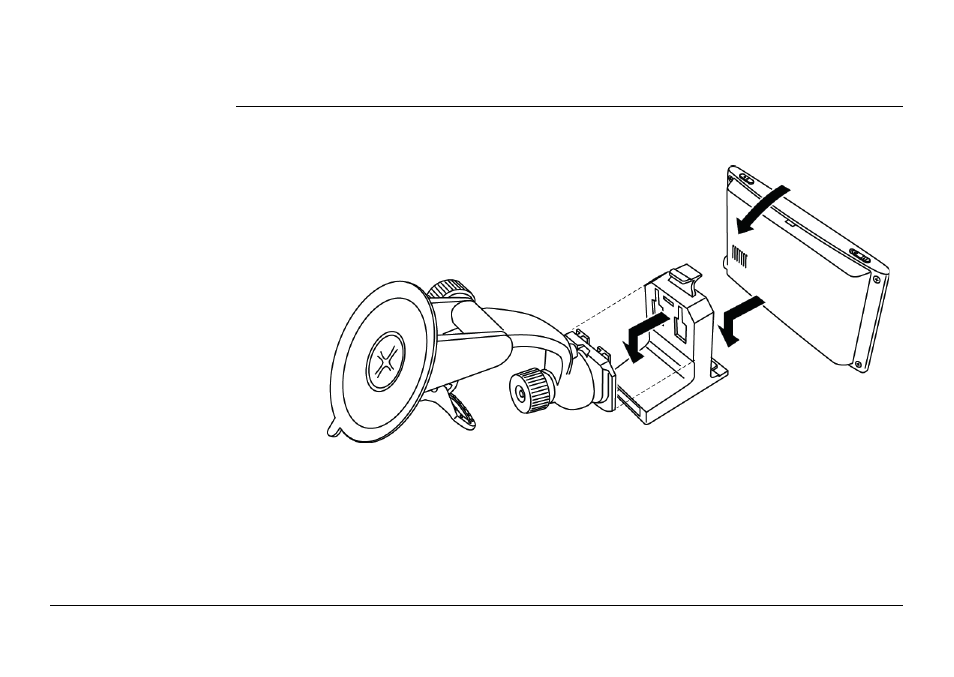

2.3 Installing the mojoMINI 2
mojoMINI 2 instal-
lation The mounting bracket for the mojoMINI 2 is held in place on the windscreen of the
vehicle by a suction cup.
1. Slide the mounting cradle onto the end of the mounting bracket.
2. Set the bottom edge of the mojoMINI 2 unit onto the mounting cradle.
3. Push the top edge of the mojoMINI 2 under the clip at the top of the mounting
cradle.
mojoMINI_2_005
1
2
3
