Page 40
CanogaView
®
Smart Element Manager

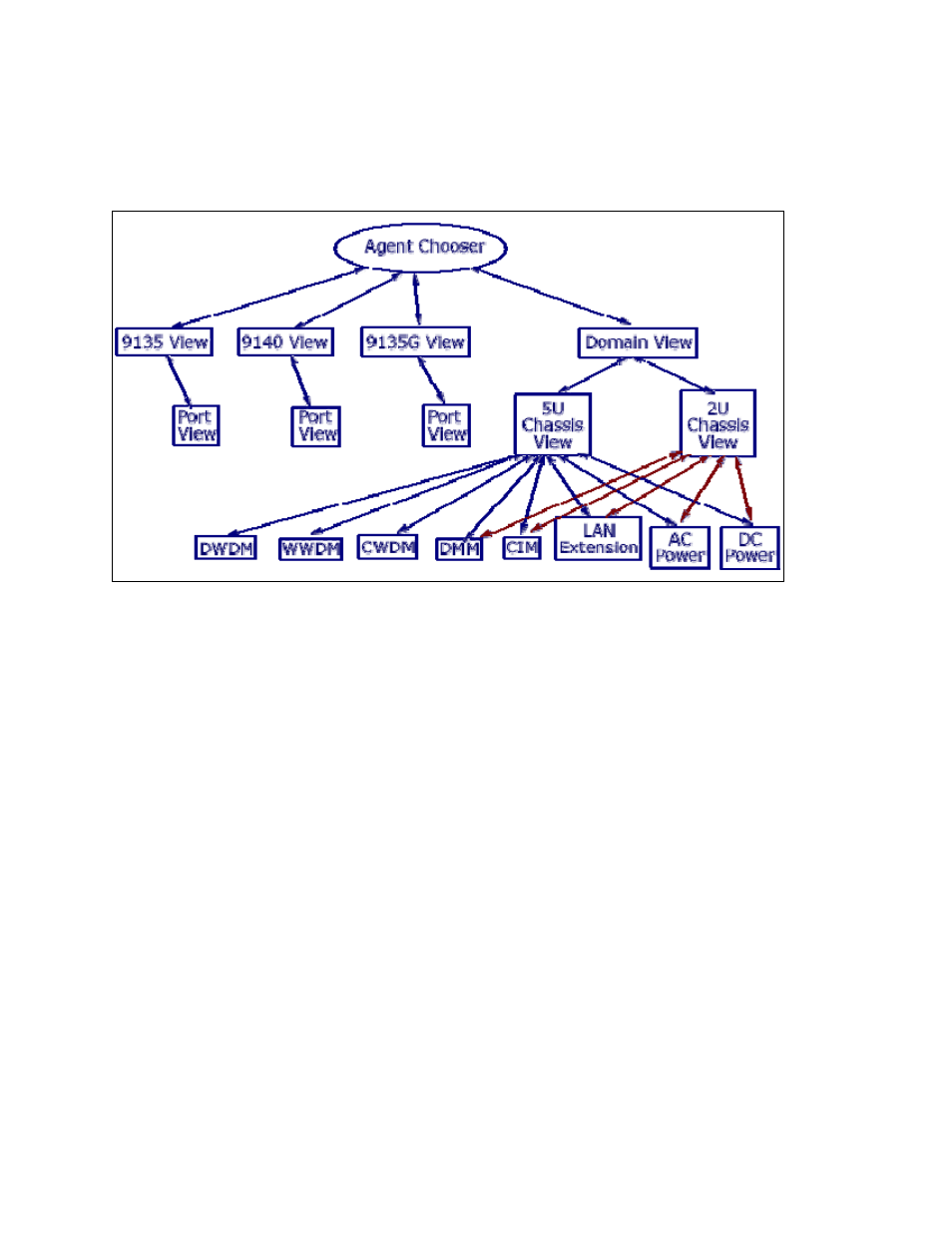

The following figure shows the views that are currently implemented in CanogaView Smart
Element Manager and the subsequent underlying views.
Figure 3-13. Selectable Views
Examples of the various view types follow. The 9135, 9140 and 9135G are very similar,
therefore only one is shown in this section.
Domain View
Once a specific domain is selected the chassis (both 5u and 2u chassis models) within that
domain will be presented on the page. A domain may contain from one (1) to eight (8)
chassis.
Due to performance and graphical imaging issues the chassis, when displayed at the
Domain View level, are not exact representations of the devices installed. Generic models
are displayed within each slot based upon the card type identified by the SNMP Agent and
LEDs are not displayed due to their size at this level.
32
