CanogaView
®
Smart Element Manager
• Domain Management Module (DMM) for management support of the Universal
Chassis System (up to eight 2U and 5U chassis per DMM) and its components.
• 9135 Two Port EdgeAccess™ Switch
• 9140 Four Port EdgeAccess™ Switch
• 9135G Gigabit Two-port EdgeAccess™ Switch
Click on the "Add Agent" button and an Add Agent window will open. Enter the “IP Address”
of the SNMP Agent to be managed and the “Agent Type”. Repeat adding SNMP Agents for
each device that you need to manage.
To delete an agent, select the agent to delete from the list, click on the “Delete Agent”
button, and save the change.
Additions, changes and/or deletions to the Agent database must be saved.

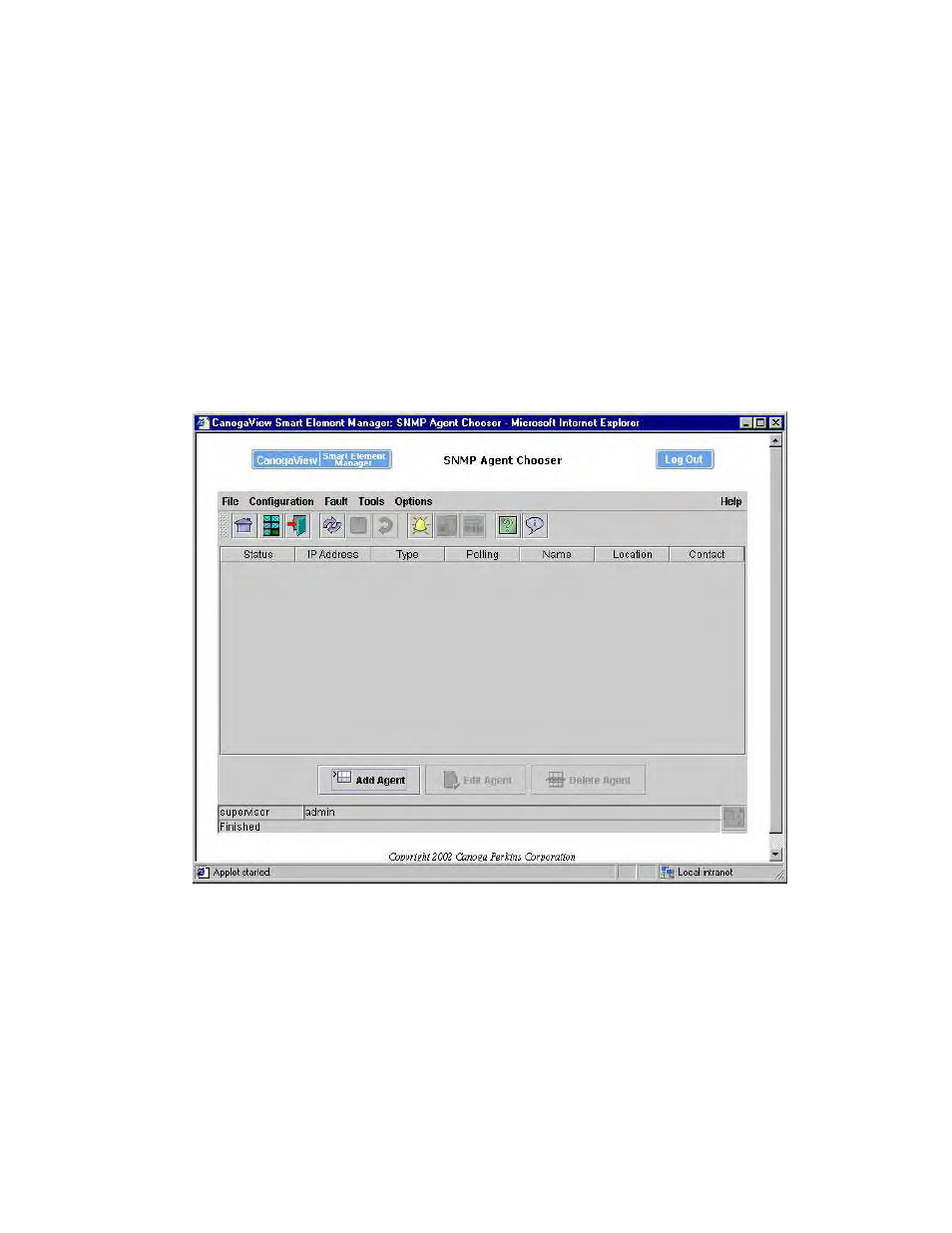

Figure 3-10: SNMP Agent Chooser
Standalone Version 29
