4.7 Alarm Configuration
Use the Alarm Output Configuration screen to set any or all alarms to Major, Minor, or Off. See
Figure 16. To configure alarms:
Note: You must enable the Alarm Output option on the System Status & Configuration screen for
these settings to take effect.
Step 1. From the Main Menu, type 3, "Alarm Output Configuration" and press . The Alarm
Output Configuration screen appears.
Step 2. Type the number for the alarm you want to set and press .
Step 3. Press to cycle to Major, Minor, or Off, and press .

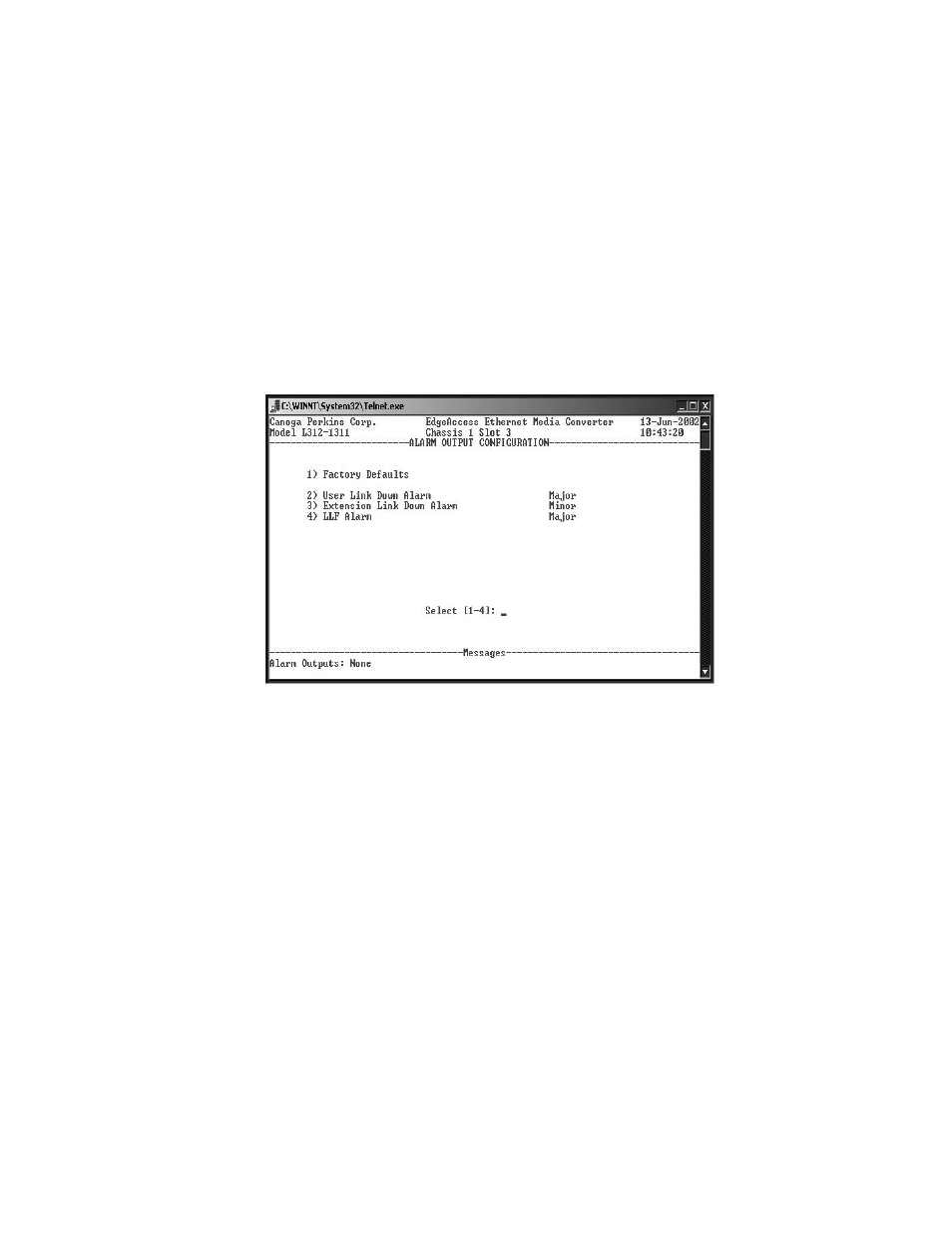

Figure 16. Alarm Output Configuration Screen
4.8 System Status
Use the “System Alarms” screen to view alarms and faults on the CLIM. See Figure 17. To view
alarm status:
Step 1. From the Main Menu, type "4," System Alarms”, and press . The System Alarms
screen appears.
Step 2. When you finish checking the Alarm status, press to return to the Main Menu.
