EdgeAccess Universal Chassis System
L312 Ethernet Media Converters 4-6
• To access the CLIM directly, follow these steps:
a. Type 4, "Manage or access a specific Module," and press .
b. Type the slot and chassis numbers with a slash, such as "1/4" for chassis 1, slot 4, and then
press .
c. At the Module Menu, type 4, "Access User Interface," then press to reach the Main
Menu screen for the CLIM.
• To access the chassis, and then select the CLIM, follow these steps:
a. Type 3, "Manage or access a specific Chassis," and press , press to cycle
between the chassis in the domain, and then press to select the chassis.
b. At the Chassis Management screen (see Figure 12), press to cycle to the slot number
for the CLIM, then press to reach the Main Menu screen for the CLIM.
Note: In a UCS 1000 chassis, the slots in the BAM appear as A and B for the slot that the BAM is
in.

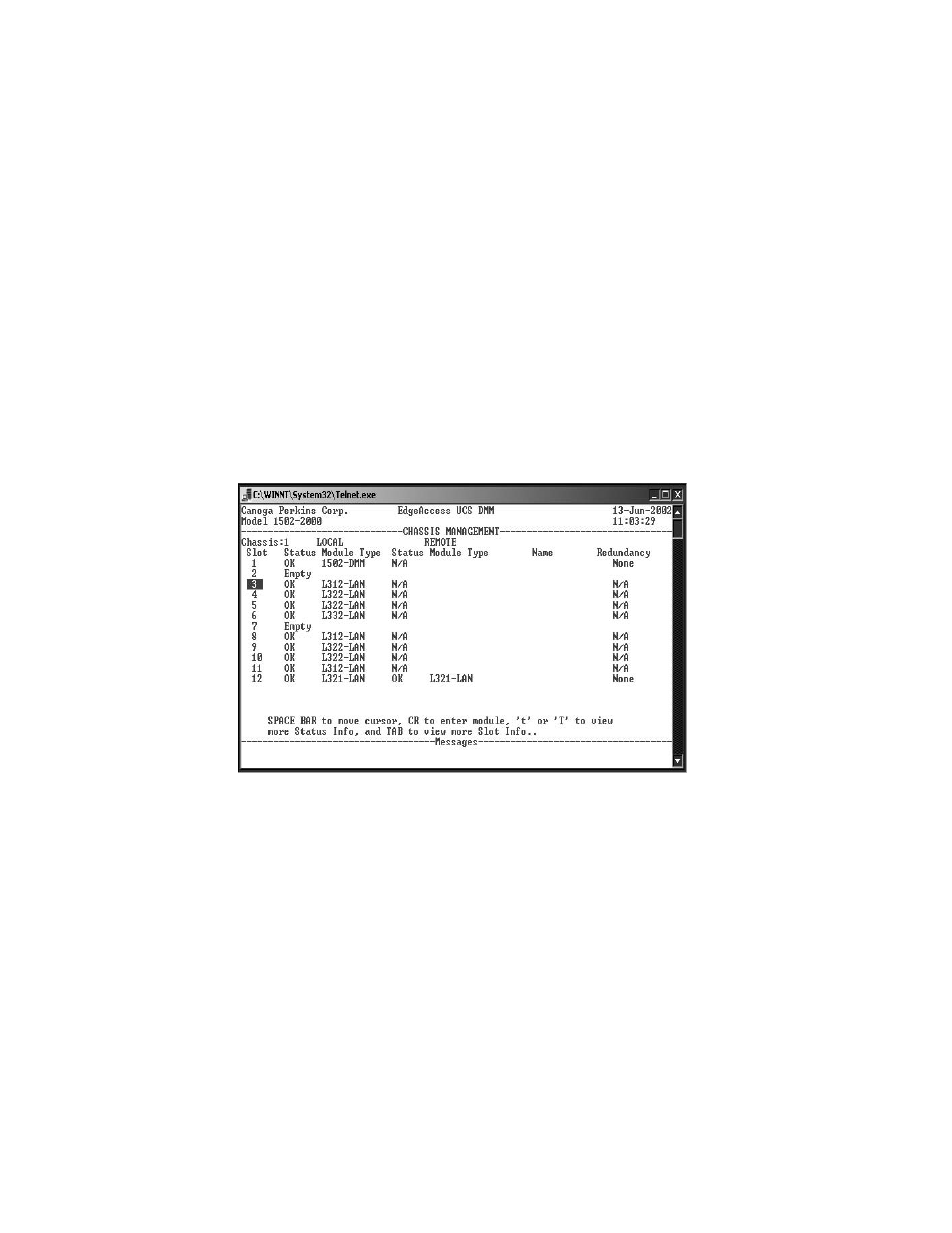

Figure 12. DMM Chassis Management Screen
