EdgeAccess Universal Chassis System
Management User Interface
The Management User Interface for the DMM provides screens for setup, monitoring, and
diagnostics. You can access the screens directly by connecting to the serial port of the DMM in
the chassis or by establishing a Telnet session with the DMM. These sections discuss the screens
for the DMM. For details about any other module in the domain, see the user manual for that
module.
General Screen Format

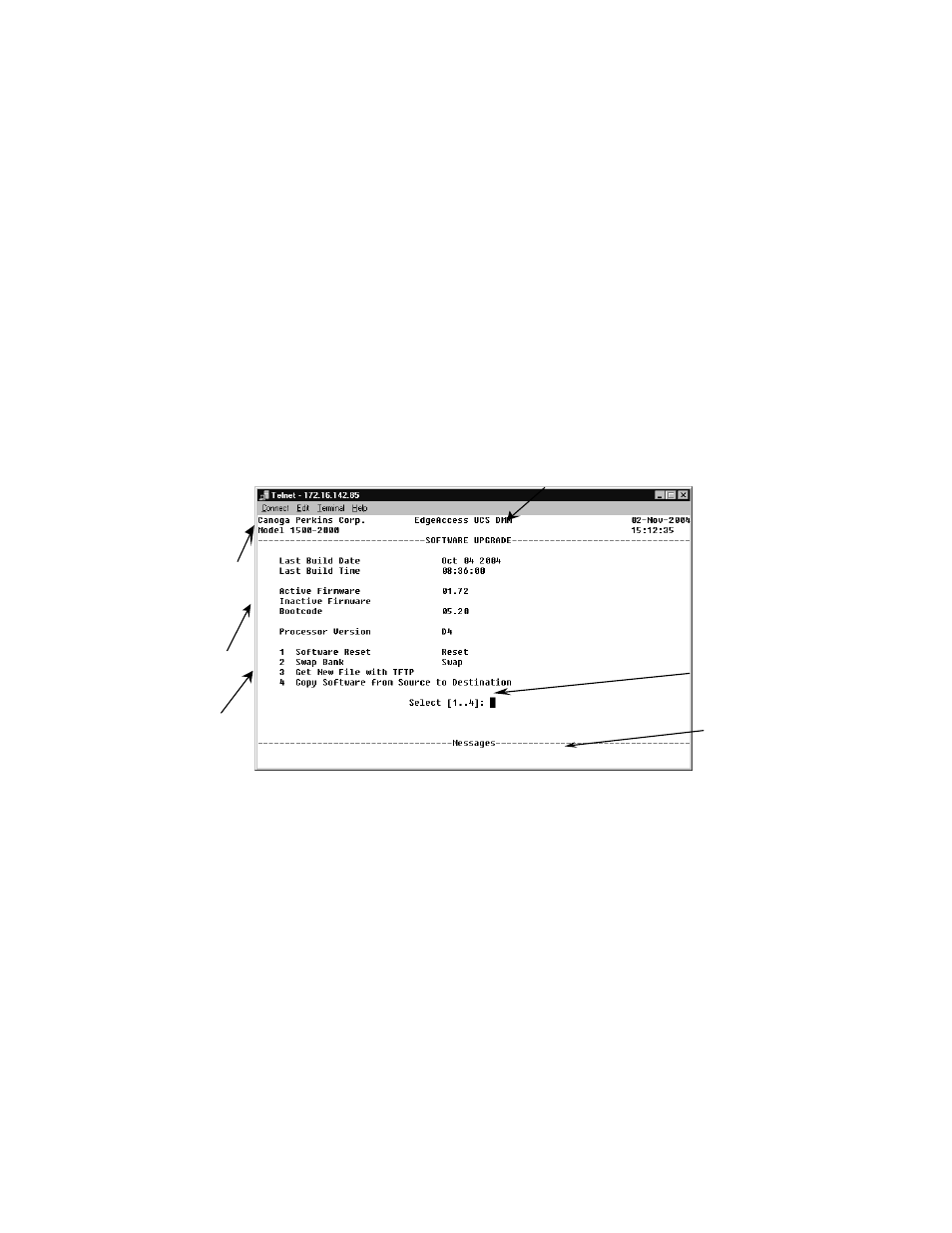

A typical screen, shown in Figure 4, includes standard descriptions and reference designations.
Use this and other screens to configure the system, set operational parameters, and verify the
system status. All screens use a common method for navigation.
Not all screens and menus provide options that you can change. Some menu items reach screens
that only report status, such as revision numbers, module type, or alarms. On other screens, you
can move through and select options, and enter data.
Messages and
urgent status
Screen navigation
instructions
Change options
Status reports
Model number
Chassis and slot information
Figure 4. General Screen Format
Use these keys to navigate the screens:
• Space bar When a menu item is highlighted, press to cycle through all options for
that item.
• Tab Press to move the highlight to the next column to the right.
• Enter Press to select the highlighted option for a menu item.
• Escape Press to return to the previous screen.
3-2 Model 1500 Domain Management Module
