7
9101 LAN Chassis Canoga Perkins
Chapter 1 - Overview
The 9101 LAN Chassis is designed to house any mix of up to twelve 8814s, 8829s,
9119s, and WA-2s (see Figure 1-1). Depending on the customer power require-
ments, the chassis can be ordered in one of five configuration options:
• 9101-0 (no power supplies)
• 9101-1 (120/240VAC power supply)
• 9101-2 (redundant, hot-swappable 120/240VAC power supplies)
• 9101-3 (+/-48VDC power supply)
• 9101-4 (redundant, hot-swappable +/-48VDC power supplies)
• 9101-5 (Redundant 120/240VAC and +/- 48VDC, hot swappable, load sharing
power supplies)
NOTE: All power supplies are factory configured and installed.
The 9101 LAN Chassis fits into a standard 19-inch relay rack (optional RM-5U-23
Extender Bracket for 23-inch relay racks). The integral cable tray and cable guides
make multiple unit installations quick and easy.
The 9101 LAN Chassis User Manual is designed to take you confidently from the
installation stage to the operational stage.

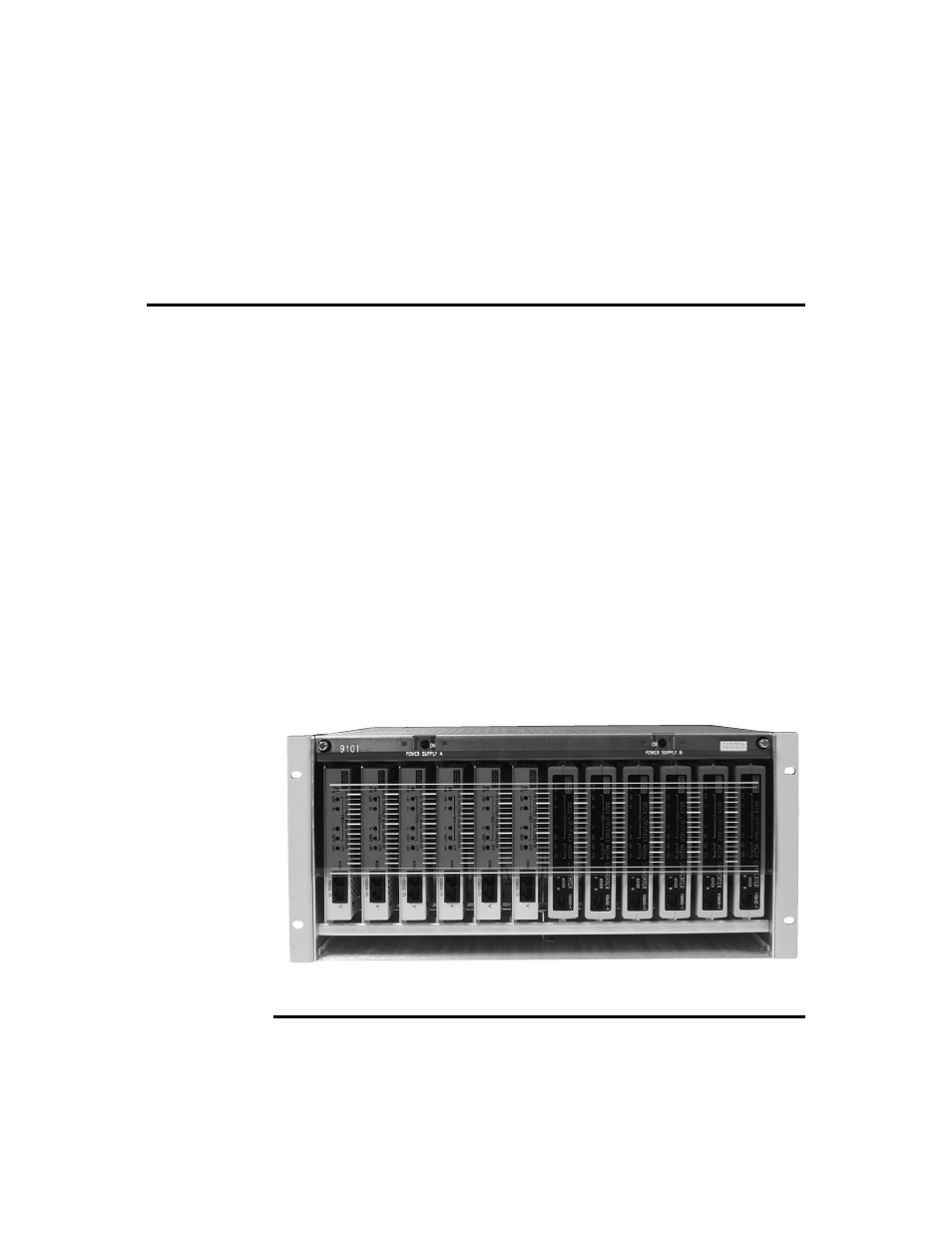

Figure 1-1
9101 LAN Chassis (Front View)
