C.R.Plastic Products C30 - Manual (Page 4)

Step 4: Flip assembled part of chair over on to Arm (C), keeping bottom edge of seat flush with bottom edge
of center rail of arm. Keep front edge of seat back 1/8” from front of leg, (detail U) and attach with
5 - 1½” screws.
Step 5: Line up back, (detail V and W). Insert 2 - 2” screws to attach the back to the curved arm rest,
(detail W) keeping screw holes centered on arm.
Step 6: Insert 4 - 1½” screws. (detail V)

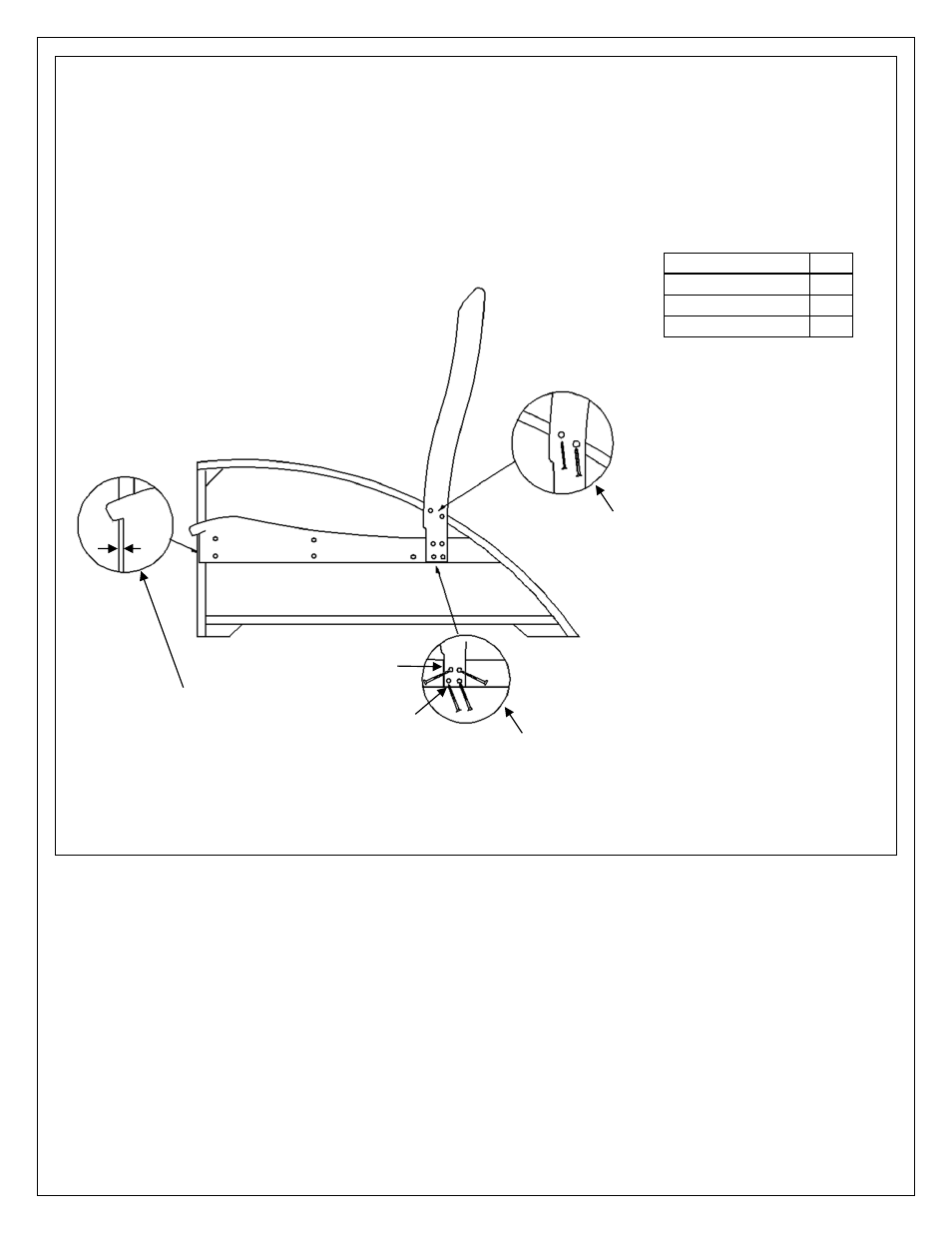

Figure 3
Required Qty
Right Arm (C) 1
1½” Screws 10
2” Screws 2
Keep front edge of seat
back 1/8” from the
front of leg.
Use 1½” Screws
Use 2” Screws
keeping screw
holes centered
on arm.
1/8”
U
V
W
Keep flush
Keep tight
