C.R.Plastic Products C03 - Manual (Page 3)

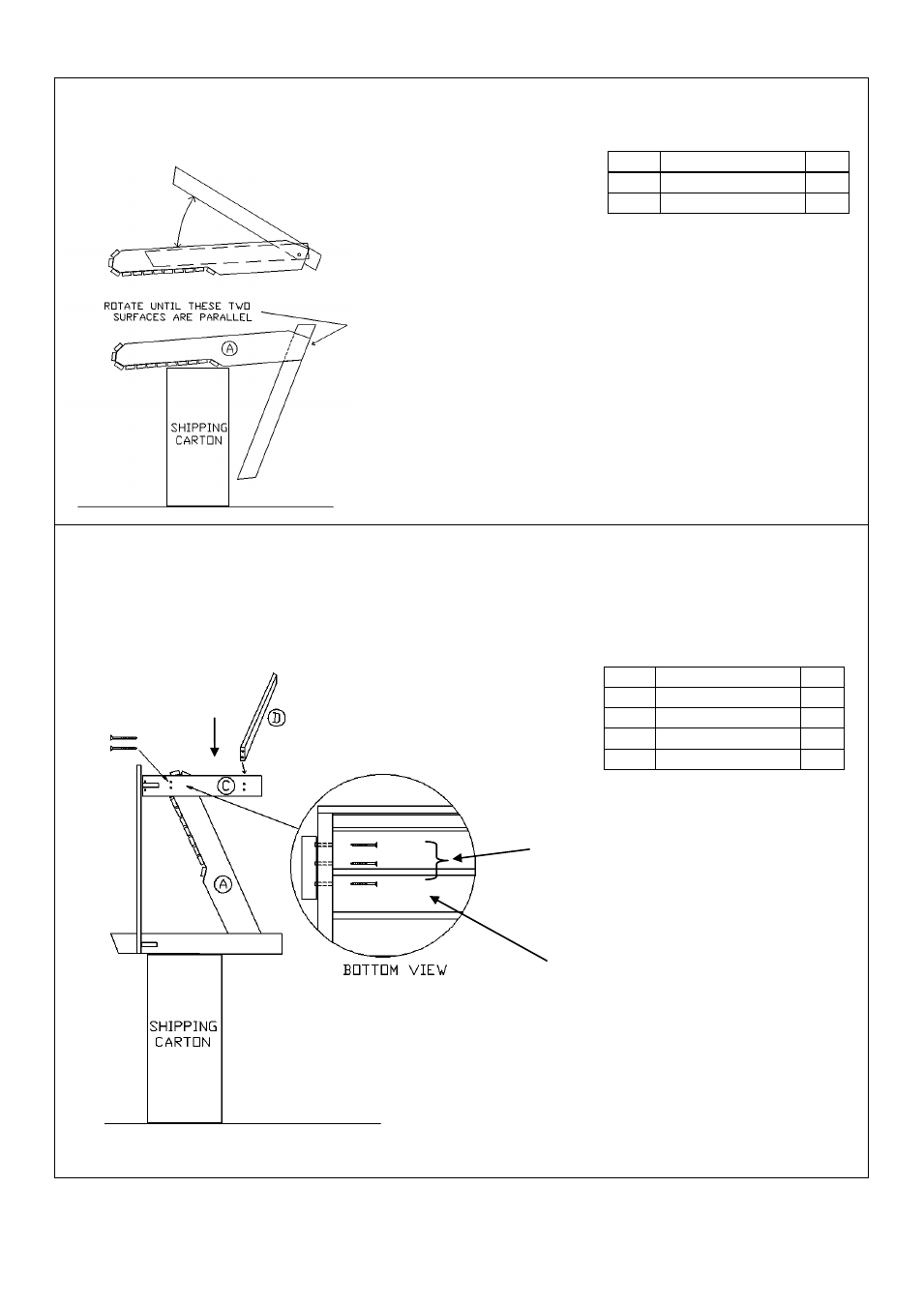

Step 1: Set the Seat (A) with attached back legs on the shipping carton with the Seat facing down. Using the
factory-installed screw as a pivot, rotate the back legs approximately 300
o
, until the ends are parallel with the long
angled edge. Secure each leg with an additional Screw in the counter-sunk holes provided.
Step 2: Set the Seat (A) on the shipping carton as shown. Insert two Screws through the holes in the Seat that are
closest to the front of the chair. Align the screws with the two indentations in the leg and secure the screws into the
leg. Drive a third screw into the third hole.
Repeat for Left Arm (C).
Step 3: Use four Screws to attach the Stringer (D) between the two front legs.
Item Description Qty
A Seat 1
1 Screws 4
Item Description Qty
B Right Arm 1
C Left Arm 1
D Stringer 1
1 Screws 14
Front of
the chair
These Screws go
in holes closest to
the front of the
chair. Insert these
first.
This screw does not
have a locating
indentation, so
secure it last
