Replacement Parts
* ‘X’s indicate timing options. Contact Beckett for available part numbers.
Section: Replacement Parts

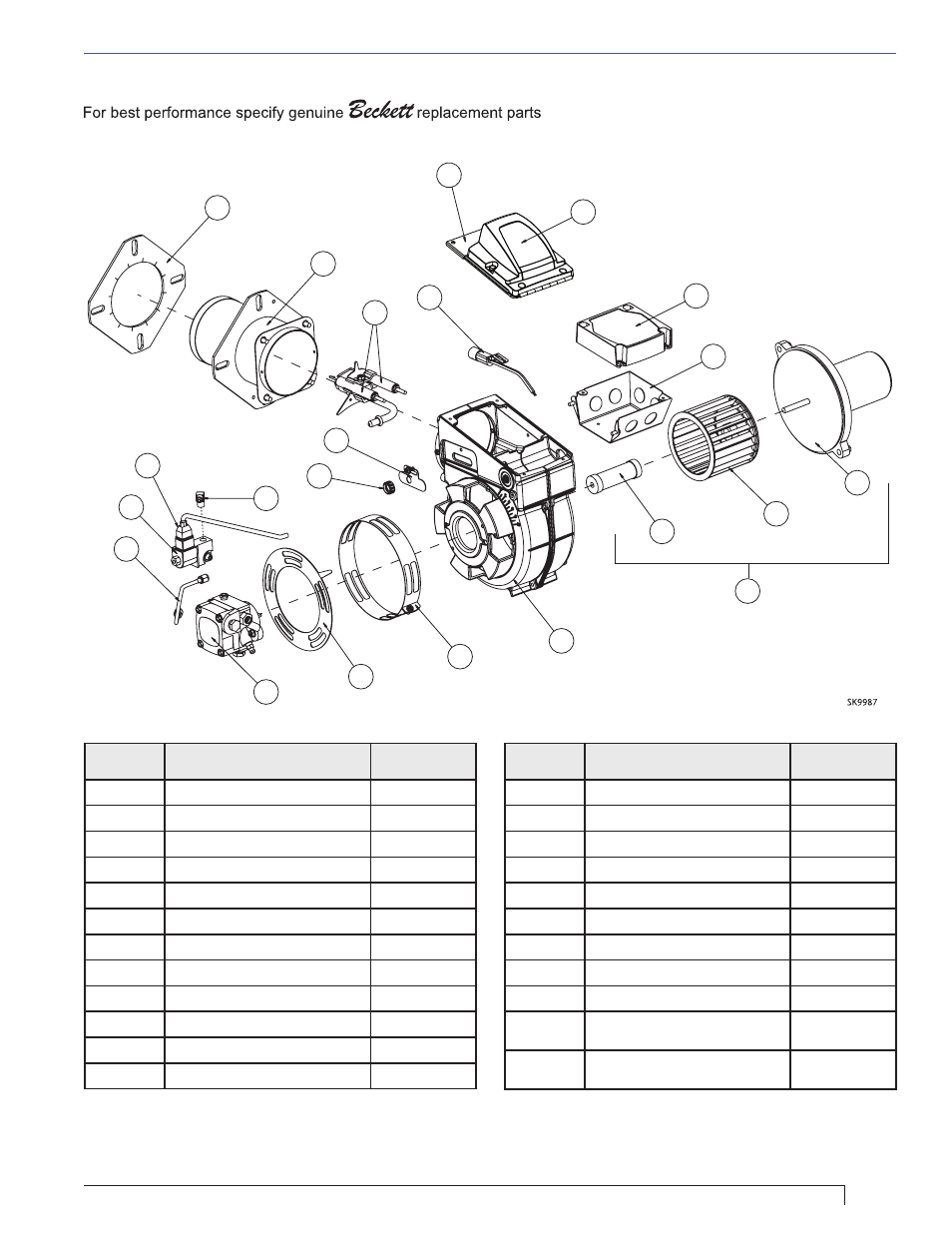

Illustration
#
Description Part#
1 DC Motor 22244U
2 Blower Wheel (6-1/4”) 2383AU
3 Coupling 2154101
4 Burner Housing
5 Air Band, 10 slot 3819A
6 Air Shutter, 10 slot 3215
7 Pump Specify
8 Connector Tube Assembly 5394
9 Oil Valve Specify
10 Brass Elbow 2256
11 Cord Set, Valve 21807
12 Splined Nut 3666
Illustration
#
Description Part#
13 Escutcheon Plate 3493
14 Electrode Kit over 3-5/8” 578731
15 Cad Cell Detector 7006U
16 4X4 Wiring Box 5770
17 Control Kit 7556X-XXXXU*
18 Igniter Assembly With Base Plate 5218303U
19 Igniter only 5218309U
20 Air Tube Assembly Specify
21 Flange Mounting Gasket Specify
22
Motor Kit with Blower Wheel and
Coupling
52146U
Not Shown Tune-up Kit for 30 and 35 Air
Tube lengths
578730
