Cleveland Range Steam Oven User Manual
Page 11
11
Inserting the Communication Module Cable into the Oven

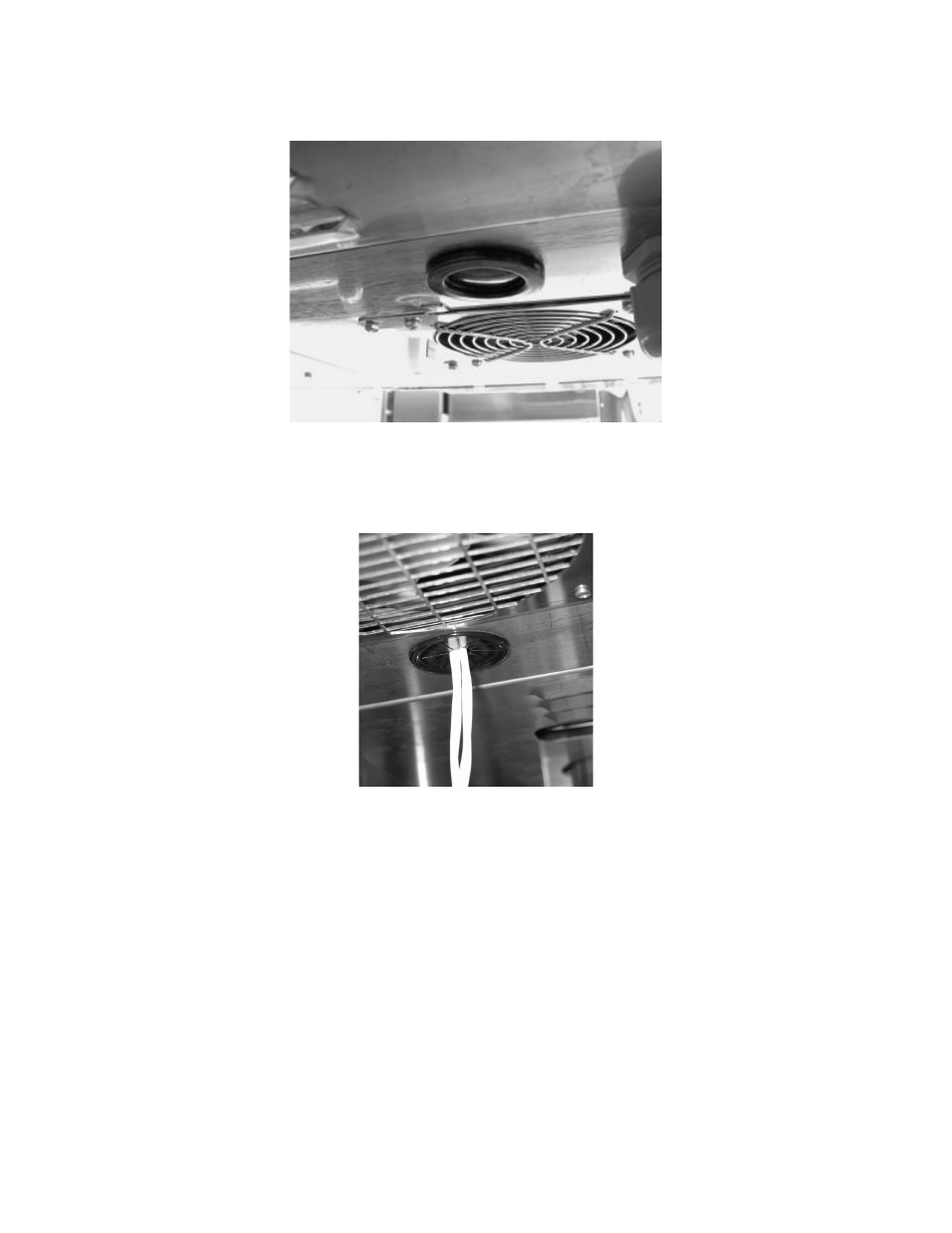

Photo 30
Remove the sanitary seal plug from the underside of the Combi.
Photo 31
Insert the new bushing, P/N 111751 into the opening.
Pull the Communication Module cable through the Bushing.
Pull enough wire through the bottom of the oven to allow ample movement while
attaching the wires to the network boards.
