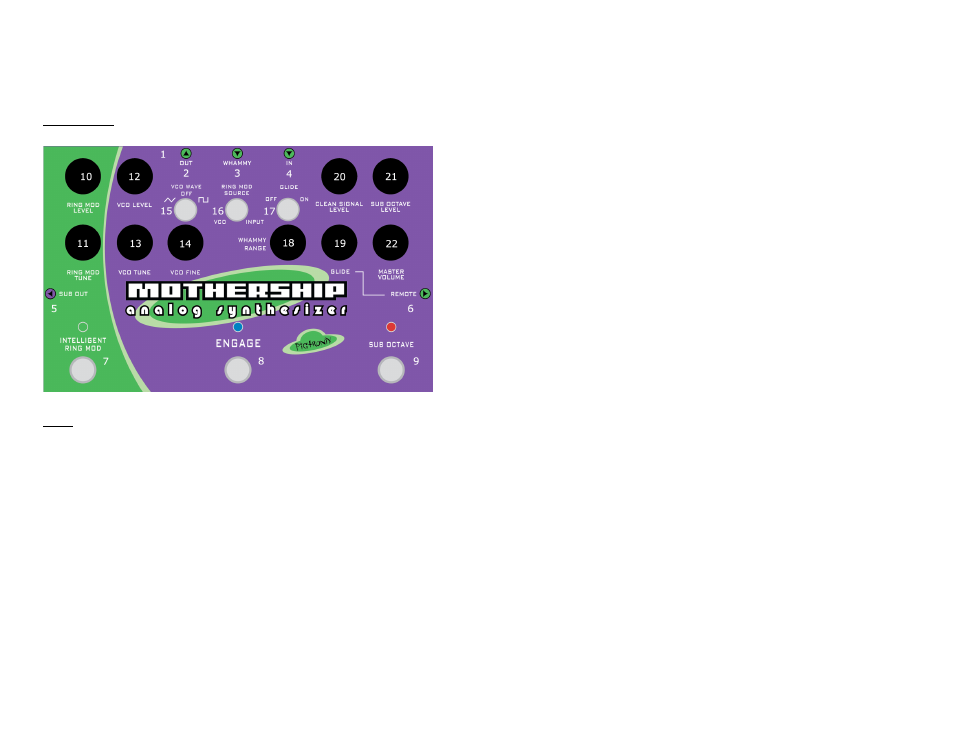

Anatomy of the Mothership:
The Interface:
Jacks:
1. DC POWER 48-VOLTS – Use only the 48-Volt, 520mA, negative tip
power supply that came with your Pigtronix Mothership. Using the
wrong power supply is likely to result in a damaged pedal.
2. OUT – Effect output, Plug in your amp, mixer, or DI box here.
3. WHAMMY – This is the TRS 20K expression pedal input for pitch bend.
4. IN – Effect input, Plug in your instrument here.
5. SUB OUT – This jack is an auxiliary output for the low frequency content
from the SUB OCTAVE and RING MODULATOR circuits only.
WARNING: The SUB OUT should only be sent to an audio system that
can handle significant amounts of low frequency content.
6. GLIDE REMOTE – This jack allows a TS latching remote switch to be
connected in order to turn the glide (portamento) effect on and off.
