Pigtronix Dual Expression pedal - Manual

ConnE ions

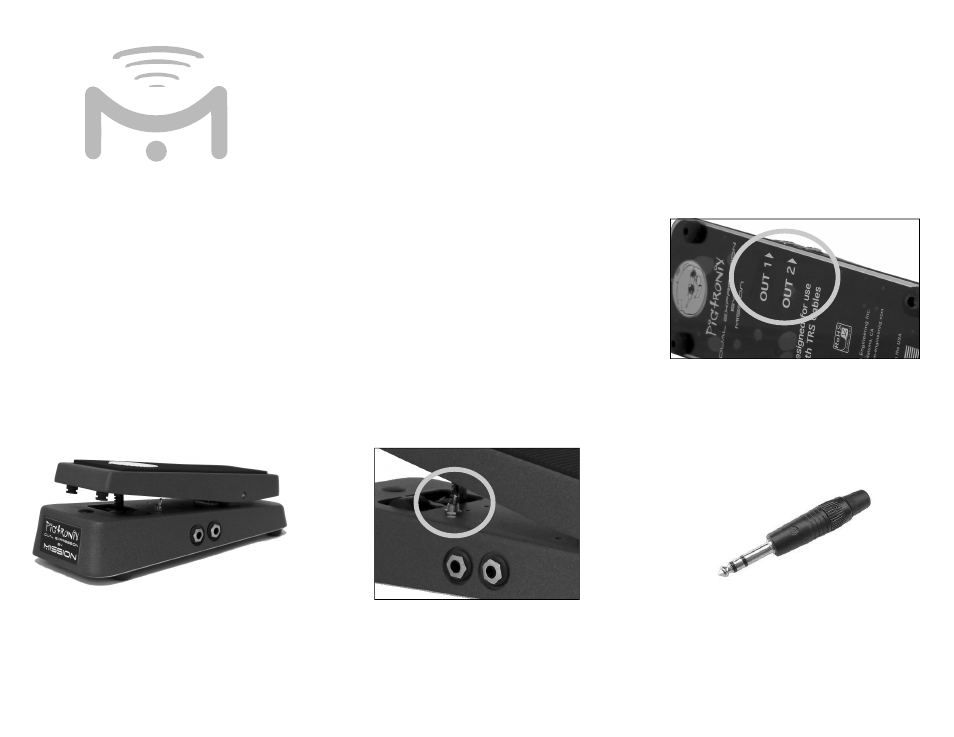

The Pigtronix Dual Expression pedal uses two ¼”
TRS phone plug outputs marked OUT1 and OUT2
on the underside of the pedal. Connect the outputs
to expression pedal inputs on your devices using
¼” TRS-TRS instrument cables such as the Mission
MCTRS3A cable. If you only intend to use the pedal
with one device, you can connect either output and
leave the other unused.
TRS stands for Tip, Ring, Sleeve and is a three-
conductor cable. It is sometimes also called a stereo
or balanced cable. The pedal requires the use of the
correct cable with a TRS connector at both ends. A
mono TS cable such as a regular guitar cable, and
insert cables that have both TS and TRS plugs, will
not work in most cases.
Figure 1. A TRS connector with the three conductors
separated by the black insulation bands. The pointed
front of the connector is the tip, the middle band is
the ring, and the large conductor at the rear nearest
the plug body is the sleeve.
Figure 1.
In odu ion
Congratulations on your purchase of the Pigtronix
Dual Expression pedal. This product is designed to
be intuitive to setup and operate, and to provide
many years of trouble free service. However, we
recommend that you take a few moments to read
through this User Guide in order to get the best
possible experience with your new pedal.
fê tur
The Pigtronix Dual Expression pedal features
two TRS expression outputs that are controlled
simultaneously from the one pedal allowing control
of two effects at the same time. A direction reversal
toggle permits one output to operate in reverse so
that two separate effects can be varied in opposite
directions for advanced expression control. The
Pigtronix Dual Expression pedal uses a full range
linear potentiometer and is designed to work with
effects pedals from many different manufacturers,
not just Pigtronix.
pow
This expression pedal is a passive device, and
requires no internal battery or external power.
DuAl
Expr sion
Pí Al
U r
Guide
MISSION
ENGINE ING
Pigtronix
