Page 21

3 x 10mm
Screw

3 x 10mm
Tapping Screw

Scre

Cem

ent

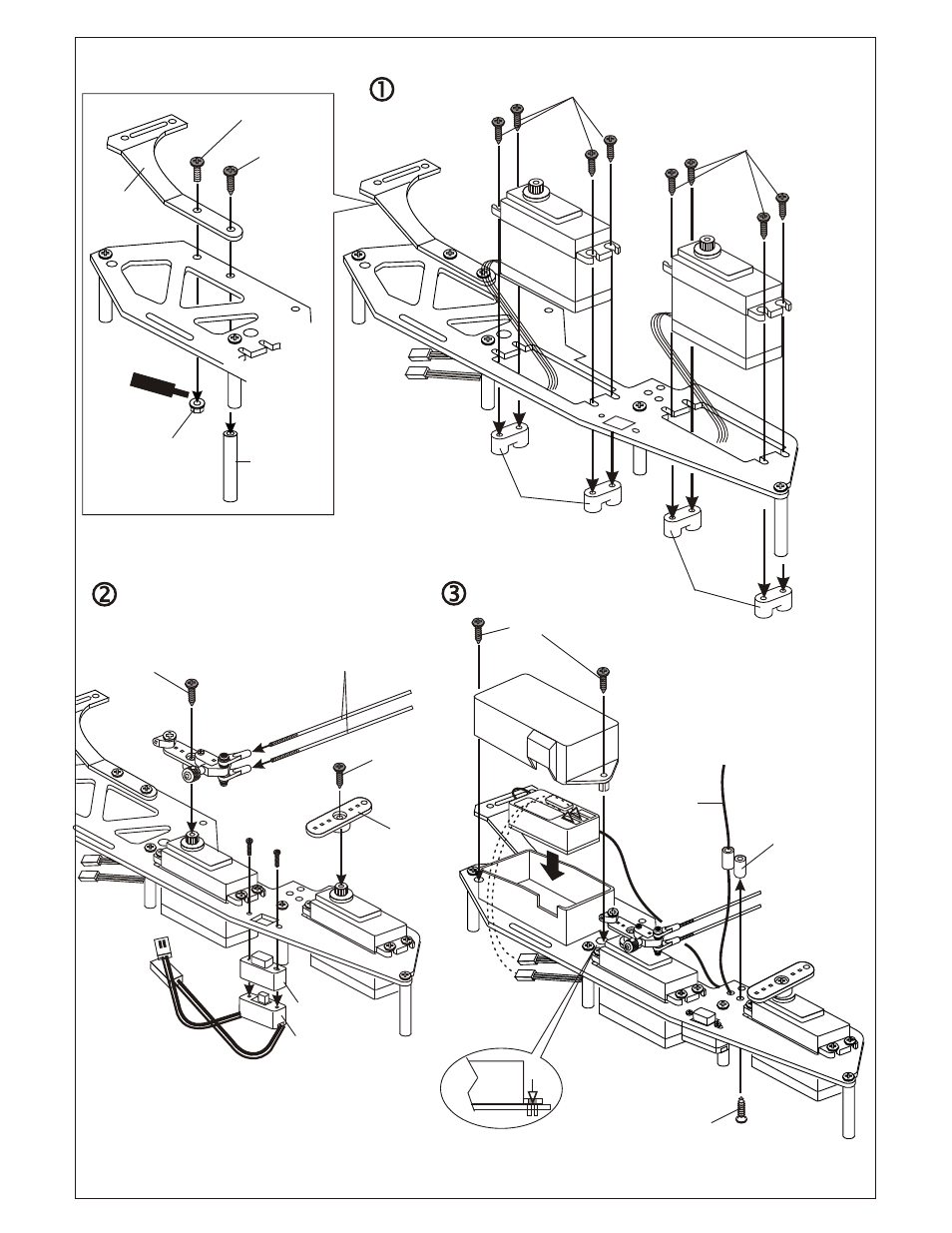

ASSEMBLY OF THE SERVO AND REAR STIFFENER

34070
Rear
Stiffener

34031
Nylon Post

3 x 10mm
Tapping Screw

Steering Servo

3 x 10mm
Tapping Screw

34020
Servo Mount

Throttle Servo

* Arrange the servo wire
under the radio tray.

* Use the screw provided
with your radio.

30172
2mm Rod

* Use the screw provided
with your radio.

Switch

10280
Switch Cover

* Use the screw provided
with your witch.

10711
Steering
Servo Horn

3 x 10mm
Tapping Screw

* Push the cover of the receiver
box into the hole on radio tray
then screw in the screw.

* Connect the wire to
receiver.

Antenna
Wire

30560
Antenna Post

* Put the antenna wire
through antenna post.

34030
Receiver Box

* Put the receiver into
receiver box.

3mm
Flange Nut
