Assembly of the front plate and steering rod – OFNA Racing Ultra MBX R2 User Manual
Page 15

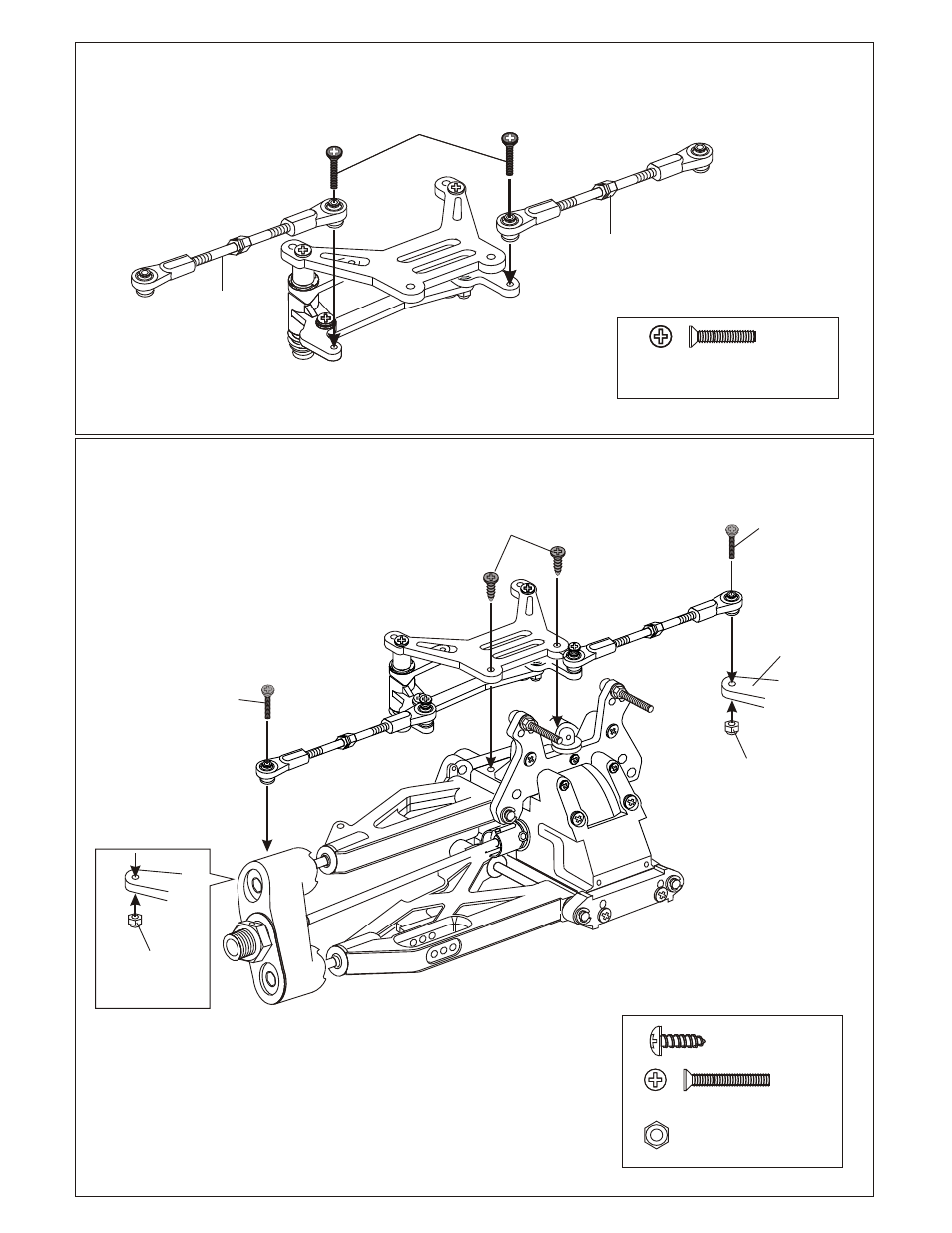

ASSEMBLY OF THE FRONT PLATE AND
STEERING ROD
3 x 15mm Flat Head
Screw
3 x 20mm Flat Head
Screw
3mm nylon
Lock Nut
3 x 15mm
Flat Head Screw
3 x 20mm
Flat Head Screw
3 x 20mm
Flat Head Screw
Front Steering Rod
( Right )
Front Steering Rod
( Left )
R
0
1
3mm
Nylon Lock Nut
3mm
Nylon Lock Nut
Knuckle Arm
( Left-Side )
3x10mm
Tapping Screw
3 x 10mm
Tapping Screw
ASSEMBLY OF THE FRONT PLATE
ONTO THE FRONT GEAR BOX
