Page 20

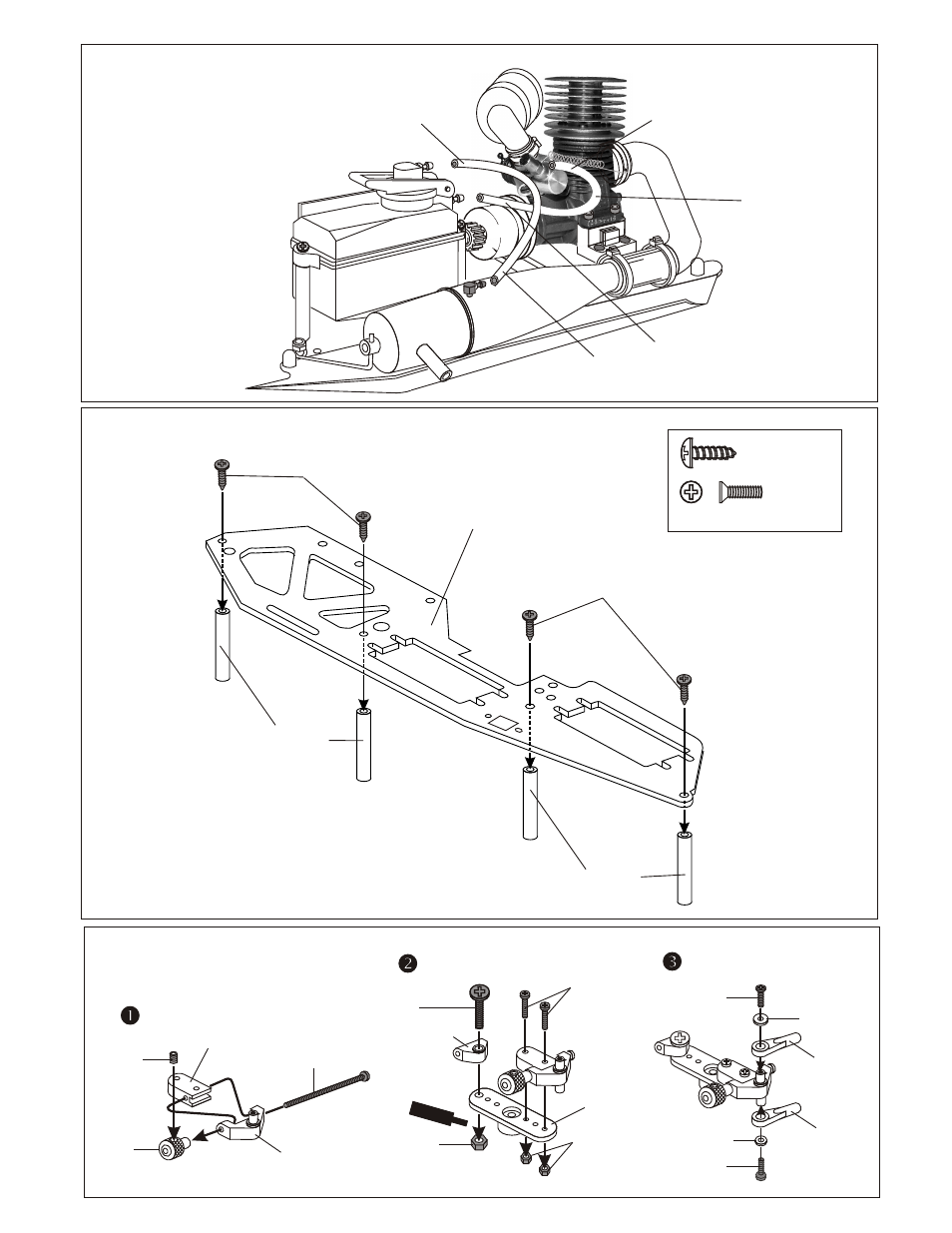

ASSEMBLY OF THE FUEL TUBE

* Connect to
fuel nipple.

* Connect to
carburetor.

* Connect to fuel tank
pressure nipple.

ASSEMBLY OF THE RADIO TRAY AND SERVO

* Connect to
press nipple.

3 x 10mm
Tapping Screw

ASSEMBLY OF THE BRAKE SYSTEM

3X3mm
Set Screw

A-80B
2mm
Adjust Nut

Servo Mount

2x25mm
Screw

( Use #30800 brake system plastic parts set. )

Adjust
Mount

3mm
Nut

Slider

3x12mm
Screw

2x8mm
Screw

2mm Nut

2mm
Tie-Rod End

2x6mm
Washer

2x4mm
Screw

Screw

Cemen

Servo Horn

3 x 10mm
Tapping Screw

30520
Radio Tray
Post, Aluminum

34031
Radio Tray
Post, Nylon

Radio Tray
Post

3 x 10 mm
Flat Head
Screw

3406
Radio Tray

Fuel Tube
