OFNA Racing Ultra MBX R2 - Manual (Page 10)

Assembly of the right and left hand side
are the same.
30151
Lower Arm Shaft
3mm
E-Ring
4 x 10mm
Tapping Screw
3mm
E-Ring
R R
* Insert drive shaft
before assembly.
4 x 10mm
Tapping Screw
3 mm E-Ring
5 x 5mm
Set Screw
* Do not over tighten
5x5mm set screw.
5x5mm
Set Screw
30152
Upper arm Shaft
3mm
E-Ring
90021
3mm
E-Ring
30102
Front Body
Post
3x8mm
Tapping Screw
0
1
R R
3 x 8mm
Tapping Screw
30701
3 x 3mm Set Screw
90021
3 mm E-Ring
3x25mm
Cap Screw
3mm
Flange Nut
0
1
36905
Caster Angle
Adjuster
* o change
the caster angle .
use adjuster t
Caster angle will
become bigger. Caster angle will
become less.

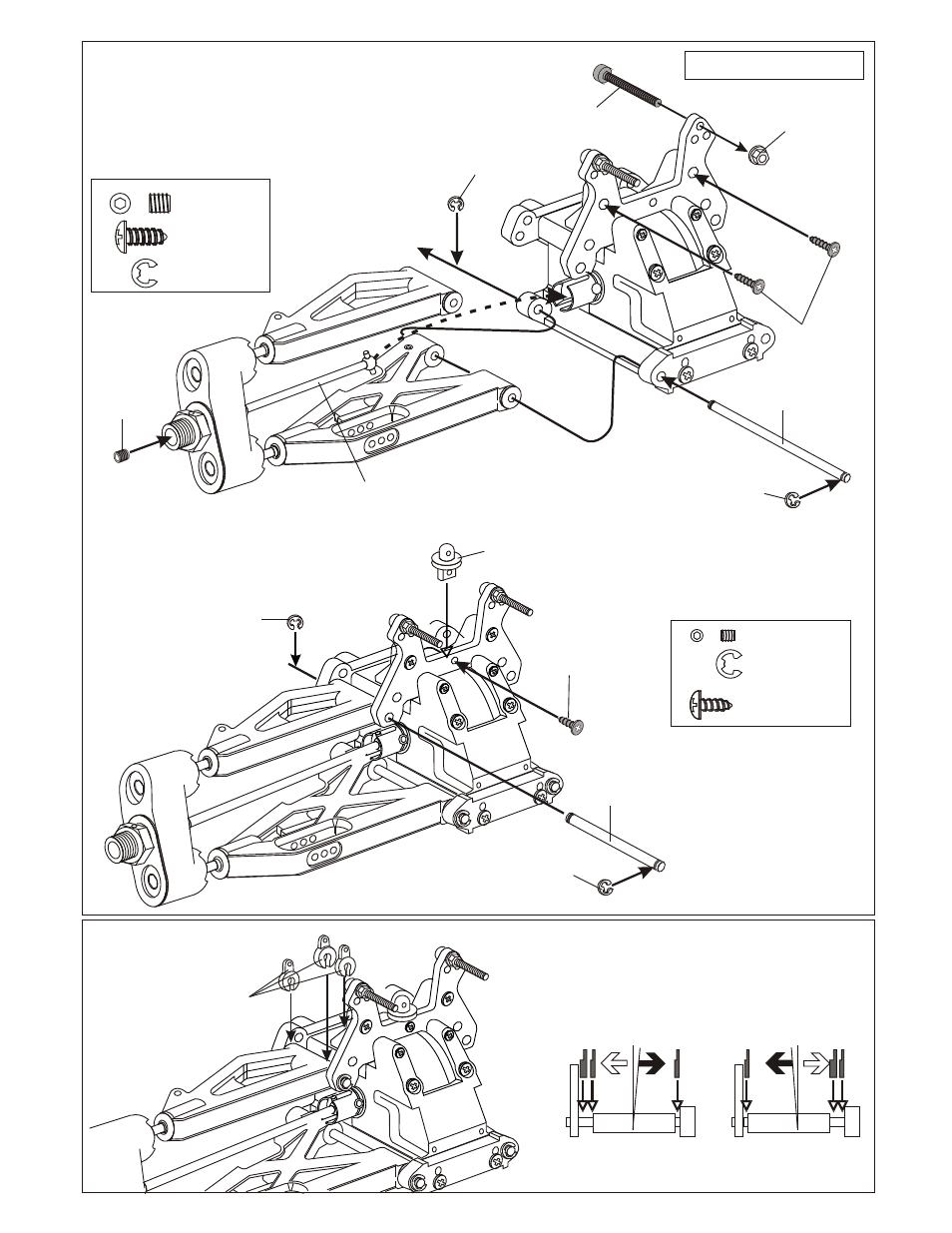

ASSEMBLY OF THE FRONT ARM ONTO GEAR BOX
ASSEMBLY OF THE CASTER ADJUSTER
