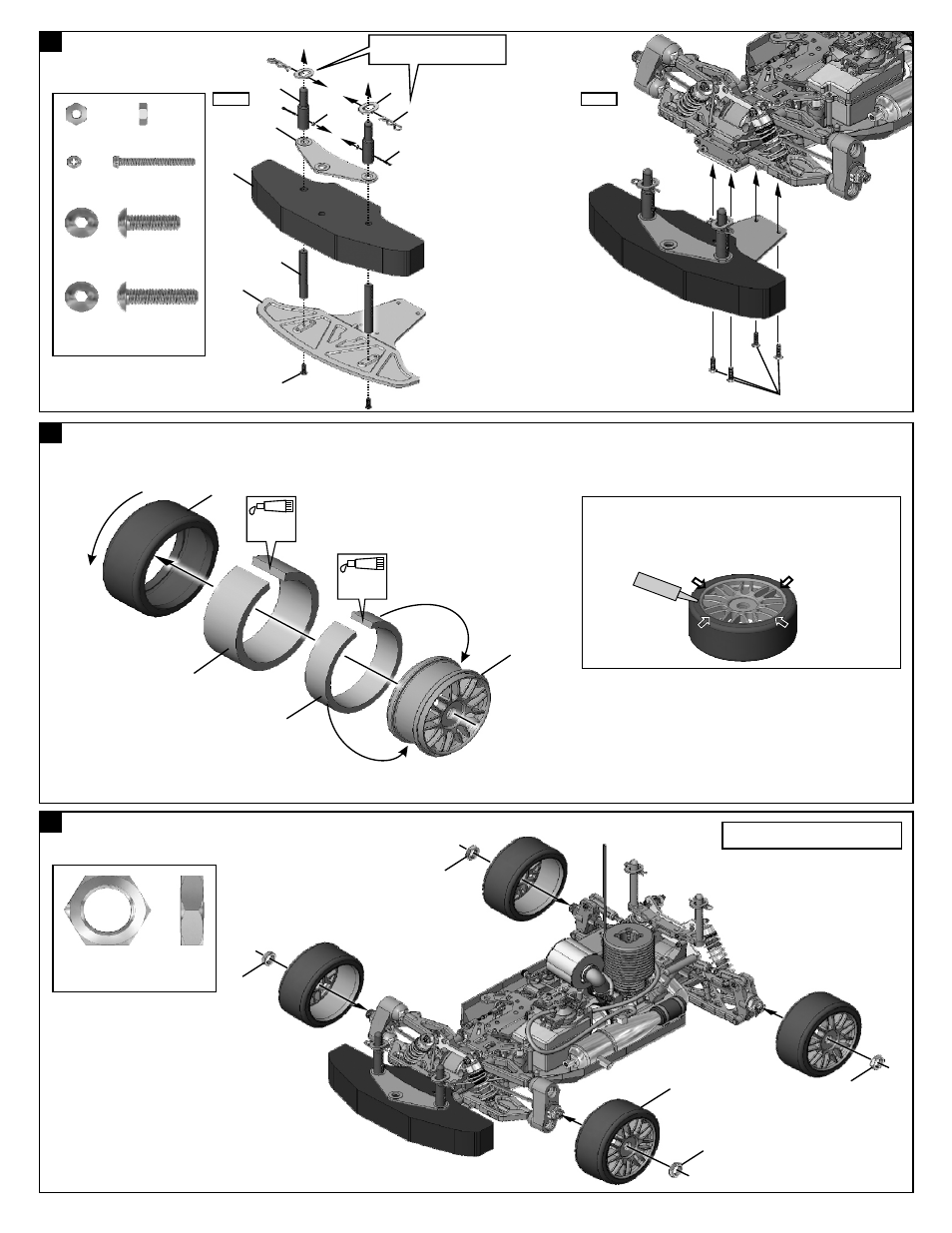

ASSEMBLY OF THE FRONT BUMPER

Step 2

Step 1

31159

34091

33011

34090

4x12mm

4x16mm

33011

2x18mm

2mm

M2 Nut

.....x2

2x18mm
Screw

.....x2

94011
4x16mm
Hex Screw

.....x4

94010
4x12mm
Hex Screw

.....x2

Choose the correct body
post pin hole for your body.

ASSEMBLY OF THE TIRES AND WHEELS

86026

86059
Inner Sponge
(WidE)

86050

86059
Inner Sponge
(Narrow)

INS

Contact
Adhesive

*Pull back the tire bead slightly and spot glue in four spots as
shown. When dry, glue the rest of the wheel between the spots.
Repeat the procedure on the other side of the wheel until fully
glued.

ASSEMBLY OF THE WHEELS ONTO THE FRONT KNUCKLE AND REAR HUB

40550

Assembly for both right and left side.

Tire and wheel
assembly.

40550
Wheel Nut

.....x4

40550

10239
