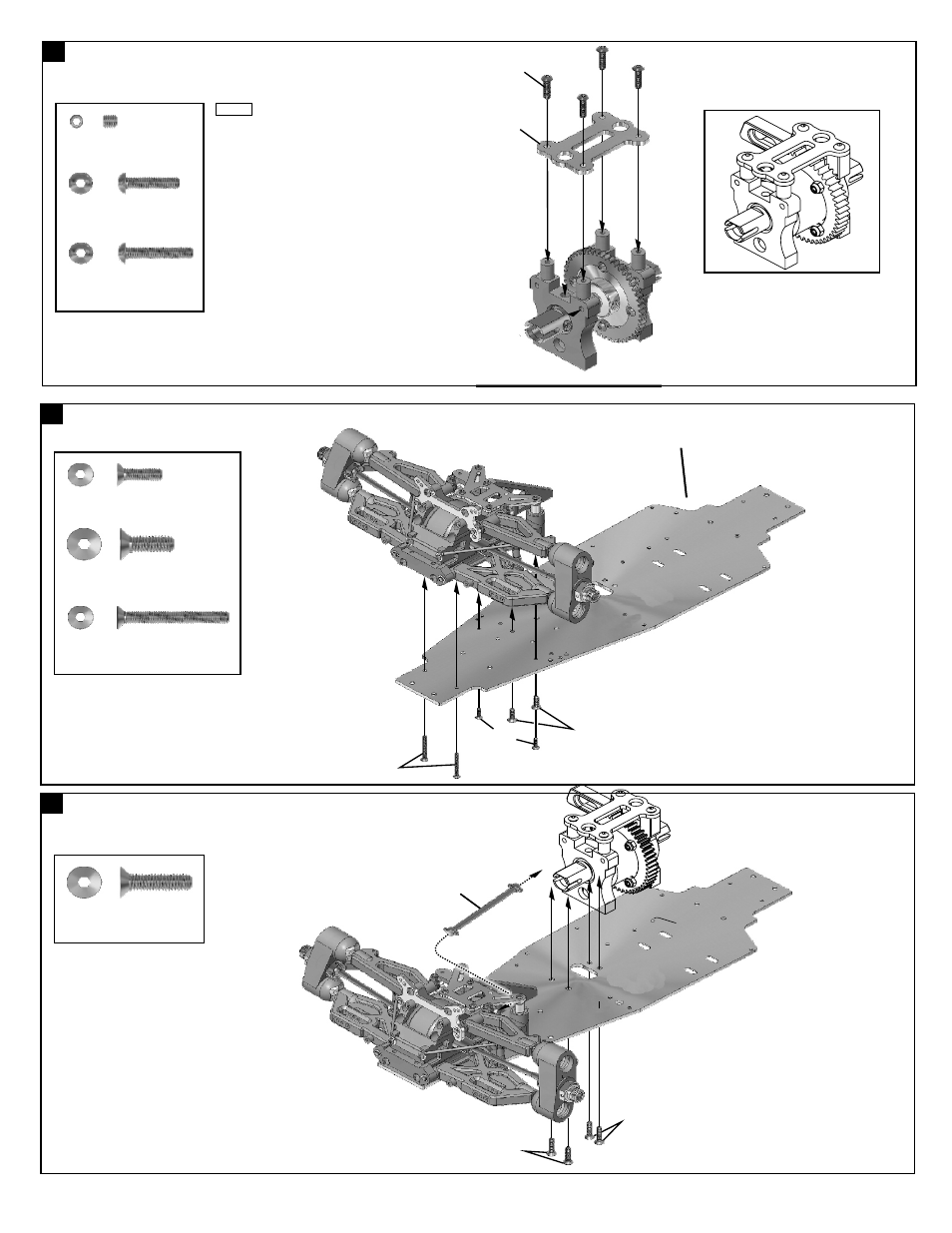

ASSEMBLY OF THE SINGLE SPEED MOUNT

94005
3x15mm
Hex Screw

.....x2

94033
3x3mm
Set Screw

.....x1

Step 1

3x12mm

30652

94004
3x12mm
Hex Screw

.....x4

24

ASSEMBLY OF THE CENTER DIFF. ONTO CHASSIS

23

94027
4x16mm
Flat Head Hex Screw .....x4

34050

4x16mm

4x16mm

*Insert the drive shaft into
the cap joint before assembly
center diff. onto chassis.

ASSEMBLY OF THE FRONT GEAR CASE ONTO CHASSIS

94019
3x10mm
Flat Head Hex Screw

.....x2

94026
4x12mm
Flat Head Hex Screw

.....x2

94023
3x25mm
Flat Head Hex Screw

.....x2

3x25mm

3x10mm

4x12mm

34056

TOOLS NOT INCLUDED IN THE KIT

Cutter

Curved Scissors

Craft Knife

Precision Caliper

Needle Nosed Pliers

Equipment Needed

Included Items

1.5mm Allen Wrench

2mm Allen Wrench

2.5mm Allen Wrench
