25

26

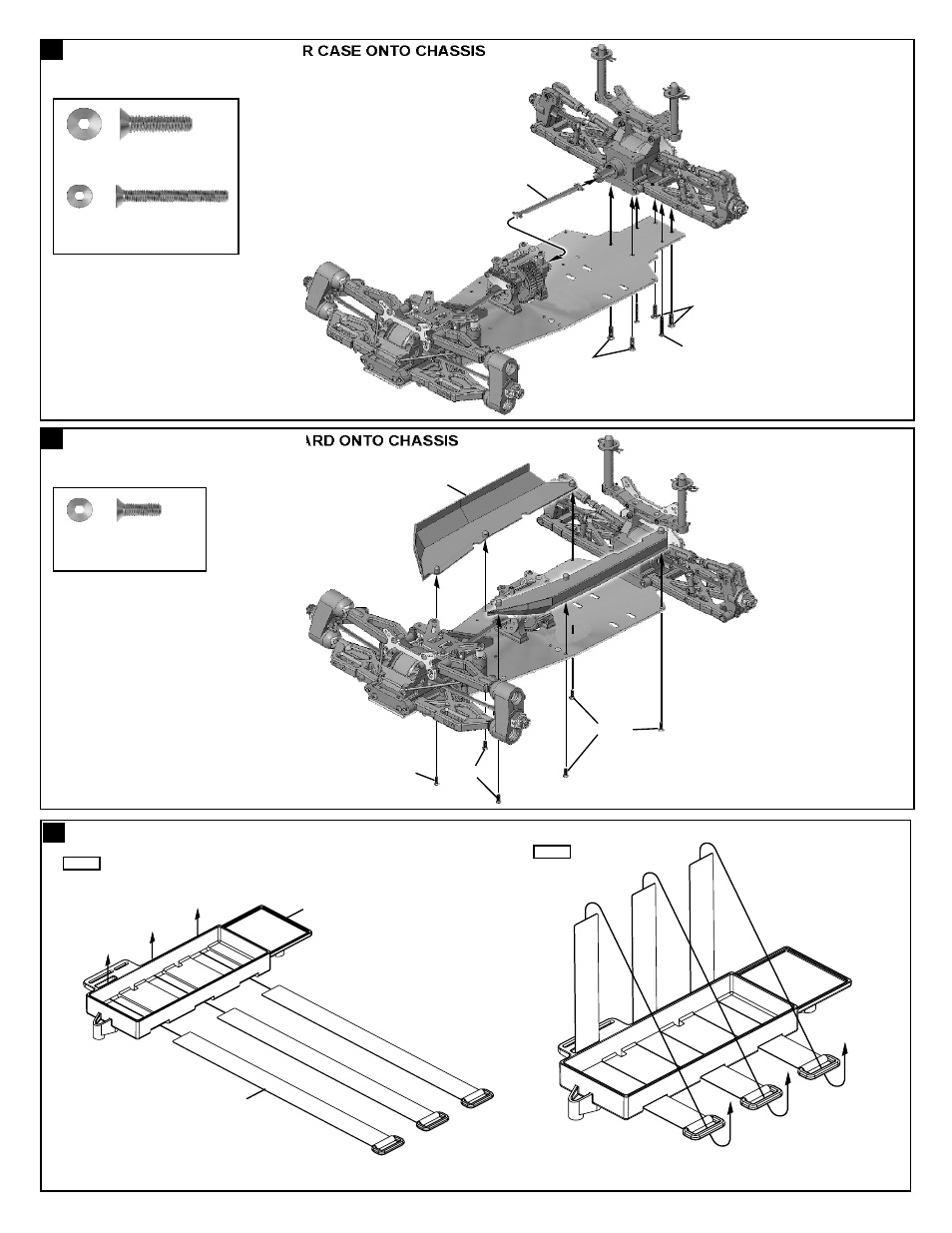

ASSEMBLY OF THE STONE GUARD ONTO CHASSIS

94019
3x10mm
Flat Head Hex Screw

.....x6

3x10mm

34080

3x10mm

3x10mm

ASSEMBLY OF THE REAR GEAR CASE ONTO CHASSIS

94027
4x16mm
Flat Head Hex Screw

.....x4

94023
3x25mm
Flat Head Hex Screw

.....x2

4x16mm

4x16mm

3x25mm

34050

*Insert the drive shaft into
the cap joint before assembly
rear gear box onto chassis.

ASSEMBLY OF VELCRO STRAP INTO BATTERY CASE

Step 1

Step 2

30662

30663

27
