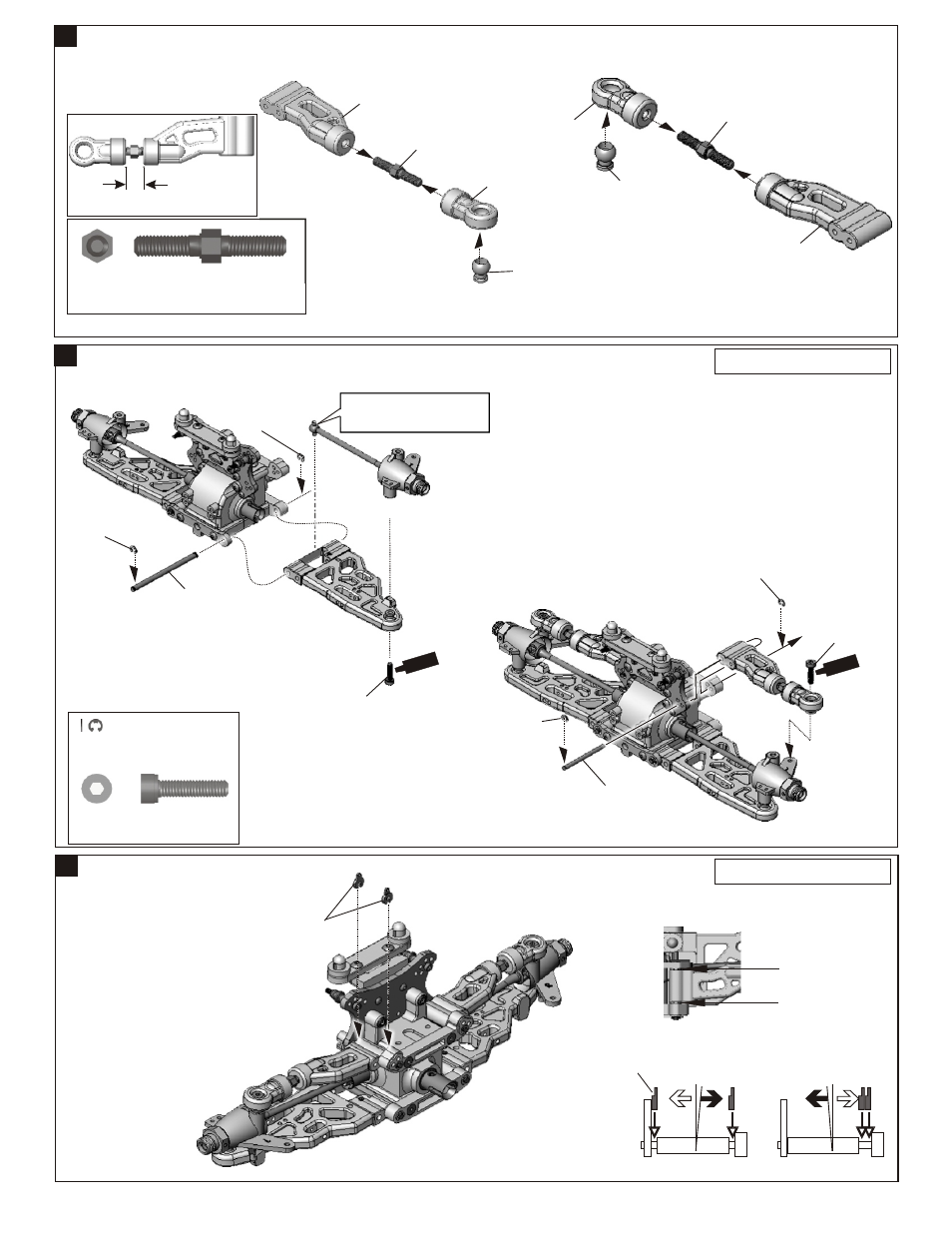

10 CLIP IN THE CASTER ADJUSTER
4
40101
Caster Adjuster
B
A
*Use adjuster to change
the caster angle.
*Caster angle will
become bigger. *Caster angle will
become less.
Caster Adjuster
9 ASSEMBLY OF THE FRONT SUSPENSION ARMS
40104
4X16mm .......X2
Cap Screw
40104
4X16mm
Cap Screw
36170
Arm Shaft(3mm)
90020
2.5mm
E-Ring
90020
2.5mm
E-Ring
Assembly for both right and left side
Assembly for both right and left side
90020
2.5mm .......X4
E-Ring
Insert the front drive shaft into
cap joint before assembly
the front lower arm.
90021
3mm
E-Ring
90021
3mm
E-Ring
40023
Lower Arm
Shaft(4mm)
40104
4X16mm
Cap Screw
8 ASSEMBLY OF THE FRONT UPPER ARMS
40104
10mm
Ball and Socket
40104
10mm
Ball and Socket
36860
5X35mm
Turnbuckle
36860
5X35mm
Turnbuckle
40101
Front Upper
Arm(Left)
40101
Front Upper
Arm(Right)
40101
Front Upper
Arm Ball End
40101
Front Upper
Arm Ball End
36860 .......x2
5X35mm
Turnbuckle
Approx. 11mm
A B A B
cre w
S
C
t
eme n Sc e r w
C m
ent e
