20
BASIC OPERATION

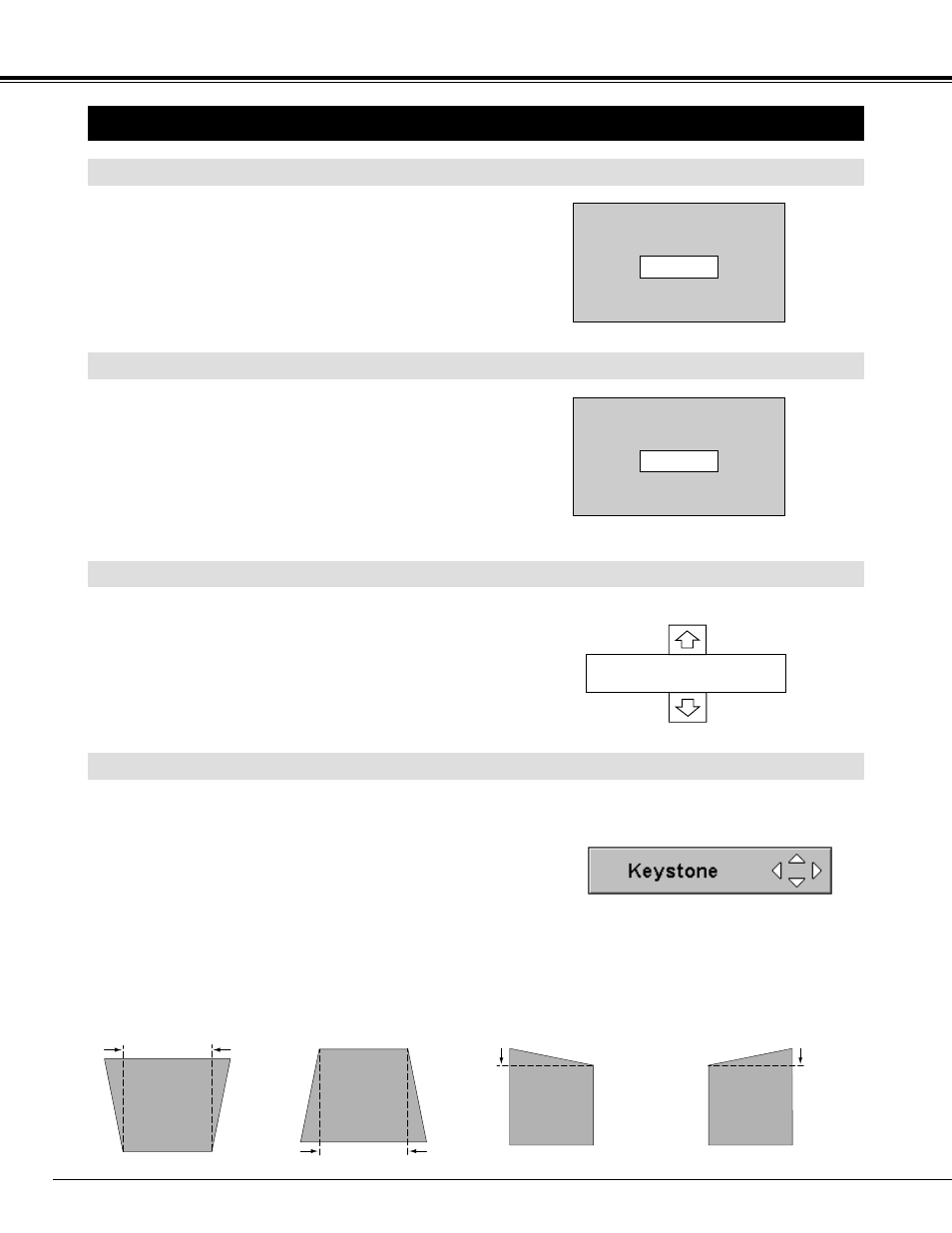

ADJUSTING SCREEN
Message disappears after 4 seconds.
Message disappears after 4 seconds.
Zoom
Focus
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1 Press ZOOM button on Top control panel or ZOOM ▲ / ▼ button
on Remote Control Unit. Message “Zoom” is displayed.
2 Press ZOOM ▲ button or the POINT UP button to make image
larger, and press ZOOM ▼ button or the POINT DOWN button
to make image smaller.
1 Press FOCUS button on Top control panel or FOCUS ▲ / ▼
button on Remote Control Unit. Message “Focus” is displayed.
2 Adjust focus of image by pressing FOCUS ▲ / ▼ button or the
POINT UP/DOWN button(s) .
Lens shift
LENS SHIFT ADJUSTMENT
1 Press LENS SHIFT button on Top control panel or LENS SHIFT
▲ / ▼ button on Remote Control Unit. Message “Lens shift” is
displayed.
2 Press the POINT UP button or LENS SHIFT ▲ button to move
image up, press the POINT DOWN or LENS SHIFT ▼ button to
move image down.
KEYSTONE ADJUSTMENT
1 Press KEYSTONE button on Remote Control Unit or select
Keystone on SETTING menu. (Refer to page 35.) Keystone
dialog box appears.
2 Correct keystone distortion by pressing the POINT
UP/DOWN/LEFT/RIGHT button(s). Press the POINT UP button
to reduce the upper part of the image, and press the POINT
DOWN button to reduce the lower part. Press the POINT LEFT
button to reduce the left part, and press the POINT RIGHT
button to reduce the right part.
Reduce the upper width
with the POINT UP button.
Reduce the lower width with
the POINT DOWN button.
If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.
Reduce the left part with
the POINT LEFT button. Reduce the right part with
the POINT RIGHT button.
• Arrows are white in no correction.
• Arrow(s) of direction being corrected turn(s) red.
• Arrow(s) disappear(s) at the maximum
correction.
NOTE;
Focus adjustment may not function properly if the image is
corrected by KEYSTONE adjustment.
