ቢ PGM 1 and PGM 2 input GAIN TRIM controls are used to adjust input level. With the Program Faders (see ቩ) at
maximum, set controls to give a peak reading of +4 on the meter. Set the Master Level to minimum while adjusting). It is
always best to run the input level at +4 to +7. Use the MASTER LEVEL (see
ታ) control to adjust the volume at the
MASTER OUT (see
ት).
ባ BASS and TREBLE controls provide deep cut, Accelerated Slope™ EQ for PGM 1 and PGM 2. This unique EQ design
makes it possible to eliminate “high end” or “bass beat” without changing the sound of the vocals. The graph shown in
Figure 1 indicates the response of the filters.
ቤ BALANCE controls are used for LEFT/RIGHT balance of PGM 1 and PGM 2 or for LEFT/RIGHT Pan effect. Push the
control to the left and sound moves to the left channel. Push the control to the right and sound moves to the right channel.
ብ EFFECTS engage switches are provided for PGM 1 and PGM 2. These two switches determine the location of a single,
assignable, stereo EFFECTS LOOP.
‘ With PGM 1 and PGM 2 EFFECTS switches both out, the EFFECTS LOOP is not engaged.
‘ Push PGM 1 EFFECTS switch only, and the EFFECTS LOOP is inserted pre-Program Fader PGM 1.
‘ Push PGM 2 EFFECTS switch only, and the EFFECTS LOOP is inserted pre-Program Fader PGM 2.
‘ Push both PGM 1 and PGM 2 EFFECTS switches, and the EFFECTS LOOP is inserted post-Crossfader Master.
Figure 1. Bass & Treble Controls
6V9DPÃQS@8DTDPIÃASRfV7 ‰† Ã6VBГ('Г )"#)#!
'
&$
&
%$
%
$$
$
#$
#
"$
"
!$
!
$
$
$
$
!
!8C6Iq7
! x x !x
AS@RC“

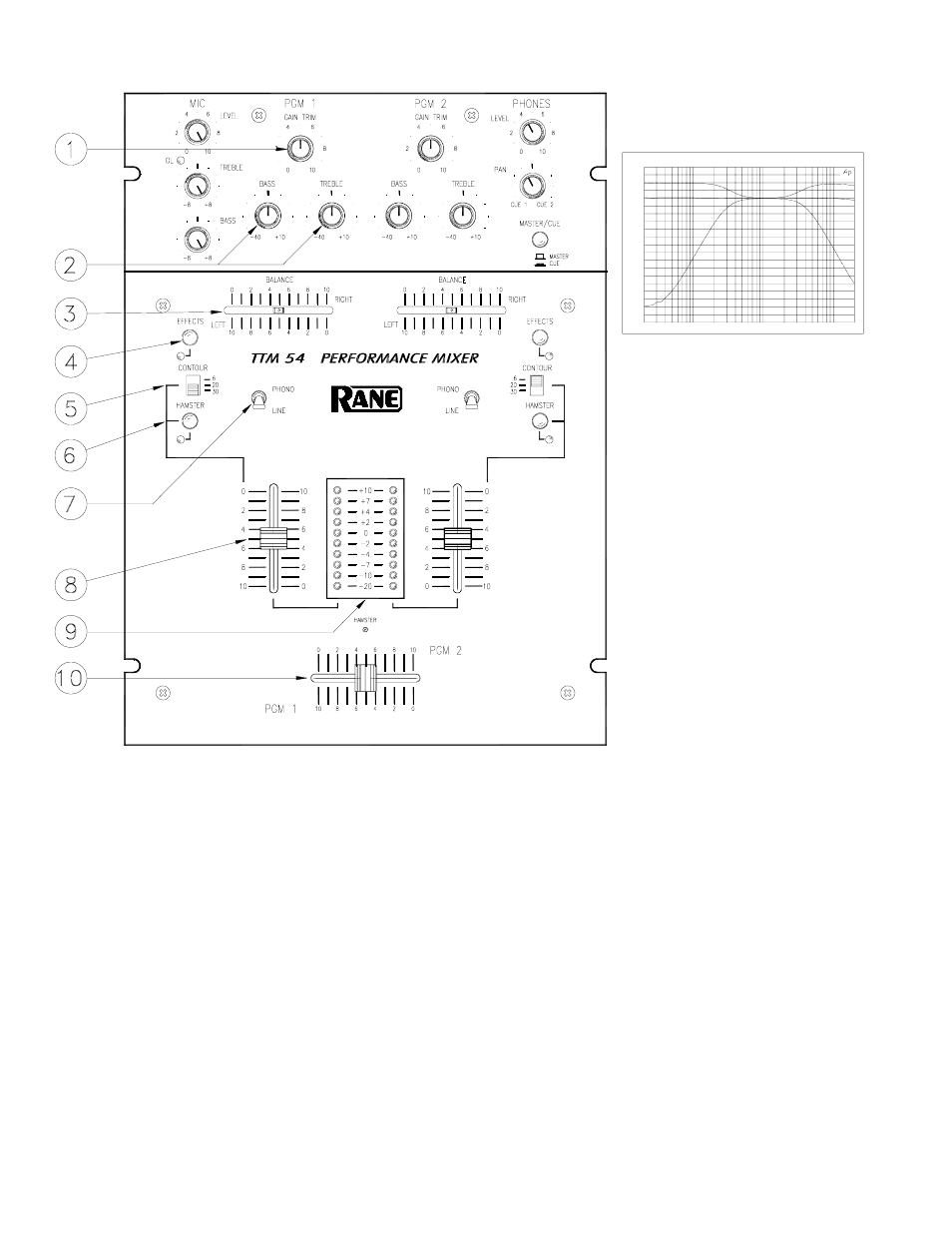

Front and Rear Panel Descriptions
