Rane TTM 52i - Manual (Page 2)

Manual-2

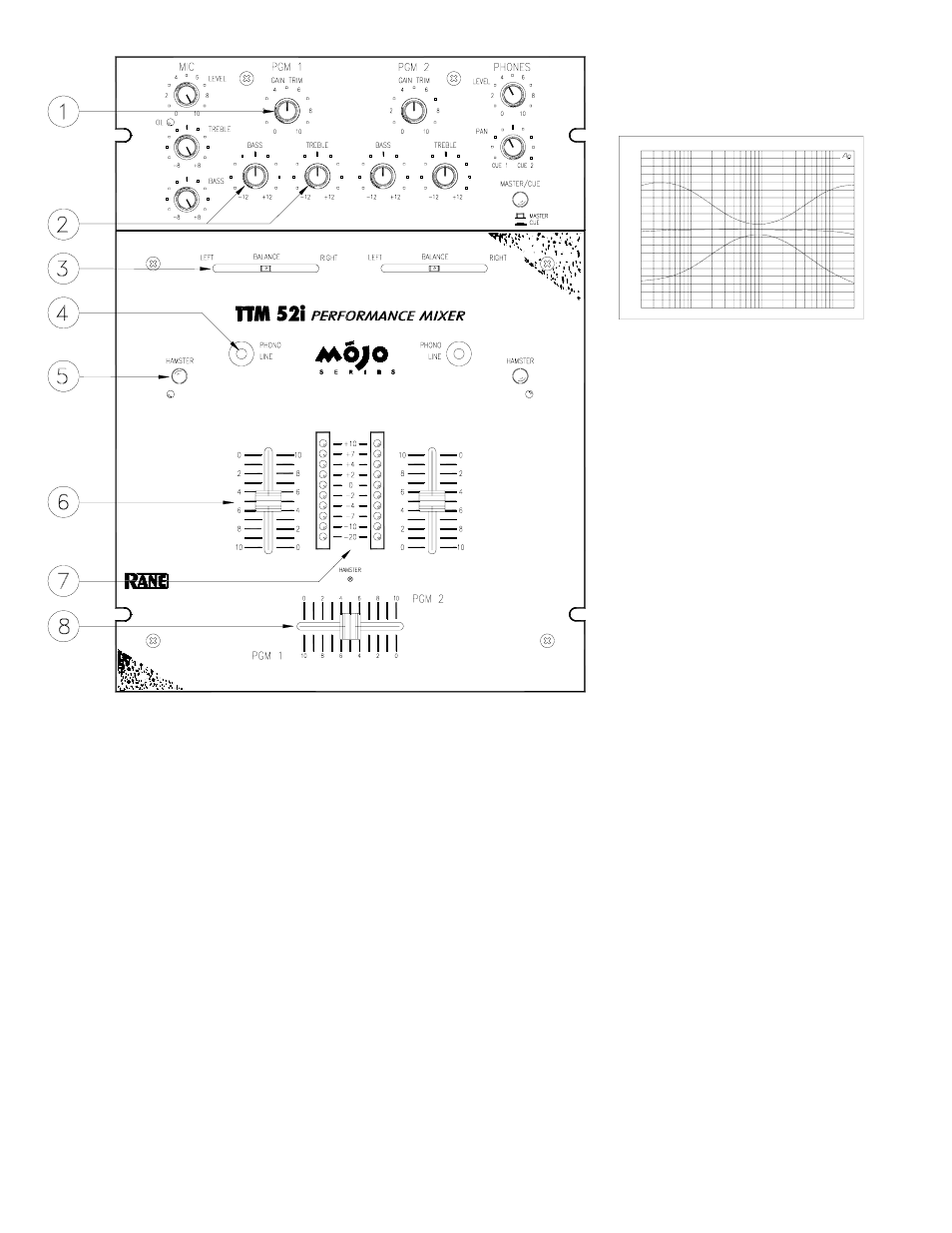

ቢ PGM 1 and PGM 2 input GAIN TRIM controls are used to adjust input level. With the Program Faders (see ቧ) at
maximum, set controls to give a peak reading of +4 on the meter. Set the Master Level to minimum while adjusting). It is
always best to run the input level at +4 to +7. Use the MASTER LEVEL (see
ቱ) control to adjust the volume at the
MASTER OUT (see
ታ).
ባ BASS and TREBLE controls provide ±12 dB of EQ for PGM 1 and PGM 2. The graph shown in
Figure 1 indicates the response of the filters.
ቤ BALANCE controls are used for LEFT/RIGHT balance of PGM 1 and PGM 2 or for LEFT/RIGHT Pan effect. Push the
control to the left and sound moves to the left channel. Push the control to the right and sound moves to the right channel.
ብ PHONO / LINE source select switches are provided for PGM 1 and PGM 2. These are “clickless” switches suitable for
“transform scratch” applications. The switches are field replaceable and may be rotated in 45° increments. See Figure 4 on
page Manual-6 for rotation and replacement instructions.
ቦ HAMSTER switches are provided for PGM 1 and PGM 2 Program Faders. These switches reverse the operation of the
adjacent Program Fader. When engaged, signal is off with the Program Fader up, and maximum with the Program Fader
down.
ቧ Program Fader controls for PGM 1 and PGM 2 are ultra low noise, long-life, monorail devices. An ActiveFader™ design
completely isolates the control element from the audio, providing the highest reliability and performance. See page
Manual-6 for cleaning and replacement instructions.
Figure 1. Bass & Treble Controls
AUDIO PRECISION AMP-FREQ vs 04 NOV 98 08:11:55
-20.00
-18.00
-16.00
-14.00
-12.00
-10.00
-8.000
-6.000
-4.000
-2.000
0.0
2.0000
4.0000
6.0000
8.0000
10.000
12.000
14.000
16.000
18.000
20.000
AMPL(dBu)
20 100 1k 10k 20k
FREQ(Hz)
