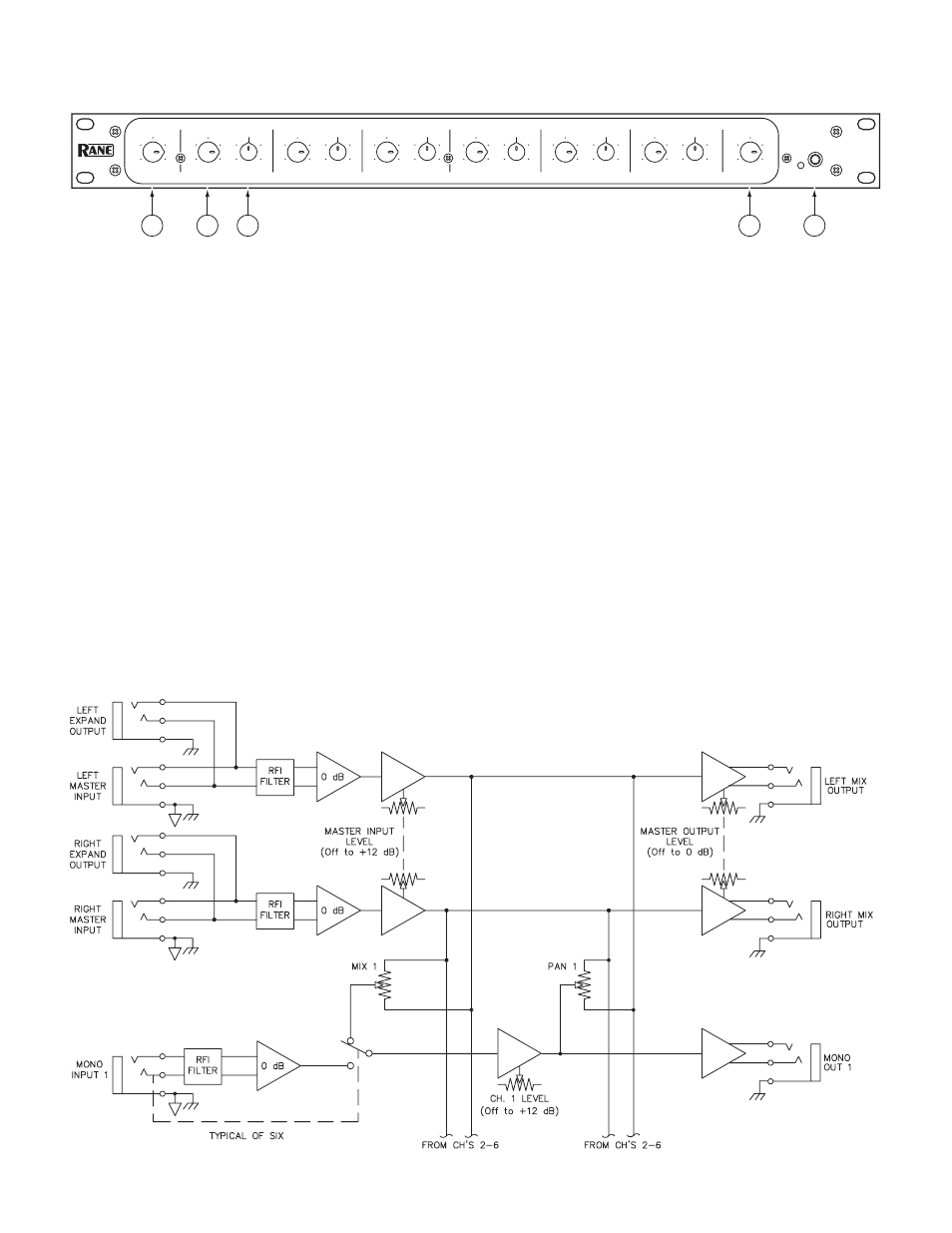

Front Panel Description
1 MASTER OUTPUT LEVEL controls the amount of signal at the MIX OUTPUT jacks. It does not affect the level of any of the
six MONO OUTs. This control changes the gain of the output stages. This allows an increase in headroom to eliminate over-
loading due to excessive combined signal from one or more Inputs. Range of gain is from Off to 0 dB (unity). Refer to the block
diagram below.
2 Mono Input LEVEL controls the Level of signal through each particular channel. When fed from the MONO IN jack, each
stage has a gain range from Off to +12 dB minimum, allowing level matching of -10 dBV equipment to +4 dBu gear. When fed
via the LEFT & RIGHT INPUT(s), these LEVEL controls automatically limit to a maximum of unity gain to accommodate the
+12dB available from the Left & Right Input gain stages.
3 MIX / PAN serves two different functions:
MIX : When used as a SPLITTER, this controls the mix of Left and Right Master Input program to each channel’s MONO
OUT.
PAN : When used as a MIXER, this control pans the Mono channel Input between the LEFT and RIGHT MIX OUTPUTS.
4 MASTER INPUT LEVEL sets the gain of the Left & Right Master Input stages, with a range of Off to +12 dB. In the splitting
mode, this controls the Level of all Mono channel Outputs at once (i.e., those which do not have a separate input).
5 POWER switch & indicator: Two guesses... When this yellow LED is lit, the SM 26B is ready to go.
MIXER
SPLITTER
10 0
2
4
8
6
10 0
2
4
8
6
10 10
6
2
6
2
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
10 10
6
2
6
2
10 10
6
2
6
2
10 10
6
2
6
2
10 10
6
2
6
2
10 10
6
2
6
2
MASTER
OUTPUT
2 3 4 5 6 1
POWER
MASTER
INPUT
SM 26B
LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL MIX / PAN MIX / PAN MIX / PAN MIX / PAN MIX / PAN MIX / PAN
1 2 3 4 5
