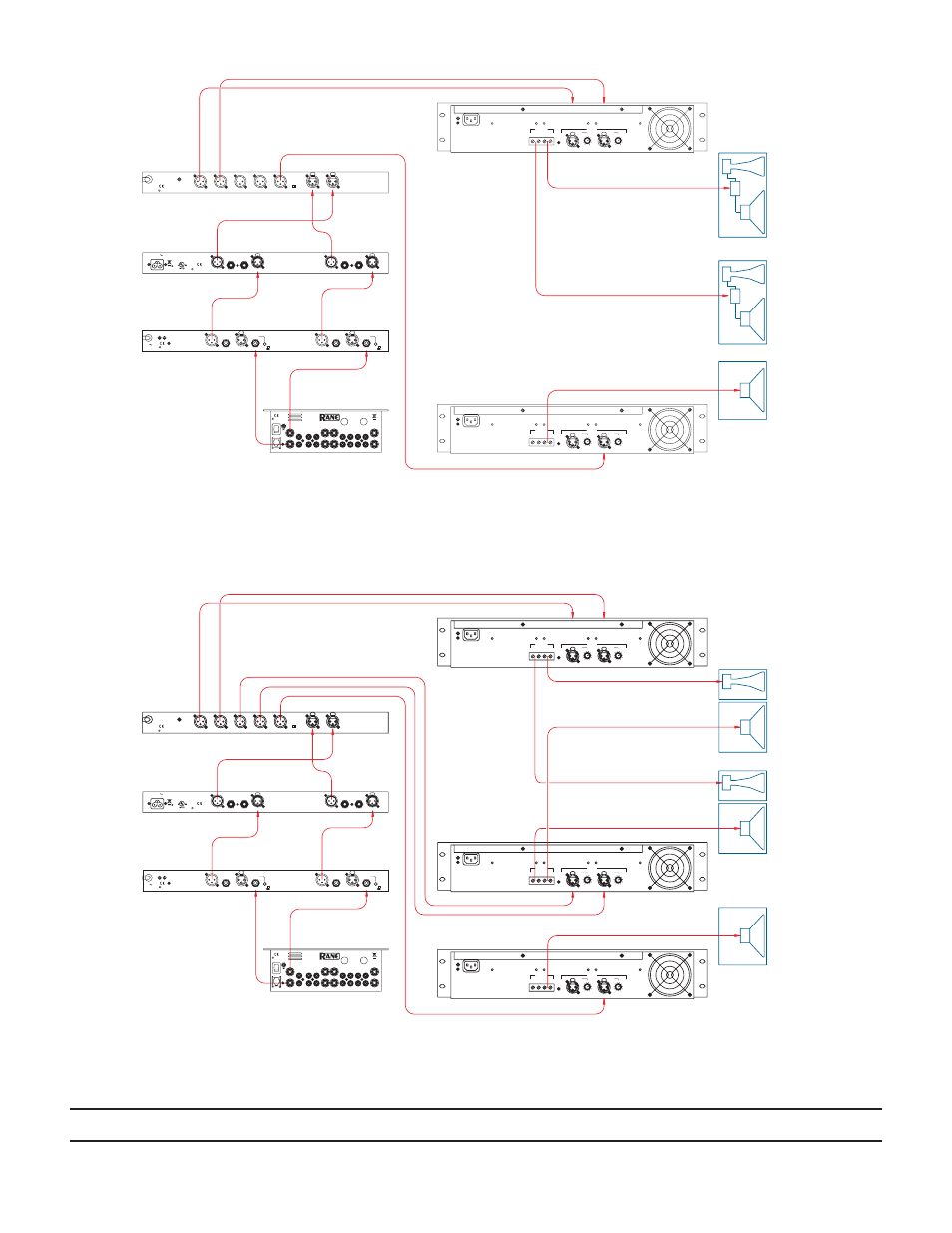

APPLICATION — Active 2-Way with (or without) Mono Sub
Use this configuration if you have separate speaker inputs for the low and high drivers, regardless of whether they are in the same
or different cabinets. Connect as shown for a mono subwoofer. Set the SUB 100 Hz FILTER switch to the IN position. If a mono
subwoofer is not used, the FILTER switch setting will not matter. The front panel LOW / HIGH control determines the frequency
division between the high and low drivers, and the sub also receives the frequencies below 100 Hz.
Use this configuration if you have full-range cabinets with passive crossovers built-in, i.e., no separate speaker inputs for the low and
high drivers. Connect as shown for a mono subwoofer. Set the SUB 100 Hz FILTER switch to the OUT position. The front panel
LOW / HIGH control determines the frequency division between the main cabinets and the mono subwoofer.
APPLICATION — Passive 2-Way with Mono Sub
