Manual-4

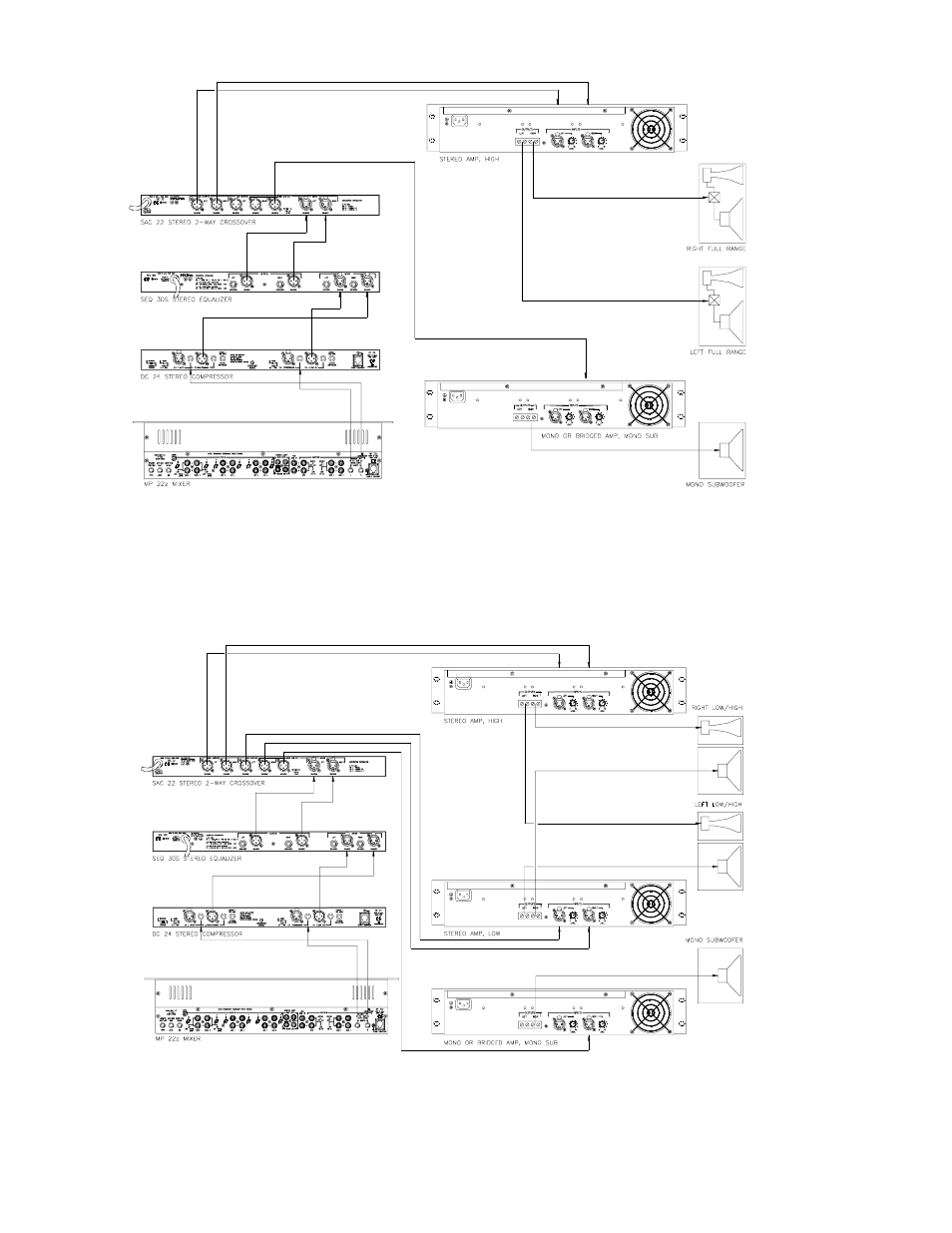

APPLICATION — ACTIVE 2-WAY WITH (or without) MONO SUB
Use this configuration if you have separate speaker inputs for the low and high drivers, regardless of whether they are in the
same or different cabinets. Connect as shown for a mono subwoofer. Set the 100 Hz FILTER switch to the IN position. If a
mono subwoofer is not used, the FILTER switch setting will not matter. The front panel LOW/HIGH FREQUENCY control
determines the frequency division between the high and low drivers, and the subwoofer also receives the low frequencies
below 100 Hz.
Use this configuration if you have full-range cabinets with passive crossovers built-in, i.e., no separate speaker inputs for
the low and high drivers. Connect as shown for a mono subwoofer. Set the 100 Hz FILTER switch to the OUT position. The
front panel LOW/HIGH frequency control determines the frequency division between the main cabinets and the mono
subwoofer.
APPLICATION — PASSIVE 2-WAY WITH MONO SUB
