Manual-3

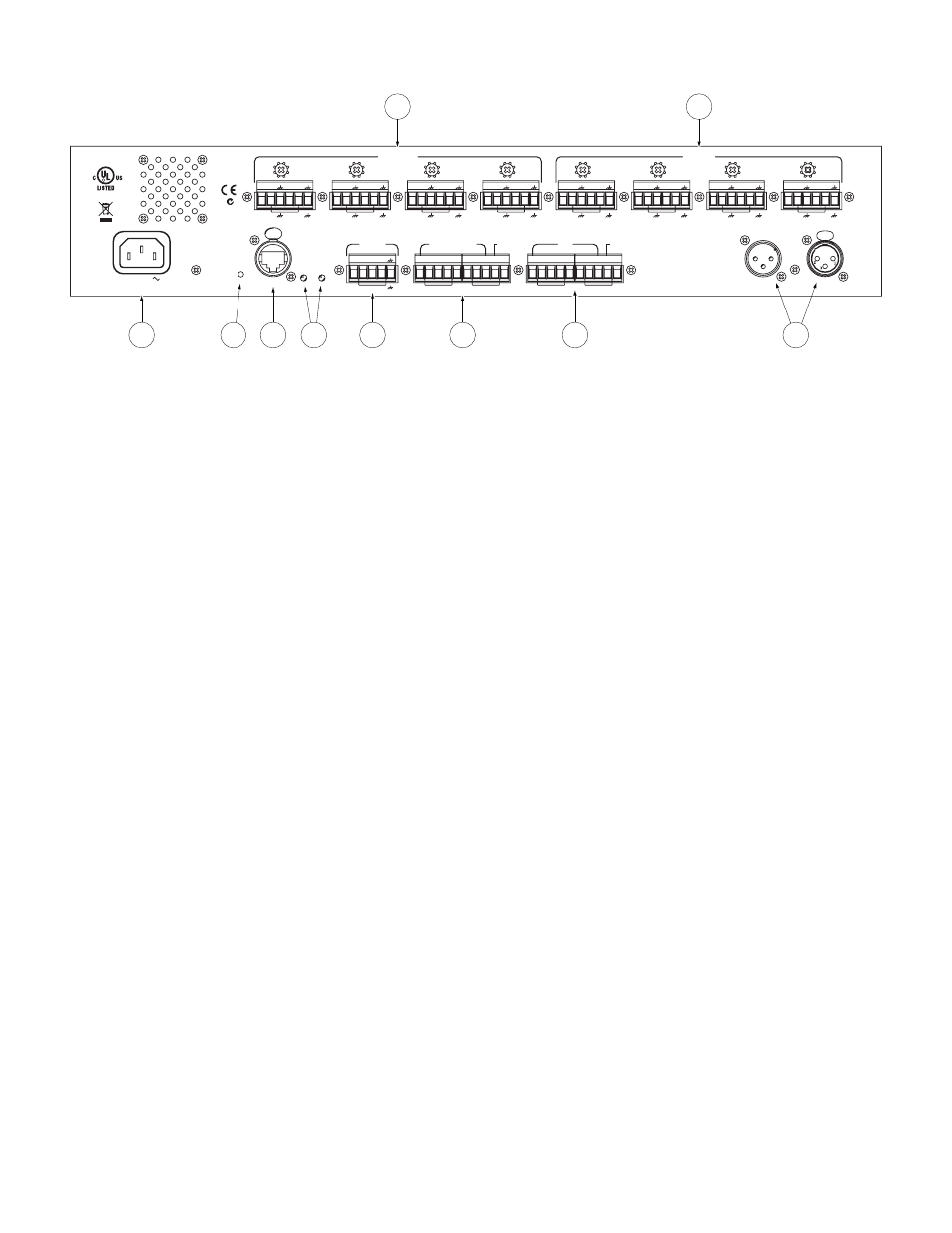

Rear Panel Description

INPUTS

+ –

+ –

+ –

+ –

4

3

2

1

OUTPUTS

+ –

+ –

+ –

+ –

8

7

6

5

+ –

+ –

+ –

+ –

4

3

2

1

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

+ –

8

7

6

5

AES3 OUT

AES3 IN

+12

VERSATILE OUTPUT PORT

OPEN COLLECTOR

1 2 3 4 5

7

6

8

+40 VDC / 100 mA MAX

100 mA

MAX

GND

+12

1 2 3 4 5

7

6

8

GND

+5v /

100 mA

0-5V

REF

1 2 3 4 5

7

6

8

GND

REF

1 2 3 4 5

7

6

8

GND

VERSATILE INPUT PORT

100-240V

55 WATTS

50/60 Hz

FOR CONTINUED

GROUNDING

PROTECTION

DO NOT REMOVE

SCREW

RPM 88

ACN 001 345 482

MADE IN U.S.A.

RANE CORP.

DEFAULT

LAN

10Base-T

LINK

REMOTE INTERFACE PORT

A B +V -V

A B +V -V

(RW 485)

This device complies with Part 15

of the FCC Rules. Operation is

subject to the following two

conditions: (1) this device may not

cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause

undesired operation.

COMMERCIAL AUDIO

EQUIPMENT 24TJ

R

1

10

9

8

7

6

2

3

4

5

1

POWER IEC jack

connects to AC line voltage, 100-240 VAC ±10%.

2

Balanced analog audio Inputs 1 through 8

. Euroblock connectors.

3

Balanced analog audio Outputs 1 through 8. Euroblock connectors.

4

AES3 digital audio Input and Output. XLR female (input) and male (output) connectors.

5

Versatile Input Port provides 8 logic or voltage inputs for remote level control and Preset recall. Euroblock connector.

6

Versatile Output Port provides 8 logic outputs capable of driving small relays, LEDs or other logic inputs. Euroblock connector.

7

RW 485 Port communicates with Rane’s Smart Remotes. A maximum of 280 mA of current is available for powering remotes.

Euroblock connector.

8

LAN and LINK reflect the state of the Ethernet connection. LINK lights solidly when a valid connection to another Ethernet

device (e.g., a PC) is detected. LAN flashes when communicating with another Ethernet device.

9

10Base-T jack accepts a standard Ethernet cable. RJ-45 connector.

0

DEFAULT button recalls Preset 1 when pressed. Holding this button while applying power puts the unit into a special codeload

mode for updating firmware. The letters “CL” appear on the PRESET LED display when the device is in codeload mode.
