Manual-3

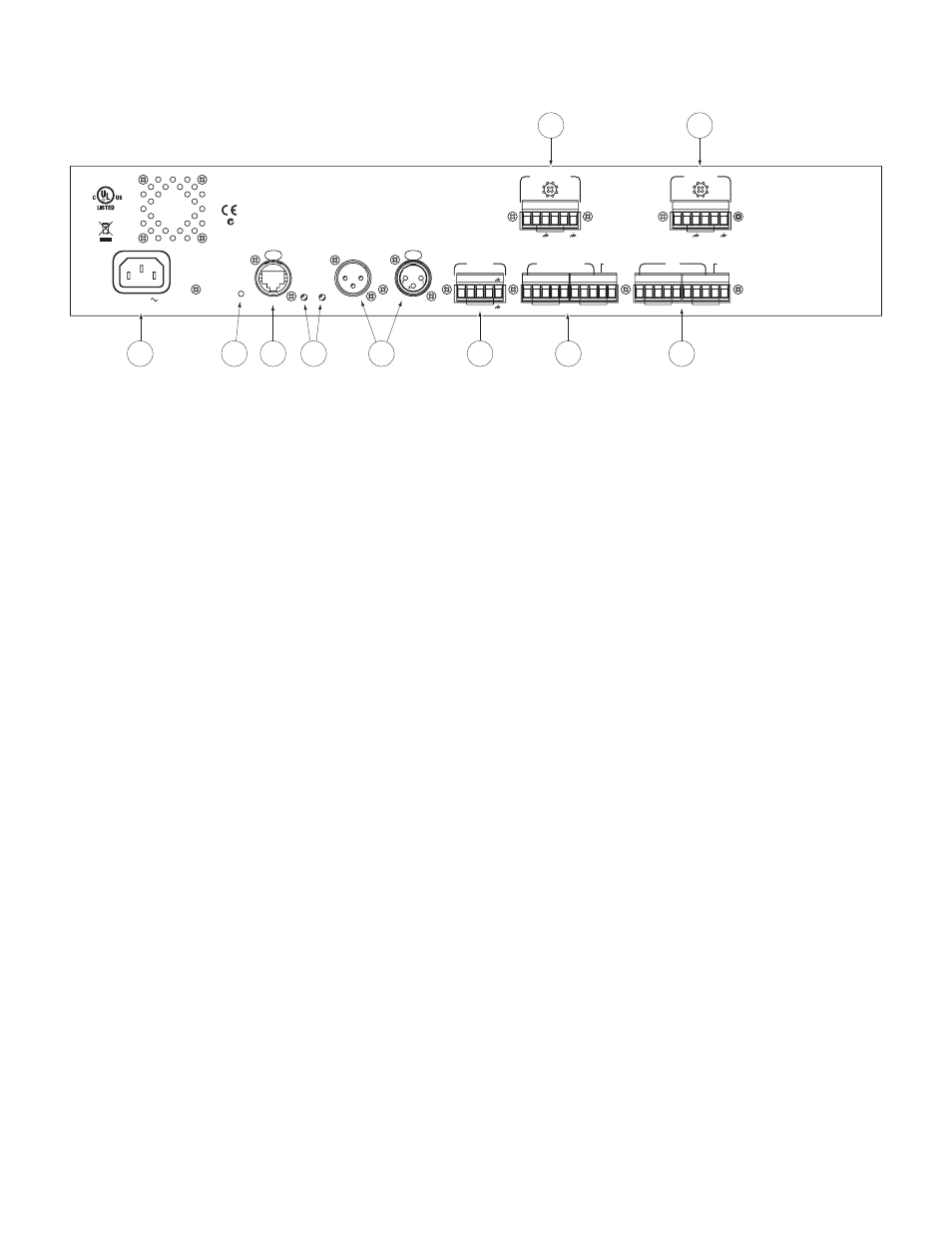

Rear Panel Description
1
POWER IEC jack
connects to AC line voltage, 100-240 VAC ±10%.
2
Balanced analog audio Inputs 1 through 8
. Euroblock connectors.
3
Balanced analog audio Outputs 1 through 8. Euroblock connectors.
4
AES3 digital audio Input and Output.
XLR female (input) and male (output) connectors.
5
Versatile Input Port
provides 8 logic or voltage inputs for remote level control and Preset recall. Euroblock connector.
6
Versatile Output Port
provides 8 logic outputs capable of driving small relays, LEDs or other logic inputs. Euroblock connector.
7
RW 485 Port
communicates with Rane’s Smart Remotes. A maximum of 280 mA of current is available for powering remotes.
Euroblock connector.
8
LAN and LINK
reflect the state of the Ethernet connection. LINK lights solidly when a valid connection to another Ethernet
device (e.g., a PC) is detected. LAN flashes when communicating with another Ethernet device.
9
10Base-T jack
accepts a standard Ethernet cable. RJ-45 connector.
0
DEFAULT button
recalls Preset 1 when pressed. Holding this button while applying power puts the unit into a special codeload
mode for updating firmware. The letters “CL” appear on the PRESET LED display when the device is in codeload mode.
AES3 OUT
AES3 IN
–
REMOTE INTERFACE PORT
+
100-240V
55 WATTS
50/60 Hz
DEFAULT
LAN
10Base-T
LINK
+
+ –
–
+ –
+5v /
100 mA
A B +V -V
A B +V -V
+12
VERSATILE OUTPUT PORT
OPEN COLLECTOR
1 2 3 4 5
7
6
8
+40 VDC / 100 mA MAX
100 mA
MAX
0-5V
GND
+12
1 2 3 4 5
7
6
8
GND
REF
1 2 3 4 5
7
6
8
GND
REF
1 2 3 4 5
7
6
8
GND
VERSATILE INPUT PORT
1
2
2
1
FOR CONTINUED
GROUNDING
PROTECTION
DO NOT REMOVE
SCREW
COMMERCIAL AUDIO
EQUIPMENT 24TJ
R
RPM 22
ACN 001 345 482
MADE IN U.S.A.
RANE CORP.
(RW 485)
INPUTS
OUTPUTS
This device complies with Part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) this device may not
cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
1
10 9
8
7
6
2
3
4
5
