Use this configuration if you have full-range cabinets with passive
crossovers built-in, i.e., no separate speaker inputs for the low and
high drivers.
Connect as shown for a mono subwoofer. Set the 100 Hz FILTER
switch to the OUT position. The front panel LOW/HIGH frequency
control determines the frequency division between the main cabinets
and the mono subwoofer.
PASSIVE 2-WAY WITH MONO SUB

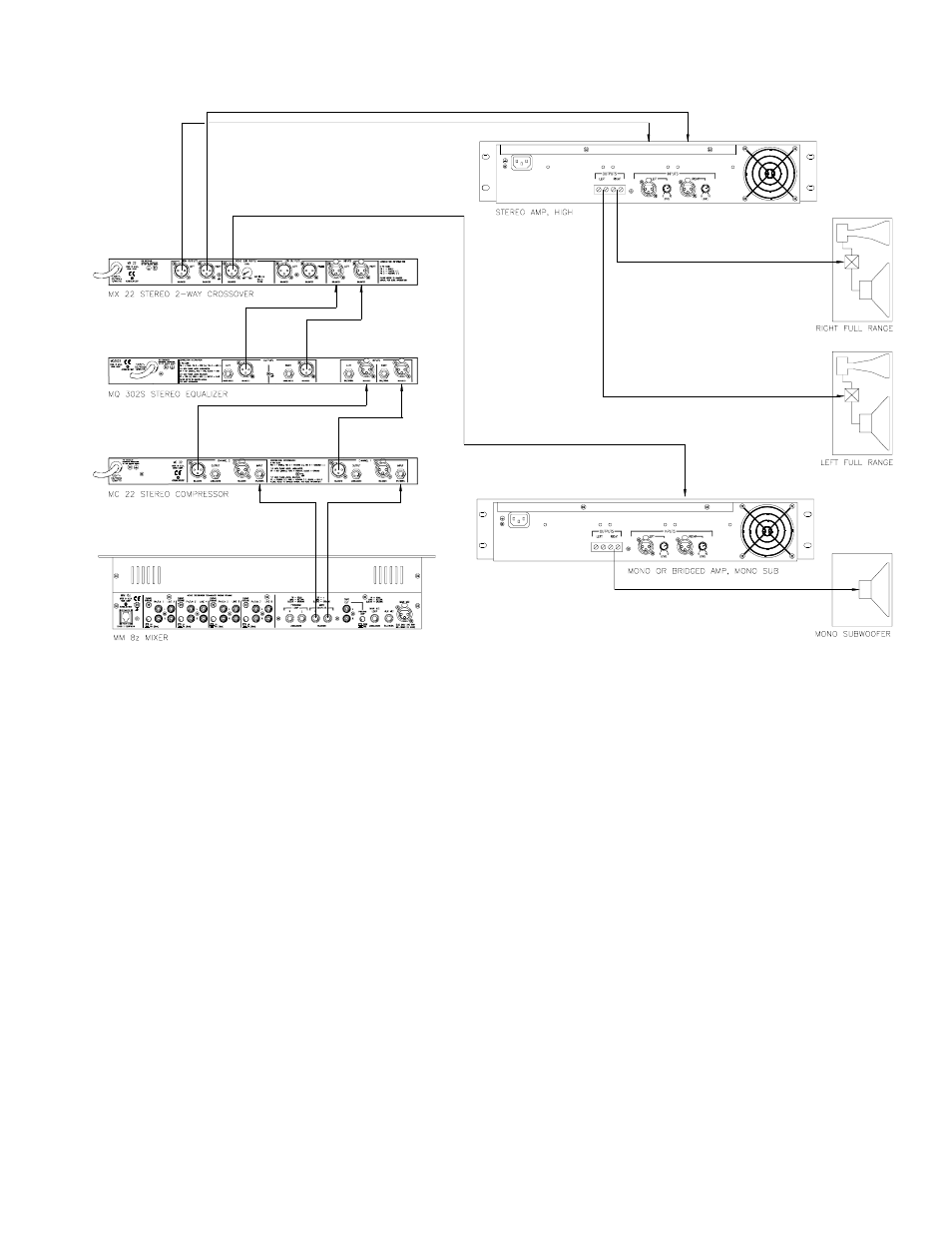

APPLICATION — PASSIVE 2-WAY WITH MONO SUB
