Manual-2

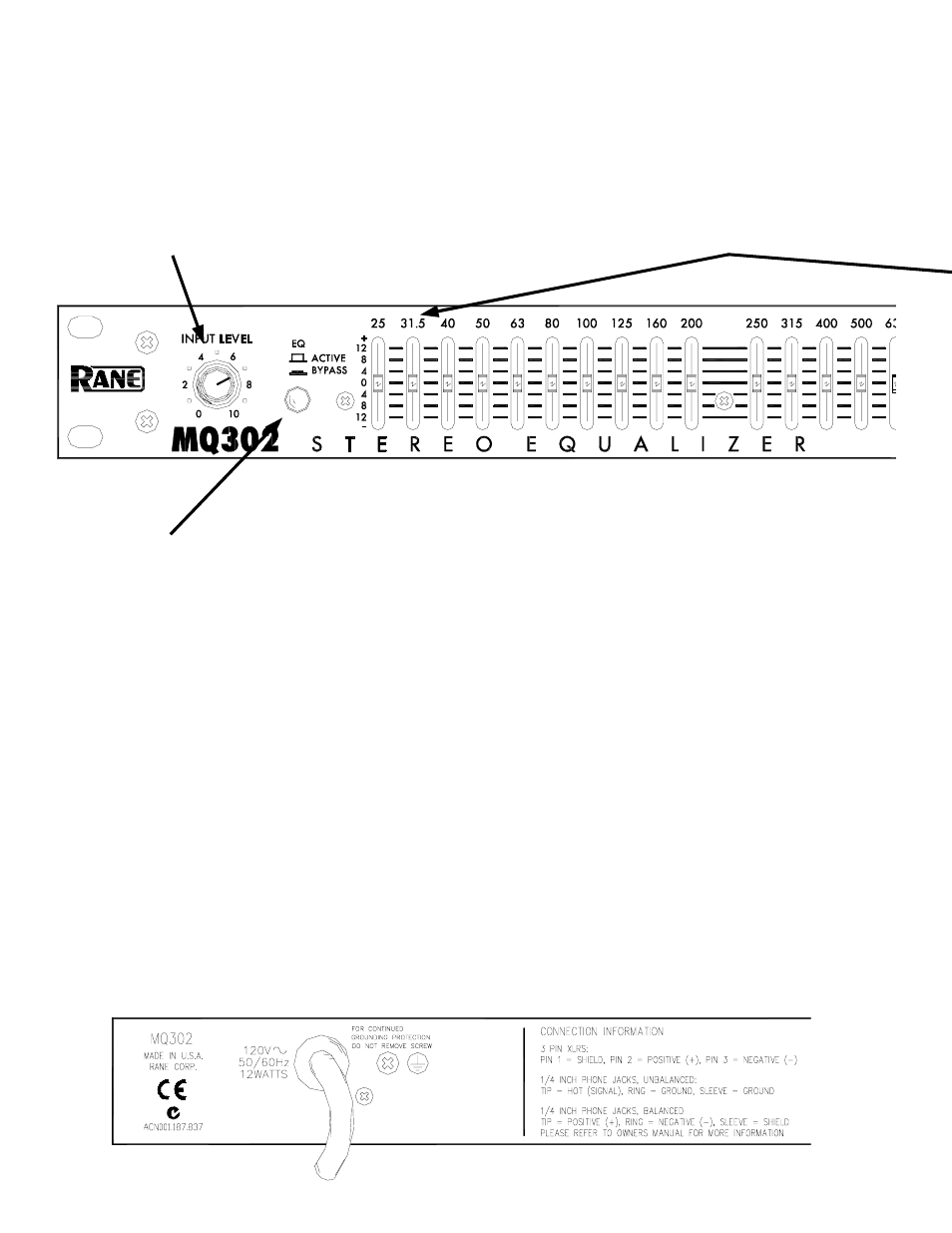

BYPASS switch
When pressed to BYPASS, the filter sliders
have no effect. Since actual unity gain
depends on varying slider settings, use the
BYPASS switch to determine the unity gain
position of the INPUT LEVEL control by
comparing ACTIVE and BYPASS volumes.
Filter level slide controls
Each of these sliders controls the output
level of both Channels of the 30 bandpass
filters. Center position is grounded for
guaranteed flat response.
Cable Wiring
In agreement with IEC and AES/ANSI
standards, XLR wiring convention is pin 2
Positive (hot), pin 3 Negative (cold), and
pin 1 Signal ground (for unbalanced use).
Pin 1 and the connector case or shell are
tied to chassis ground.
INPUT LEVEL control
This controls the overall level. +6 dB gain is
reached at “10” with all sliders centered at
0 dB (see BYPASS switch below).
