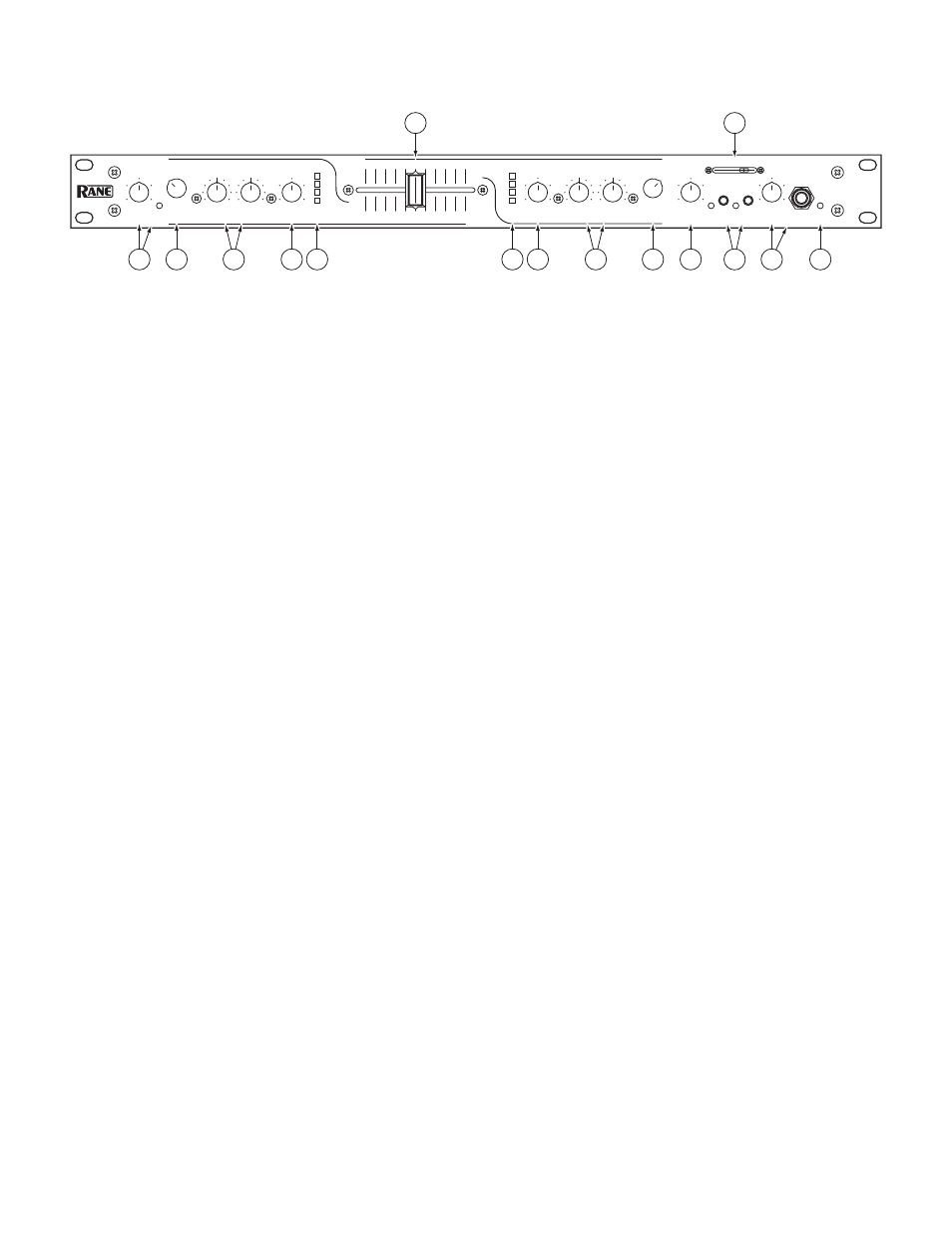

FRONT PANEL DESCRIPTION

1

MIC LEVEL control:

Adjusts the Level of the MAIN MIC Input. The OL (overload) indicator lights when the maximum mic

level has been reached, 3 dB before clipping. If this lights up, either turn the MIC LEVEL down, or stop yelling.

2

Program INPUT selectors:

Provide Input selection between the 2 Phono and 2 Line Inputs for each of the Program A or Pro-

gram B Channels.

3

Program LOW and HIGH EQ level controls:

adjust the equalization for each of the Program Channels. Pointing these controls

straight up at their center detents takes the tone controls out of the path. This is not designed to be the only equalizer in the sys-

tem, this is intended to provide EQ between varying program materials. We recommend an external graphic equalizer for the best

system sound, connected between the MASTER OUTPUTS and the amplifier.

4

Program LEVEL controls:

set the volume of each Program Input, as you would expect! These controls are pre-Crossfader, so

both Program Level controls also depend on the Crossfader setting(see 6).

5

Program meter:

This four-segment meter shows signal presence (at -24), optimum signal level (at around 0), and a warning to

turn down the associated LEVEL control if the +12 indicator lights up.

6

Active Crossfader:

Controls the mix of Program A and B Levels in a logical manner. When the Crossfader is all the way left, only

Program A is heard. When it's all the way right, only Program B is heard. When it's right in the middle, both Program A and B

are mixed together equally. This is an Active Crossfader™ which uses a VCA to deliver an extended life and reduced travel noise,

but to insure trouble-free operation, see Fader Cleaning on page Manual-4.

7

HOUSE LEVEL control:

Adjusts the Output Levels of the MAIN OUTPUTS.

8

Phone CUE switches:

Select Program A or B in any combination. The associated yellow indicator lights when a CUE is activated

and pressed in. Depressing a button sends PGM signals to the CUE side of the PAN control. For example, when the Crossfader

is to the left (playing PGM A to the House), listen to CUE B (PGM B) on the headphones to audition, match beats or prepare its

starting point.

9

Phone PAN control:

Changes the relative levels of the Cue and Program mixed together in stereo for the headphones. PGM

follows the Main (House) Output; Cue is determined by the CUE switches and only goes to the headphones. Adjust this control

anywhere between Program and Cue.

0

PHONE LEVEL and headphone jack:

As you guessed, plug your headphones in here and adjust the overall volume with the

LEVEL control.

q

POWER indicator:

Illuminates to let you know that the MP 2 is plugged in and ready to go.
