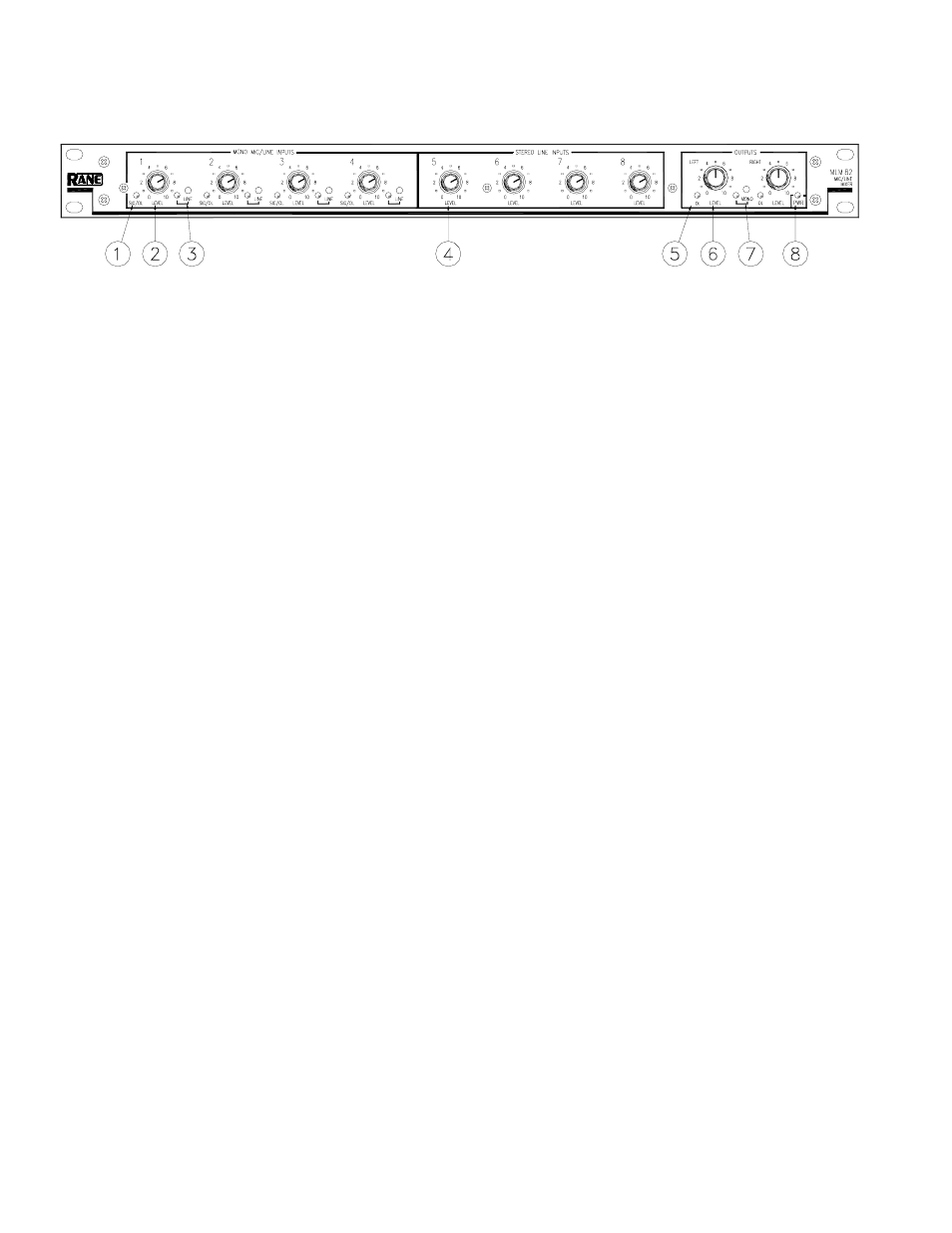

FRONT PANEL DESCRIPTION
ቢ SIGnal present/OverLoad LED. This bi-color LED lights green for a -30 dBu signal, and turns red when the Input is
within 3 dB of clipping.
ባ MONO MIC/LINE INPUT LEVEL controls 1-4 determine the amount of microphone or line signal to be delivered at
equal levels to both Outputs.
ቤ LINE/Mic Input selectors switch the sensitivity and input impedance for either a microphone or line input. An illuminated
LED indicates that LINE is chosen, and Phantom Power is deactivated for that Input. Conversely, a dark LED indicates that
the Input is set for mic level, and Phantom Power (if activated, see Rear Panel
ባ) is enabled for this Input. Use a small
probe (such as a #0 Phillips screwdriver) to actuate the switches.
ብ STEREO LINE INPUT LEVEL controls 5-8 determine the amount of stereo or mono line Input to be delivered to the
Outputs.
ቦ OUTPUT OverLoad LED illuminates within 3 dB of an approaching overload condition. To avoid this, the associated
OUTPUT LEVEL control may be decreased, or the problem-causing individual Input may be decreased.
ቧ LEFT and RIGHT OUTPUT LEVEL controls are either Left and Right Output Level controls, or zone 1 and zone 2
Level controls from mono sources.
ቨ MONO switch mixes the Left and Right channels together with the ratio set by the two OUTPUT LEVEL controls. When
active, the associated LED lights, and the Left and Right Output connectors have exactly the same level.
ቩ POWER LED is lit whenever adequate power is applied to the unit.
