Manual-

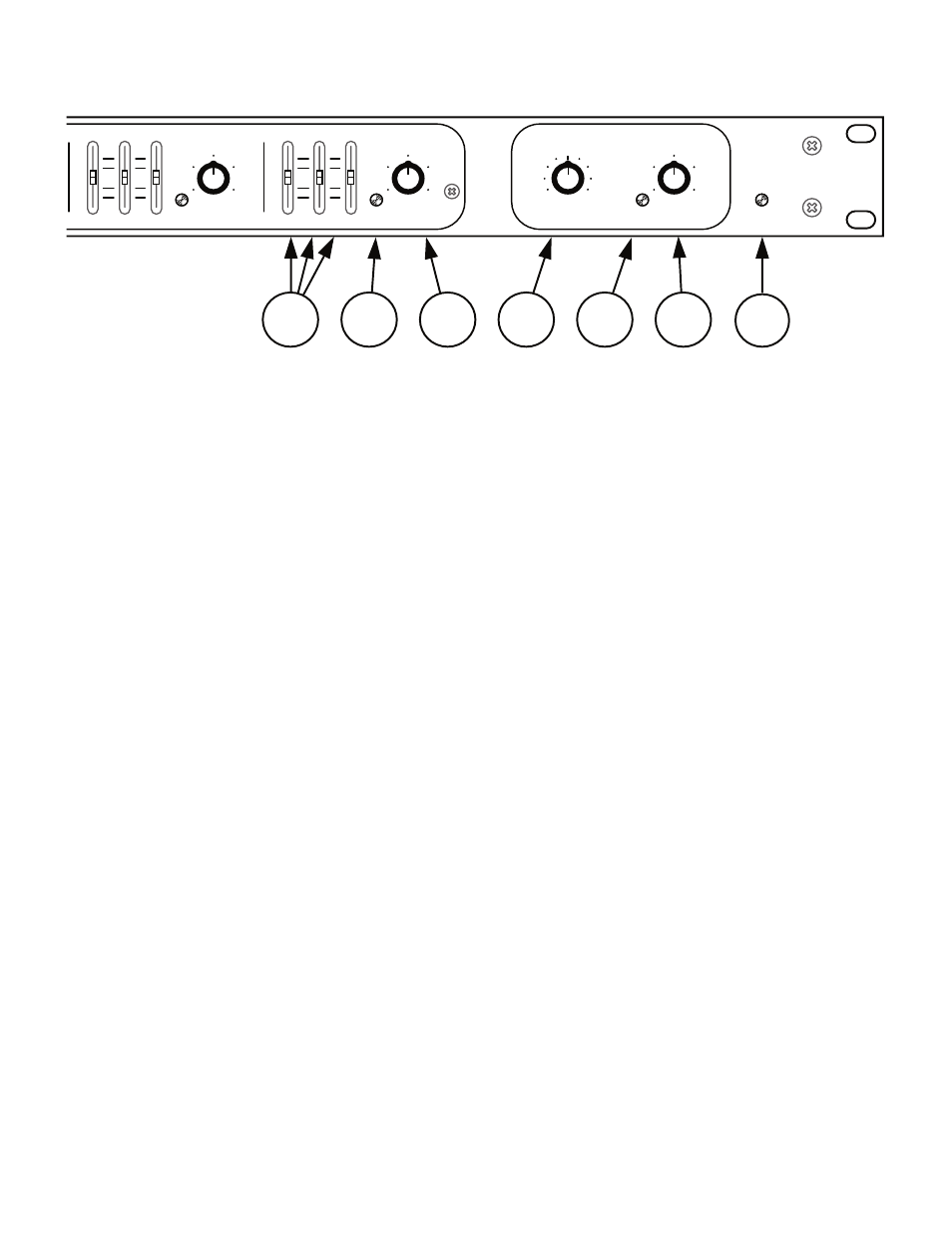

FRONT PANEL DESCRIPTION

1

LO / MID / HI tone controls

on each input channel are Accelerated-Slope™, delivering more control, constant phase response,

and less interaction between bands than normal tone controls. The LO/MID corner frequency is 300 Hz. The MID/HI corner

frequency is 4 kHz. Each band allows 6 dB of boost and full cut.

2

Input Overload indicators

should remain off during the loudest expected program material. If you see one light up, turn down

the rear panel Input GAIN.

3

Input LEVEL controls

set the volume for each channel. These work along with the rear panel GAIN controls for maximum

signal. To achieve the smoothest mix possible, set the GAIN control on the rear panel to allow near full range operation of the mix

Level control without lighting up the Input Overload indicator.

4

EFFECTS DRY/WET control

adjusts the mix between the sum of the four Inputs (DRY) and the Effects Return jack (WET).

When used with an external effects processor, the DRY/WET pan control adjusts how much processed, versus unprocessed, signal

appears in the final output mix. See the EFFECTS LOOP section on page Manual-4 for more uses.

5

Overload indicator

is located before the Output Level control. Therefore, the Output Level control cannot be used to correct an

Output Overload condition. An Output Overload condition is corrected by turning down one or more of the Input LEVELs. This

indicator should remain off.

6

OUTPUT LEVEL control

determines the level going to all four Outputs.


7

POWER indicator.

When the yellow LED is lit, the MLM 42 is ready to go.

1

2

3

4

5

6

7

OFF

0

+6

OFF

0

+6

OFF

0

+6

OFF

0

+6

MIC/LINE MIXER

10

0

2

4

8

6

10

0

2

4

8

6

10

0

2

4

8

6

OUTPUT

EFFECTS

LEVEL

WET

DRY

POWER

OL

LO

HI

MID

LEVEL

OL

3

LO

HI

MID

LEVEL

OL

4

MLM 42
