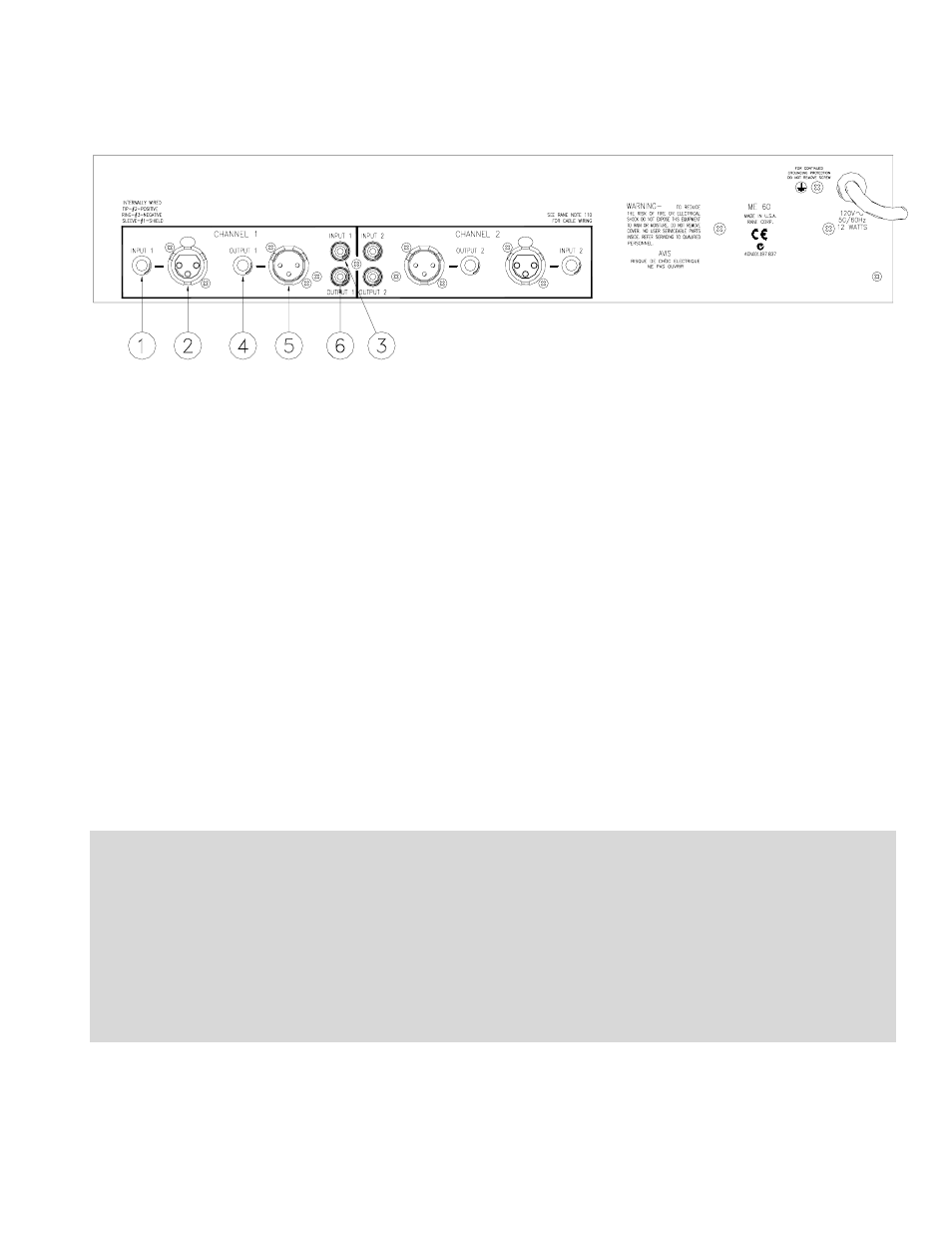

REAR PANEL DESCRIPTION
ቢ ¼" INPUT connector. This ¼" tip-ring-sleeve (TRS) connector parallels the XLR connector described below. Tip is
positive, ring is negative and sleeve is shield.
ባ XLR INPUT connector. Pin 2 is positive, pin 3 is negative and pin 1 is shield. For unbalanced operation, use pin 2 as hot
and pin 1 as return. It is not necessary to connect pin 3.
ቤ RCA Phono INPUT connector provides for convenient hook-up to unbalanced products.
ብ ¼" OUTPUT connector. This ¼" TRS connector parallels the XLR connector described below. As before, tip is hot, ring is
cold and sleeve is shield.
ቦ XLR OUTPUT connector. Pin 2 is positive, pin 3 is negative and pin 1 is shield.
ቧ RCA Phono OUTPUT connector provides convenient hook-up to unbalanced products.
CHASSIS GROUNDING
If after hooking up your system it exhibits excessive hum or buzzing, there is an incompatibility in the grounding
configuration between units somewhere. Your mission, should you accept it, is to discover how your particular system
wants to be grounded. Here are some things to try:
1. Try combinations of lifting grounds on units that are supplied with ground lift switches or links.
2. If your equipment is in a rack, verify that all chassis are tied to a good earth ground, either through the line cord
grounding pin or the rack screws to another grounded chassis.
3. Units with outboard power supplies do NOT ground the chassis through their line cords. Make sure these units are
grounded either to another chassis which is earth grounded, or directly to the grounding screw on an AC outlet cover by
means of a wire connected to a screw on the chassis with a star washer to guarantee proper contact.
IMPORTANT NOTE
