OPERATORS MANUAL ME 15B
microGRAPHIC EQUALIZER
QUICK START
If this is your first equalizer, please do yourself and your
speakers a favor and read the complete manual. “An ounce of
prevention...,” and all that.
You may use either the XLR or ¼" TRS connectors for
Inputs or Outputs. Hook-up is intuitive. Just follow the silk-
screened instructions on the rear of the unit. Polarity convention
is per IEC/ANSI/AES standards of pin 2 positive, pin 3 negative
and pin 1 shield. The ME 15B does not invert the signal. Only
connect one INPUT type per channel. The XLR and ¼" TRS
WEAR PARTS: This product contains no wear parts.

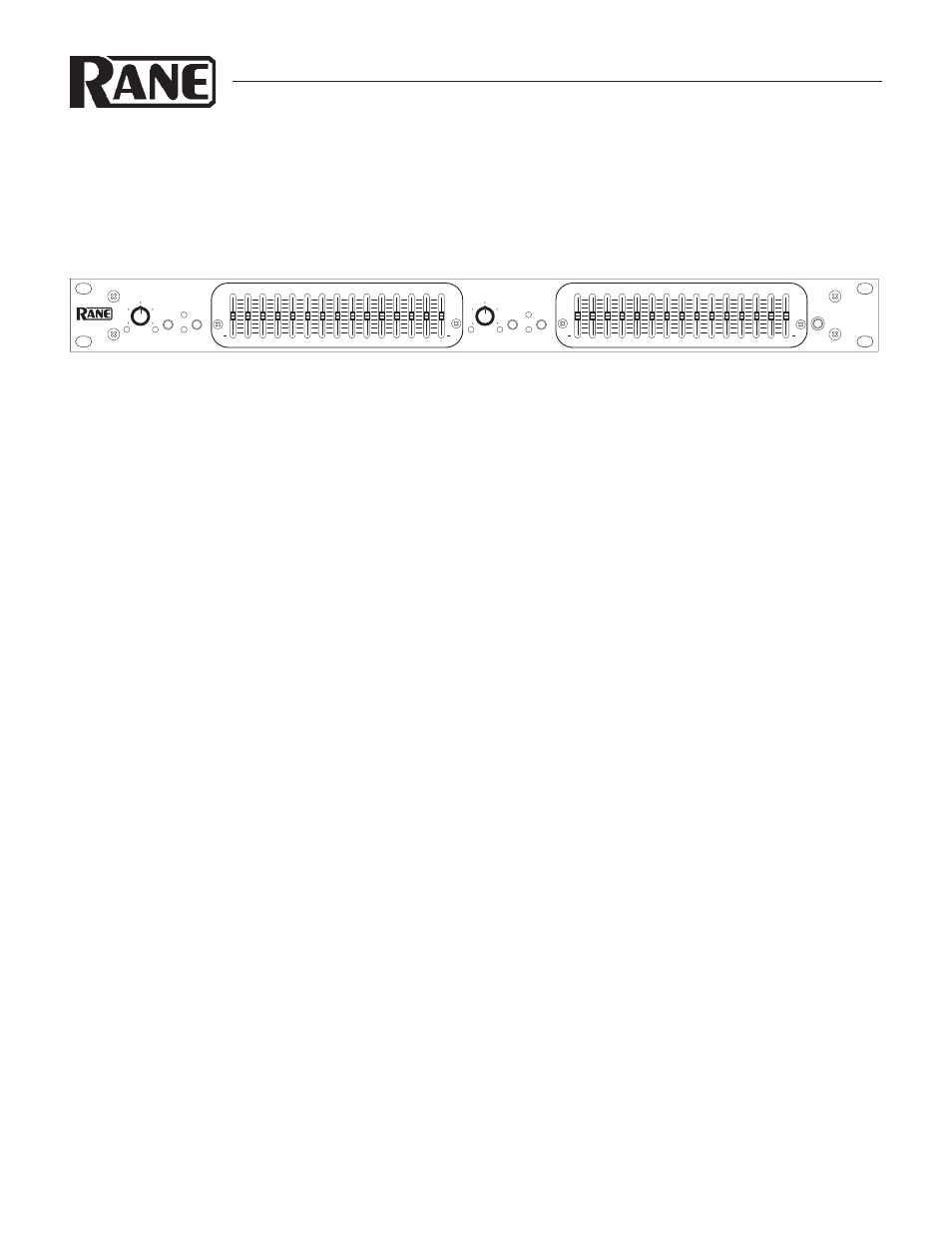

LEVEL LEVEL OL OL BYPASS BYPASS RANGE RANGE POWER
CHANNEL 1 630 100 25 40 63 250 160 400 6.3k 1k 1.6k 2.5k 4k 16k 10k 630 100 25 40 63 250 160 400 6.3k 1k 1.6k 2.5k 4k 16k 10k
ME 15B
CHANNEL 2
±12 ±12
12 •
6
•
•
•
6
12
0
+
12 •
6
•
•
•
6
12
0
+
10 0
2
4
8
6
10 0
2
4
8
6
±6 ±6
MICROGRAPHIC
EQUALIZER
6 •
3
•
•
•
3
6
6 •
3
•
•
•
3
6
0
+
0
+
Inputs do not sum, don’t use both, pick one or the other. You
may, however, use both types of OUTPUTS simultanesously if
desired.
Anyone familiar with other graphic equalizers finds the ME
15B just as familiar. Setting curves is as easy as it is on all Rane
graphics thanks to our innovative constant-Q circuitry. If you
feel you want more information on setting up your curves, please
read on.
If you are familiar with equalizers, then hook-up, plug-in,
turn-on and go!
